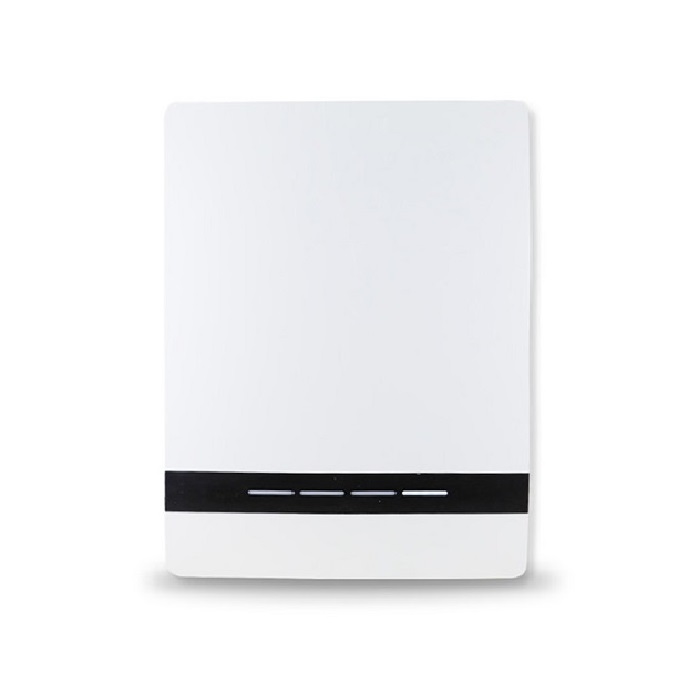

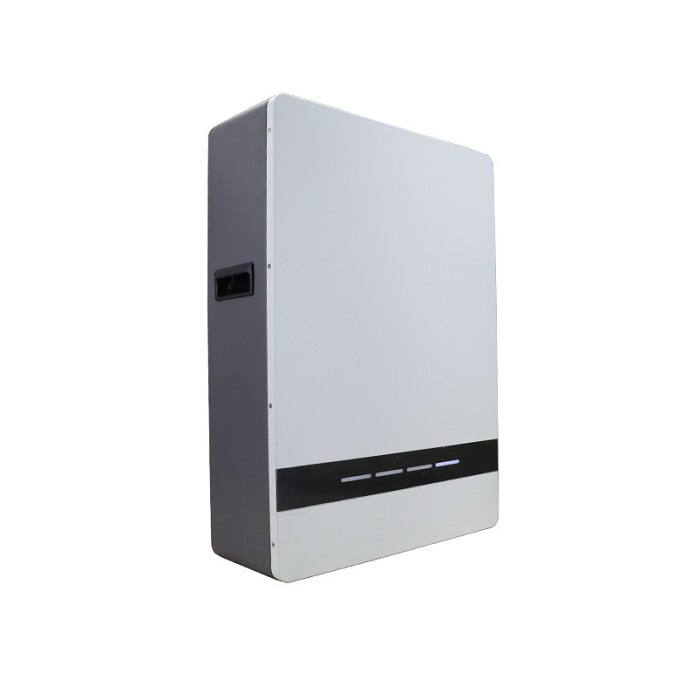

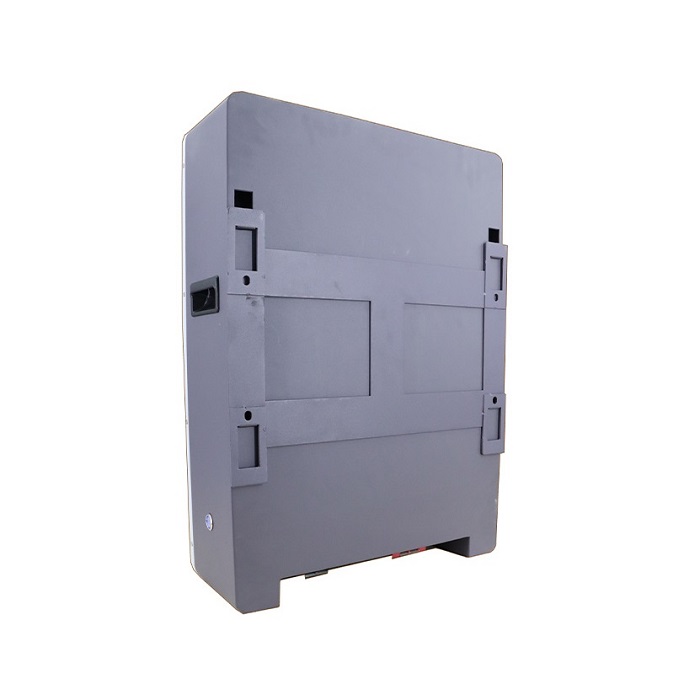

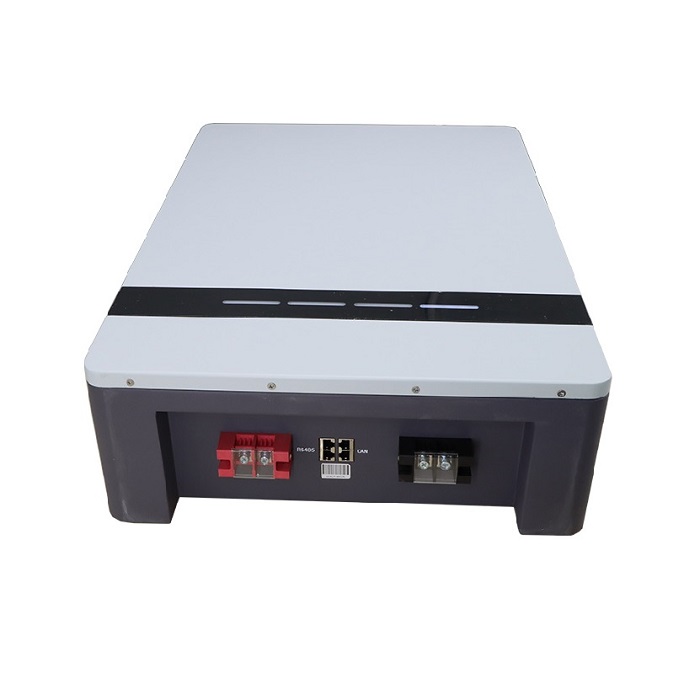

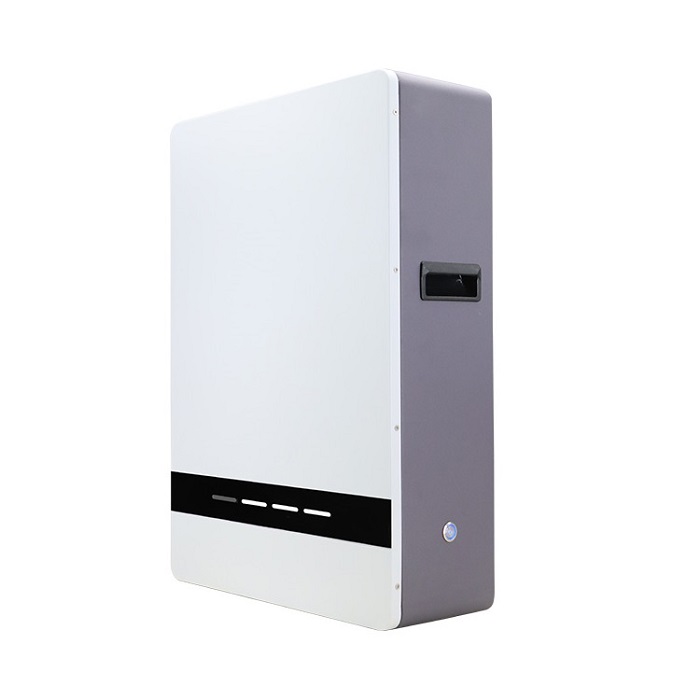

10KWH Power Wall 48V 200Ah LiFePO4 Battery Pack

48V Series Power Wall

Product Model

PW5000

PW10000

Battery Cell Parameters

Battery Cell Type

LiFePO4

LiFePO4

Nominal Voltage

3.2V

3.2V

Nominal Capacity

100Ah

200Ah

Voltage Rage

2.8V-3.65V

2.8V-3.65V

Certification

MSDS/ UN38.3/ UL1973/ IEC62619

Battery Pack Parameters

Nominal Voltage

51.2V

51.2V

Nominal Capacity

100Ah

200Ah

Energy by kWh

5.12kWh

10.24kWh

Serial/Parallel

16S1P

16S1P

Discharge Voltage

40V-58.4V

40V-58.4V

Charge Voltage

54.4V-55.2V

54.4V-55.2V

Floating Charge Voltage

53.6V-54.4V

53.6V-54.4V

Max. Charge Current

50A

100A

Max. Continuous Discharge Current

100A

100A

Dimensions (L*W*H)

680*485*190mm

680*485*250mm

Weight (About)

45kgs

89kgs

Housing

Metal Case

Cycle Life

>5000 cycles @ 80% DOD

Design Life Span

>10 years

Charge Temperature

0 - 55 °C

Discharge Temperature

(-)10 - 55 °C

IP Rating

IP20

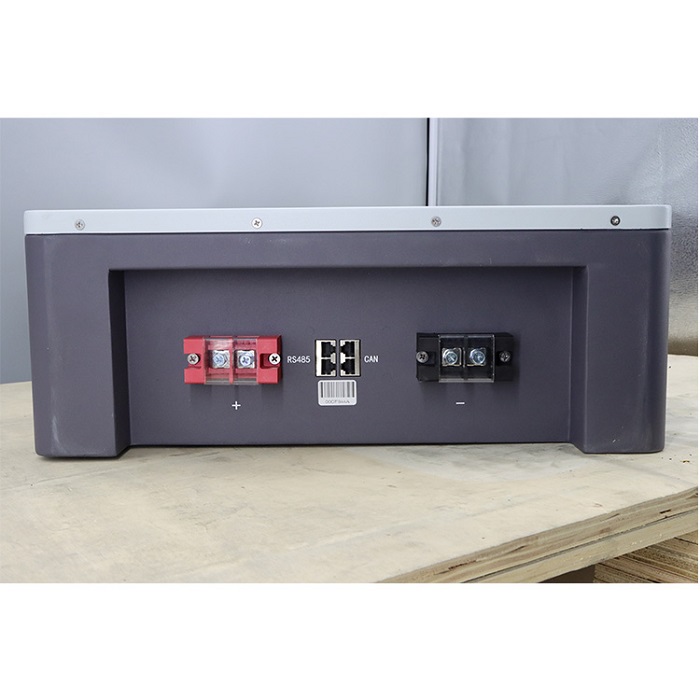

Communication Interface

CAN2.0/RS485/232

Support Connection in Parallel

Max. 15pcs

BMS Protection Functions

Over charge, Over discharge, Over current, Over Voltage, And Temperature Protection

Applications

Solar/Wind Energy Storage/Communication Backup/ Household and Commercial Energy Storage System/ Power Station, etc.

If Support OEM/ODM Service

YES
