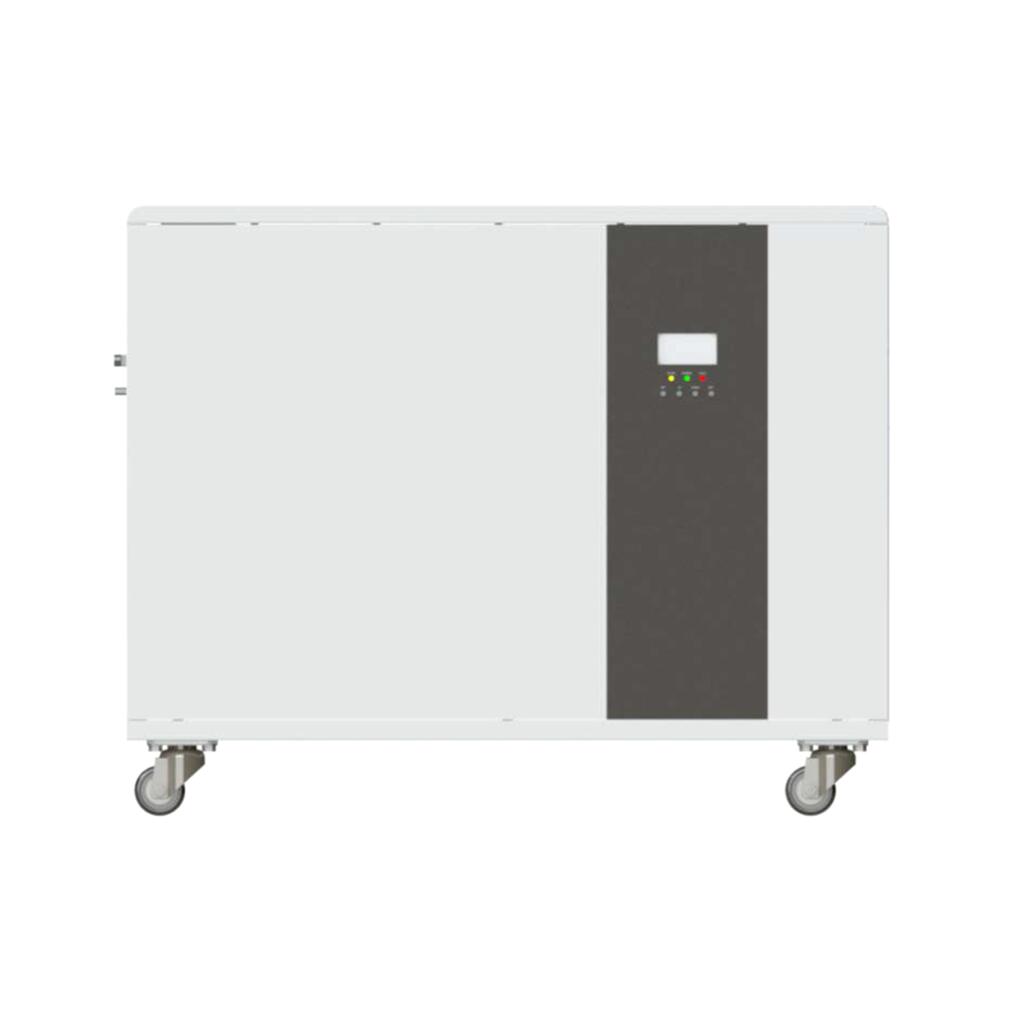

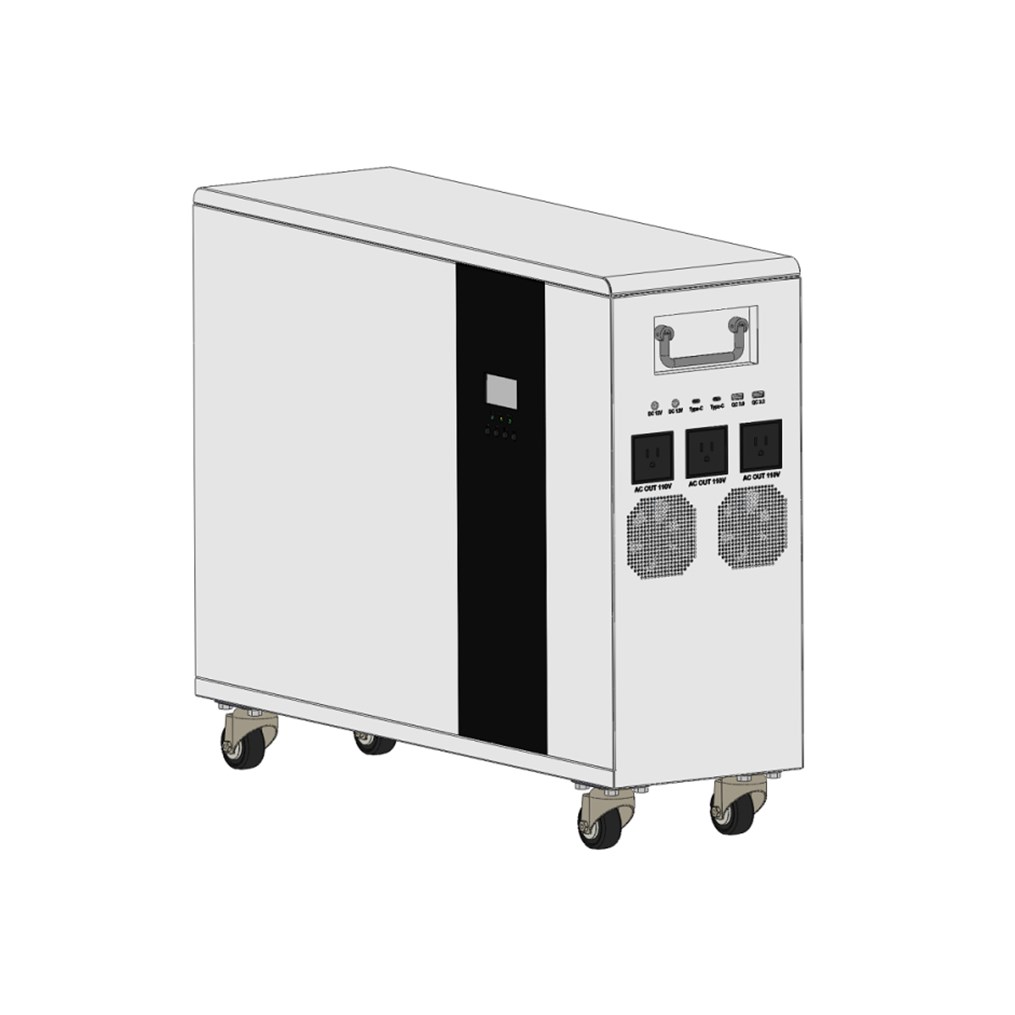

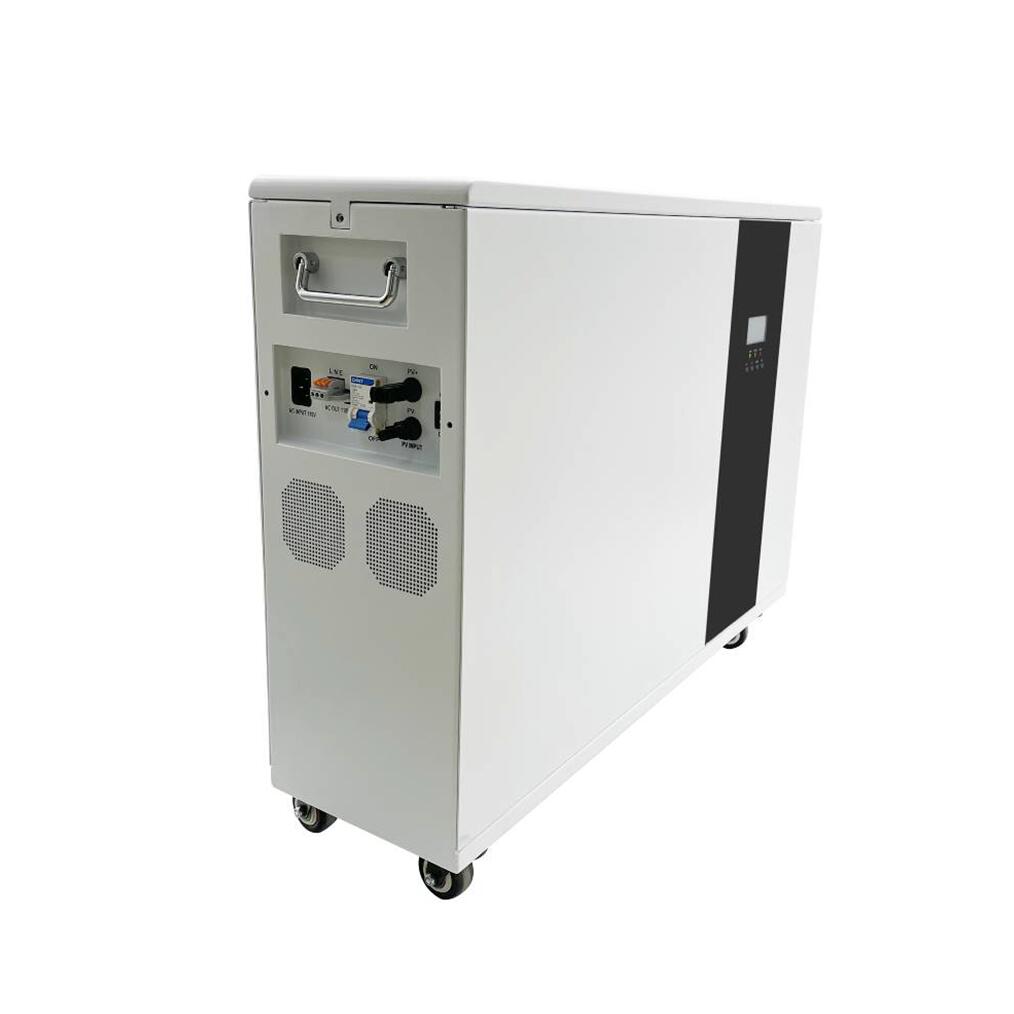

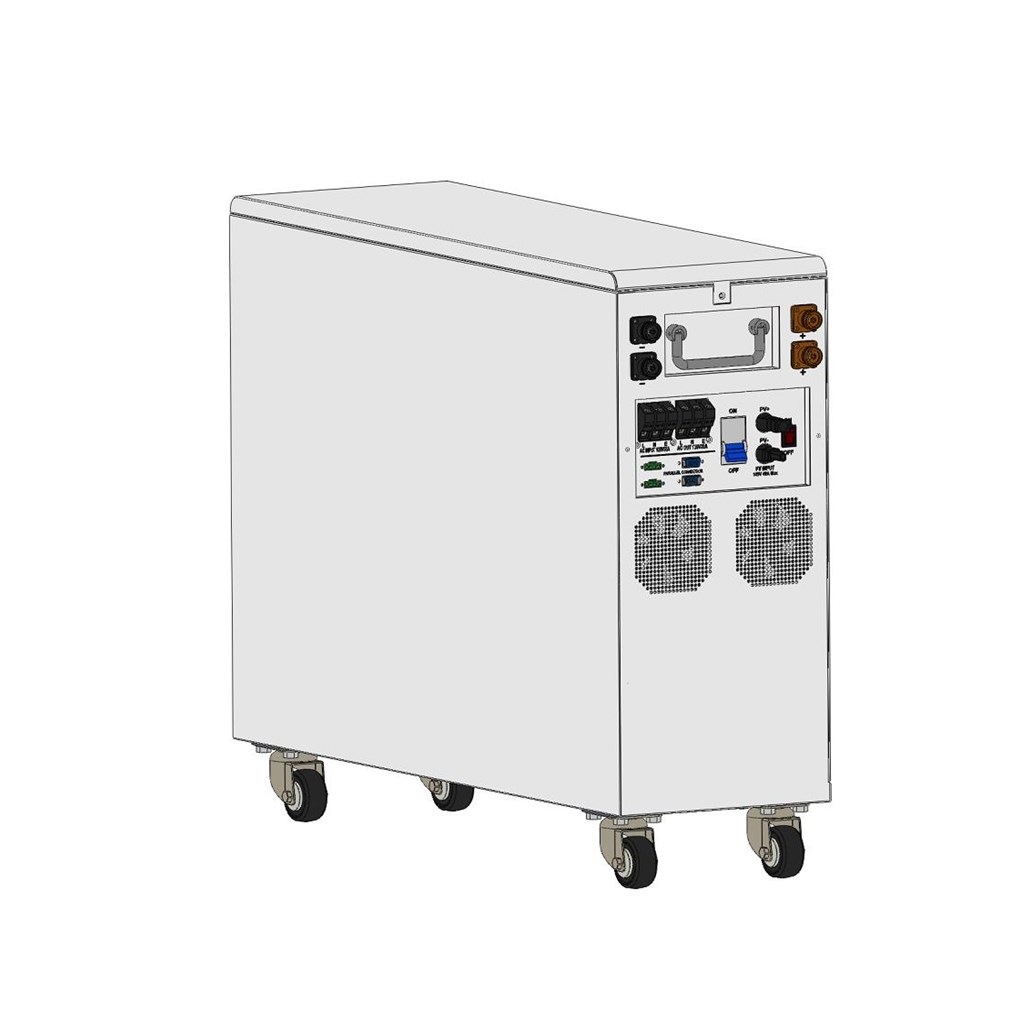

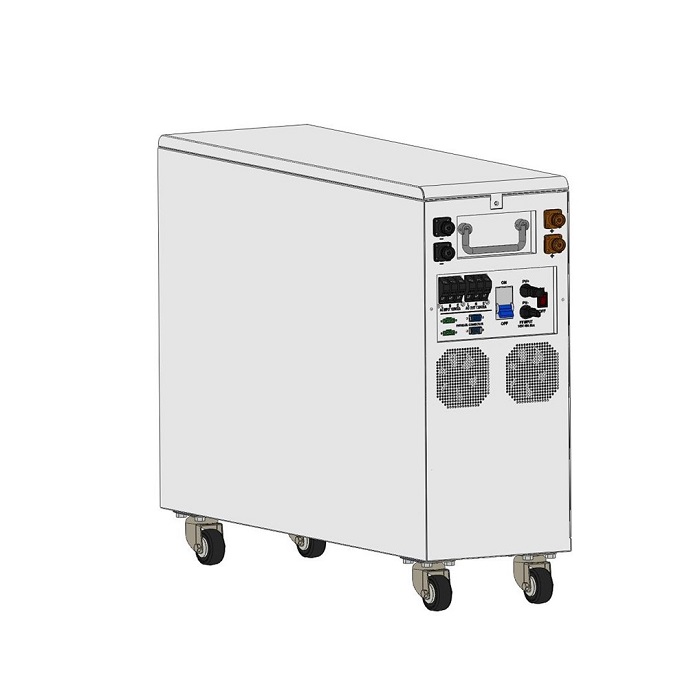

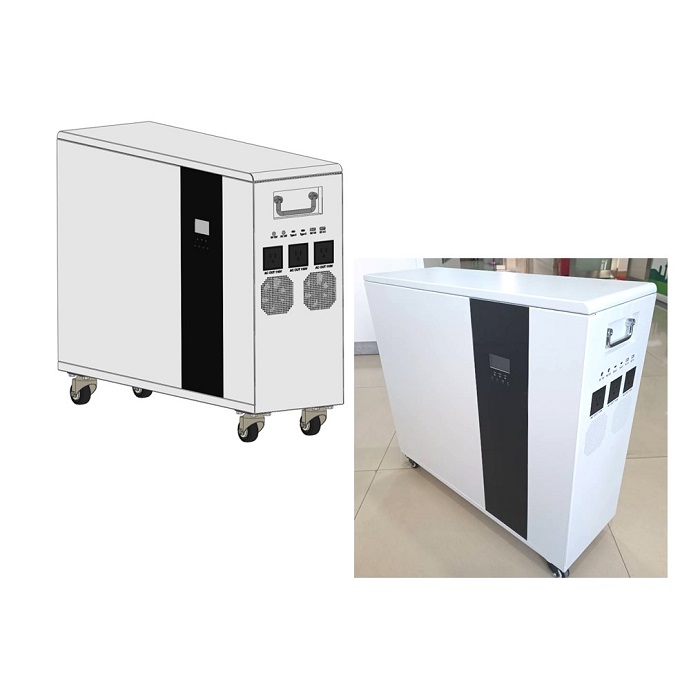

10kwh All In One System with 5KVA Inverter LiFeP04 48V 200Ah

10kwh All In One System with 5KVA Inverter LiFeP04 48V 200Ah

Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Inverter: 5KVA
MPPT: Built-in
Product description: 10kwh All In One System with 5KVA Inverter LiFeP04 48V 200Ah with MPPT Built In
INQUIRY

10kwh All In One System with 5KVA Inverter LiFeP04 48V 200Ah

Introduction:

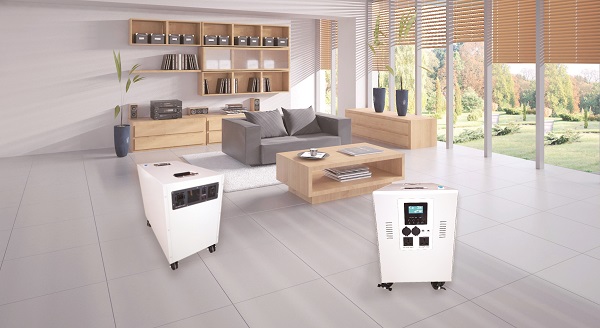

All-In-One Energy Storage System is a removable residential solar storage battery bank which can be operated under off grid. There is an inverter and PV systems built inside to form an Energy Storage System (short for ESS). The main functions are to store power generated by PV and power your home appliances. Our Energy Storage System can provide backup power for household during blackouts, reduce electricity bill and protect environment by consumption of solar energy.

Specification:

Model	MP01	MP02	MP03
Electrical Characteristics
Battery Type	Lithium Iron Phosphate (LiFePO4) Battery
Nominal Voltage	25.6V	51.2V	51.2V
Nominal Capacity	200Ah	200Ah	100Ah
Minimum Capacity	200Ah	200Ah	100Ah
Energy (kWh)	5.12kWh	10.24kWh	5.12kWh
Cycle Life	6000+ cycles
Months Self Discharge	<3%
Resistance	≤20 mΩ @ 50% SOC
Efficiency of Charge	100% @0.5C
Efficiency of Discharge	96~99% @0.5C
BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Bluetooth	Bluetooth APP 5.0
Max. Modules in parallel	3pcs (Inverter AC in parallel)	6pcs (Inverter AC in parallel)	3pcs (Inverter AC in parallel)
Charge Parameters
Charge Voltage	28.8V-29.2V	56.8V-58.4V	56.8V-58.4V
Charge Mode	(CC/CV)	0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Recommend Charge Current	40A	40A	20A
Max. Charge Current	60A	60A	40A
BMS Charge Voltage Cut-Off	30 V (2 s)	60 V (2 s)	60 V (2 s)
Reconnect Voltage	28.4 V	56.8 V	56.8 V
Balancing Voltage	27.2V	54.4V	54.4V
Discharge Parameters
Max Continuous Discharge Current	150A	150A	100A
Peak Discharge Current	180A (10S)	180A (10S)	180A (10S)
BMS Discharge Current Cut-Off	450 A (320m s)	450 A (320m s)	350 A (320m s)
Recommend Low Voltage Disconnect	21.6V	43.2V	43.2V
BMS Discharge Cut-off Voltage	20V (2S)	40V (2S)	40V (2S)
Reconnect Voltage	21.6V	43.2V	43.2V
Short Circuit Protection	200-600 µs	200-600 µs	200-600 µs
Environmental
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-10 ℃ to 35 ℃ (14F to 95F) @60±25% Relative Humidity
BMS High Temperature Cut-Off	75 ℃ (167 °F)
Reconnect Temperature	65 ℃ (149 °F)
Enclosure Protection (IP Class)	IP30
Mechanical
Shell Material	SPCC Metal Case	SPCC Metal Case		SPCC Metal Case
Approx. Dimensions	750X230x525mm (29.53 x 9.05 x 20.66 inch)	750 x255 x 635 mm (29.52 x 10.03 x 25.00 inch)		750X230x525mm (29.53 x 9.05 x 20.66 inch)
Approx. Weight	73kgs (160.9 lbs )	105kgs (231.4 lbs )		73kgs (160.9 lbs )

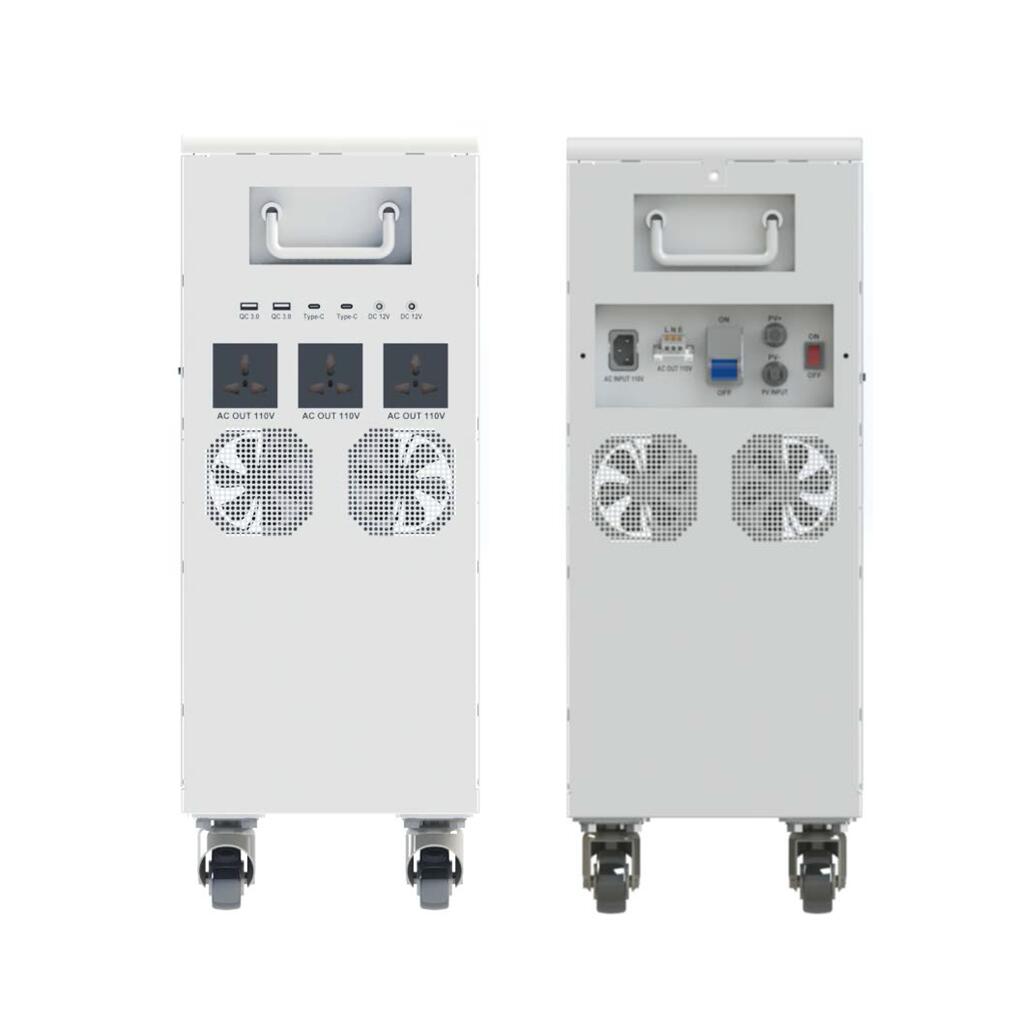

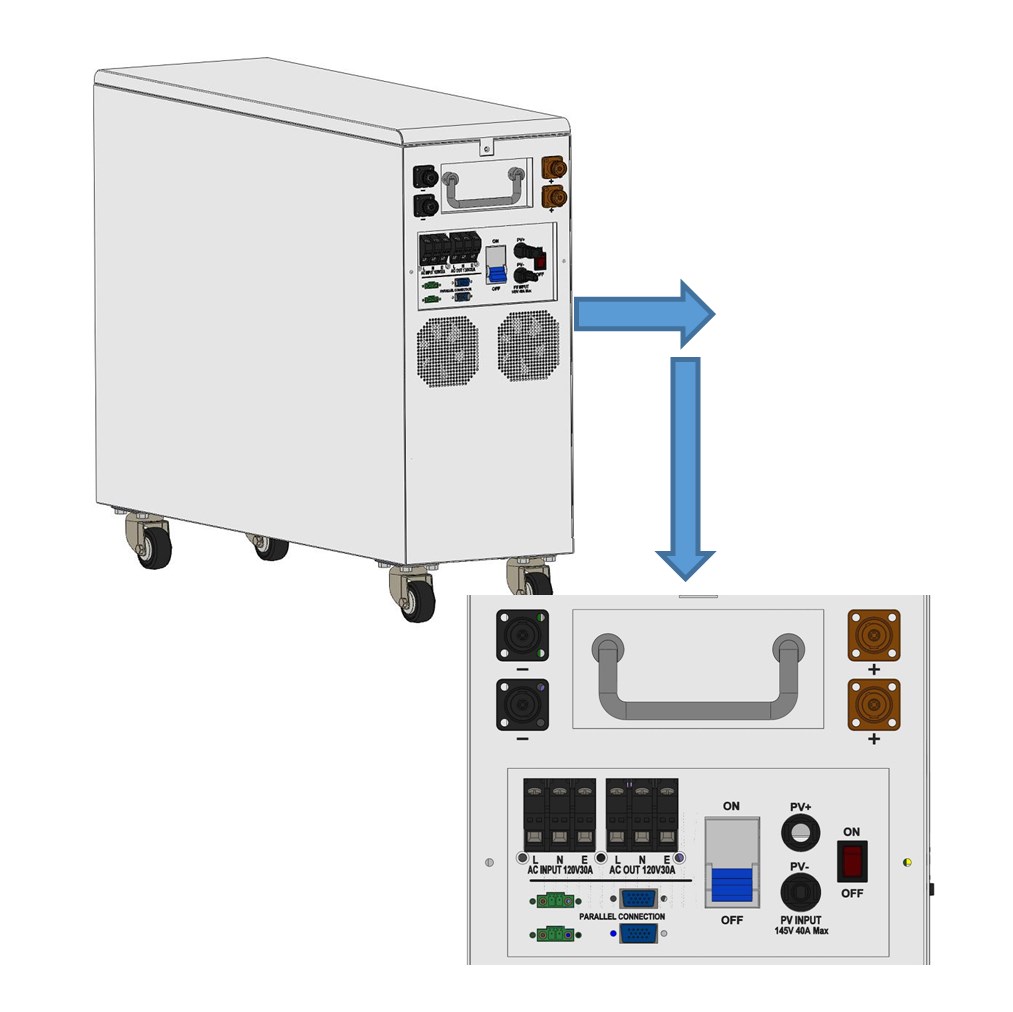

Input & Output
AC Input Voltage	AC 220V 50HZ / AC110V 60HZ	AC 220V 50HZ / AC110V 60HZ
AC Output Voltage	AC 220V 50HZ / 110V 60HZ / 15A Max	AC 220V 50HZ / 110V 60HZ / 15A Max
AC Charge Current	40A Max	60A Max
AC Power	3000W(220V) / 3000W(110V)	5000W(220V) / 3500W(110V)
AC Peak Power	6000W(220V) / 6000W(110V)	8000W(220V) / 4000W(110V)
Highest conversion rate	88-92%	88-91%
Solar panel power	30-100V 1400W Max	60-145V 4200W Max
Solar charging current	60A Max	80A Max
Solar Charge	Built-in MPPT	Built-in MPPT
Waveform	Pure sine wave	Pure sine wave
USB-A	QC3.0	QC3.0
USB-B	Type-C 18W Max	Type-C 18W Max
DC5.5*2.5	12V 10A Max	12V 10A Max
Car Port	12V 7A Max	12V 7A Max
