Wall-Mounted Lithium Batteries

48V 150AH 7kw Power Wall LiFePO4 Battery Pack

Nominal Voltage: 51.2V
Energy: 7.68kWh
Max. Continuous Working Current: 100A
Communication: RS485/323/CAN
Product description: 48V 200AH 150AH 100AH 10KWH 7KWH 5KWH Power Wall LiFePO4 Battery Pack
INQUIRY

48V 150AH 7kw Power Wall LiFePO4 Battery Pack

OEM/ODM ACCEPTED!!!

Specifications:

Standard Models of Power Wall:

Electrical Characteristics
Nominal Voltage	51.2V	51.2V	51.2V
Nominal Capacity	100AH	150AH	200AH
Energy (kWh)	5.12kWh	7.68kWh	10.24kWh
Cycle Life	>4000 cycles @ 80% DOD
Designed Service Life	>10 years
Months Self Discharge	<3%
Efficiency of Charge	100% @0.5C
Efficiency of Discharge	96~99% @0.5C
BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Communication Interface	CAN/ RS485/232

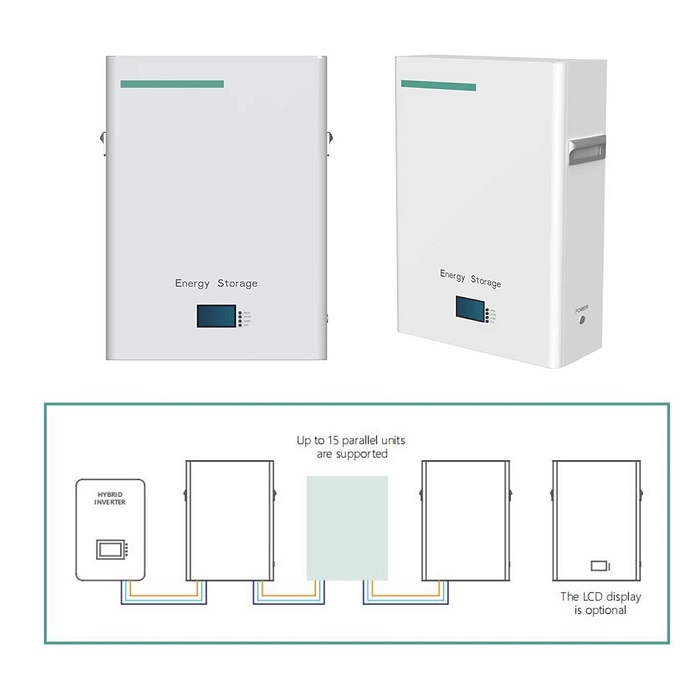

Maximum Modules in parallel	15PCS
Standard Charge and Discharge
Charge Voltage	54.4V-58.4V
Charge Mode	0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge Current	20A	30A	40A
Max. Charge Current	100A	100A	100A
Max Cont. Discharge Current	100A (Can be customized)
Peak Discharge Current	150A 1-3S
Discharge Cut-off Voltage	40V±0.5V
Environmental
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class	IP20
Mechanical
Shell Material	SPCC Metal Case
Approx. Dimensions	450145.5620mm	450145.5620mm	450235650mm
Approx. Weight	39KGS	65KGS	79KGS
Terminal Type	Anderson 120A
