Deep Cycle Starter Battery 12V 80Ah 100Ah

Deep Cycle LiFePO4 Lithium Battery 12V 80Ah 100Ah for Car Starting

Introduction:

The Deep Cycle LiFePO4 starter battery is specially designed for car starting, max CCA current can up to 1000A (1 second). With the new lithium-iron technology, you can quickly and easily replace your previous lead-gel or AGM battery for the first time.

The ultra-light Deep Cycle LiFePO4 battery can be used as a pure supply battery and can be loaded up to 200A continuously for a short time. The significantly lower weight, the long operational reliability, the long cycle life and the long service life are decisive advantages over conventional batteries of old technology.

Specification:

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	80Ah  / 100Ah
	Minimum Capacity	80Ah  / 100Ah
	Energy	1024Wh / 1280Ah
	Cycle Life	>5000 cycles
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @0.5C
	BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
	Max. connection in Series and in Parallels	4 pcs
Standard Charge	Charge Voltage	14.2-14.6V
	Charge Mode	0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
	Charge Current	16A /20A
	Max. Charge Current	80A /100A
Standard Discharge	Max Continuous Discharge Current	200A
	Peak Discharge Current	1000A 1S
	Discharge Cut-off Voltage	10V±0.5V
Environmental	Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
	Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
	IP Class	IP65
Mechanical	Plastic Case	ABS
	Approx. Dimensions	L318xW175xH190mm
	Approx. Weight	10kgs / 11KGS

Remarks:

1. Warranty: 3 Years

2. OEM/ODM accepted, can supply sample(s) for test

3. Factory supplied directly, accept small qty order

4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service

Applications:

*  Jump Starting

*  Solar/Wind Energy Storage application

*  Back-up Power supply for UPS/ EPS

*  Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

*  Marine/fishing Boats

Features of Our LiFePO4 Battery:

• High current resistant

• Perfect replacement to lead battery

• Built-in BMS

• Very light weight

• Fast charging

• High intrinsic safety

• Can be used in all positions

• Wide Temperature: -20 ℃ to 60 ℃ (-4F to 140F)

• Over 3000 cycles at 90% discharge

• Lifespan up to 10 years

• 100% maintenance free

• Environmentally friendly, no lead, no acid

• Recyclable

Optional Functions on Our LiFePO4 Batteries:

1. Bluetooth

We can customize the bluetooth APP with your company Logo and unique design for you.

Users can monitor the real-time status through the Bluetooth APP on the smart mobile phones.

2. Low Temperature Heating Functions

We can design a heating film to the BMS, when the temperature is below 32°F (0°C), the heating film will be turned on under charging conditions. During the heating process, the charger only supplies power upon the heating film  and it will not charge the battery when the temperature is lower than 0°C. When heated to 50°F (10°C), the BMS stops heating and the battery starts to charge. In the process of storage and discharge, the heating film neither works nor consumes battery power.

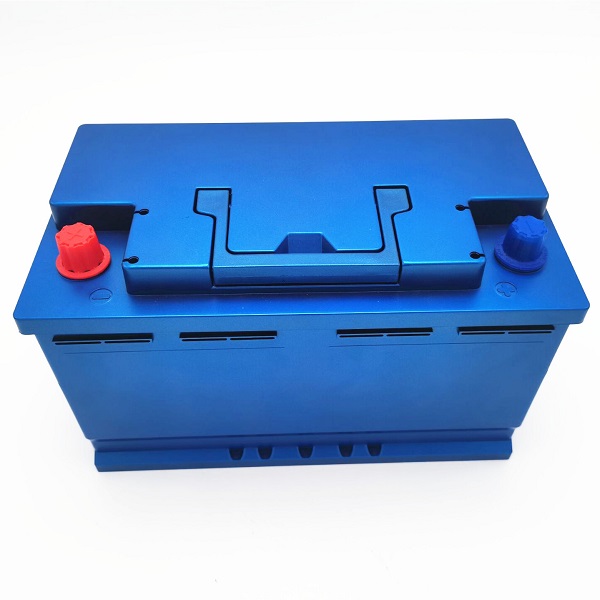

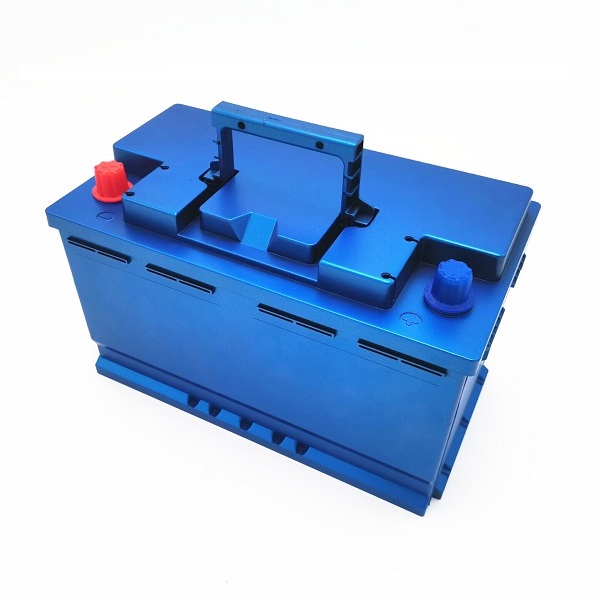

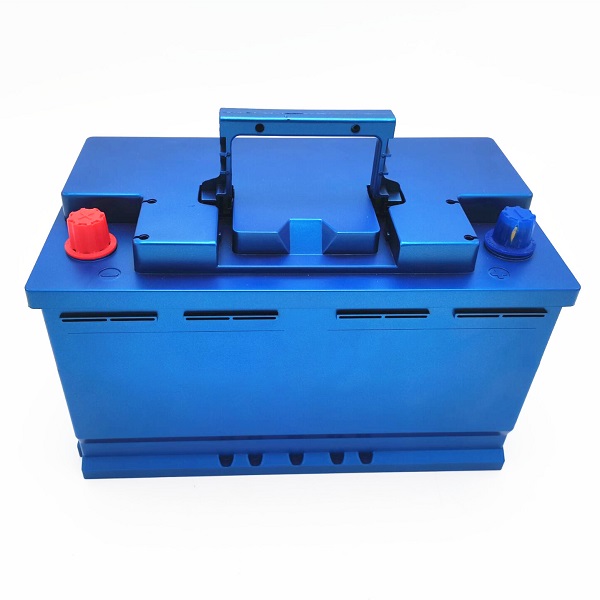

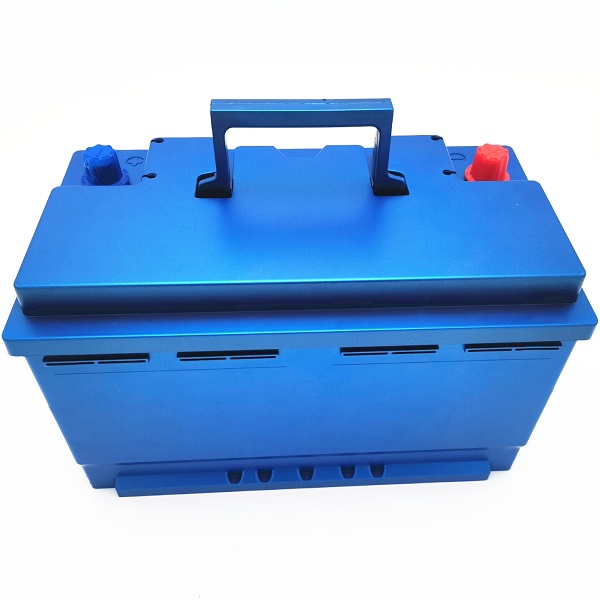

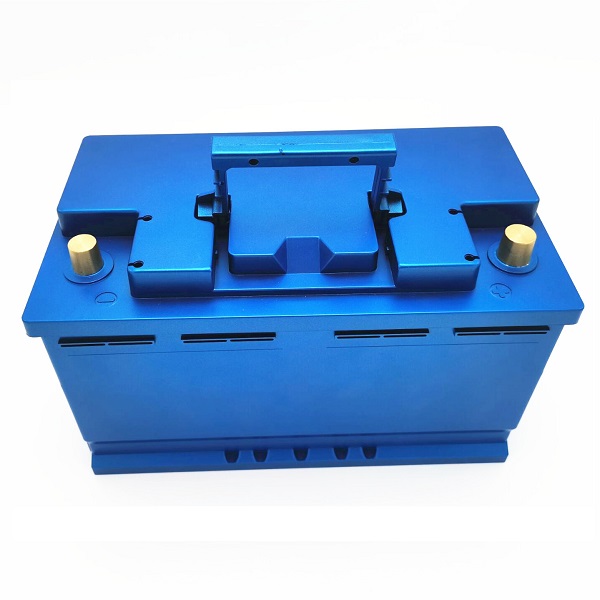

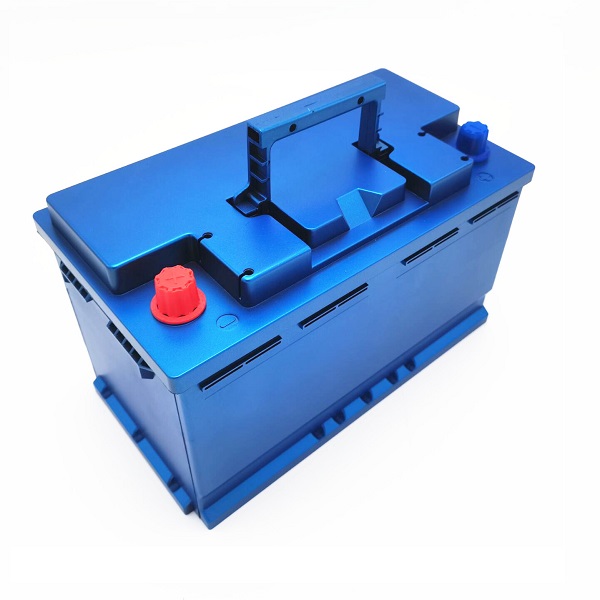

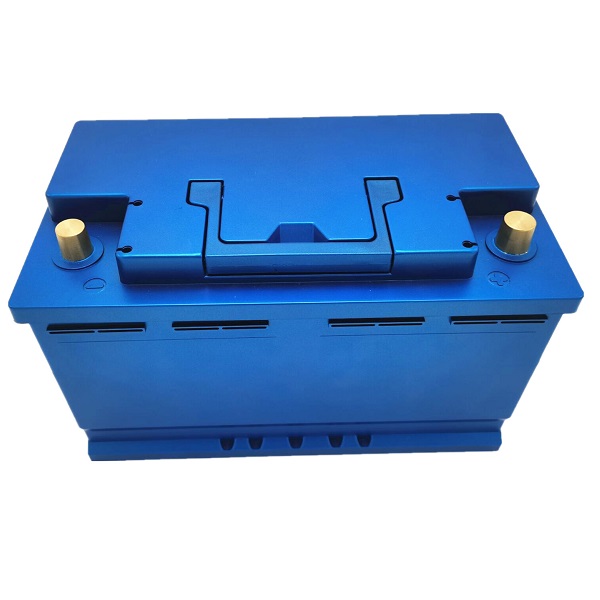

Product Pictures:
