HiPOWER Powerwall PW03 Series 5KWH 7KWH 10KWH Wall-Mounted Battery Banks LiFePO4 48V 100Ah 150Ah 200Ah 6000 Cycles Smart BMS with CAN RS485 RS232 Communication

  • Nominal Voltage: 51.2V
  • Nominal Capacity:100Ah/150Ah/200Ah or Cusotmized
  • System Energy: 5.12KWH/ 7.68KWH/ 10.24KWH

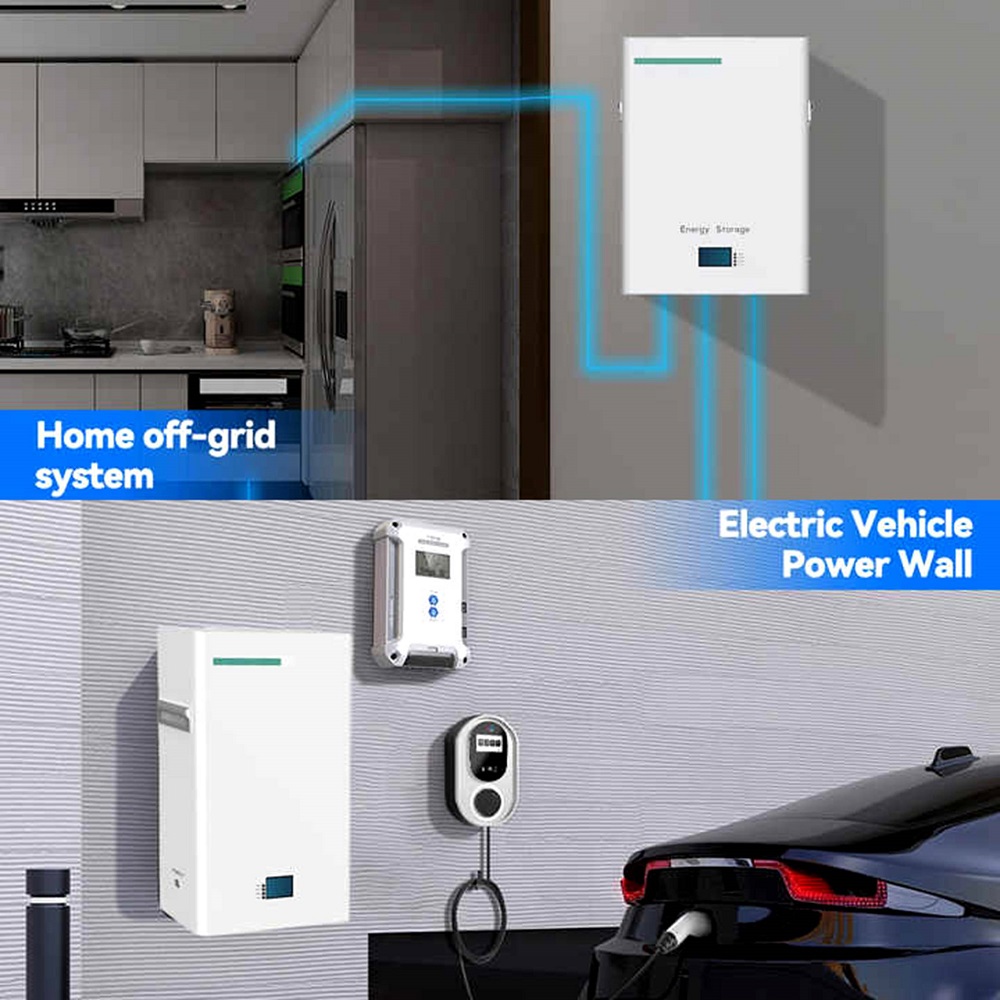

  • Application Scenarios: Solar, Residentials, Offices, Business Centers, Shopping Malls, Banks and Other Buildings Power Supply
  • Product description: HiPOWER top quality wall mounted lifepo4 lithium battery power wall 5kwh 7kwh 10kwh 12kwh 15kwh 20kwh with cheapest factory price, oem, odm. Email: sales@hipowerbattery.com.
  • INQUIRY

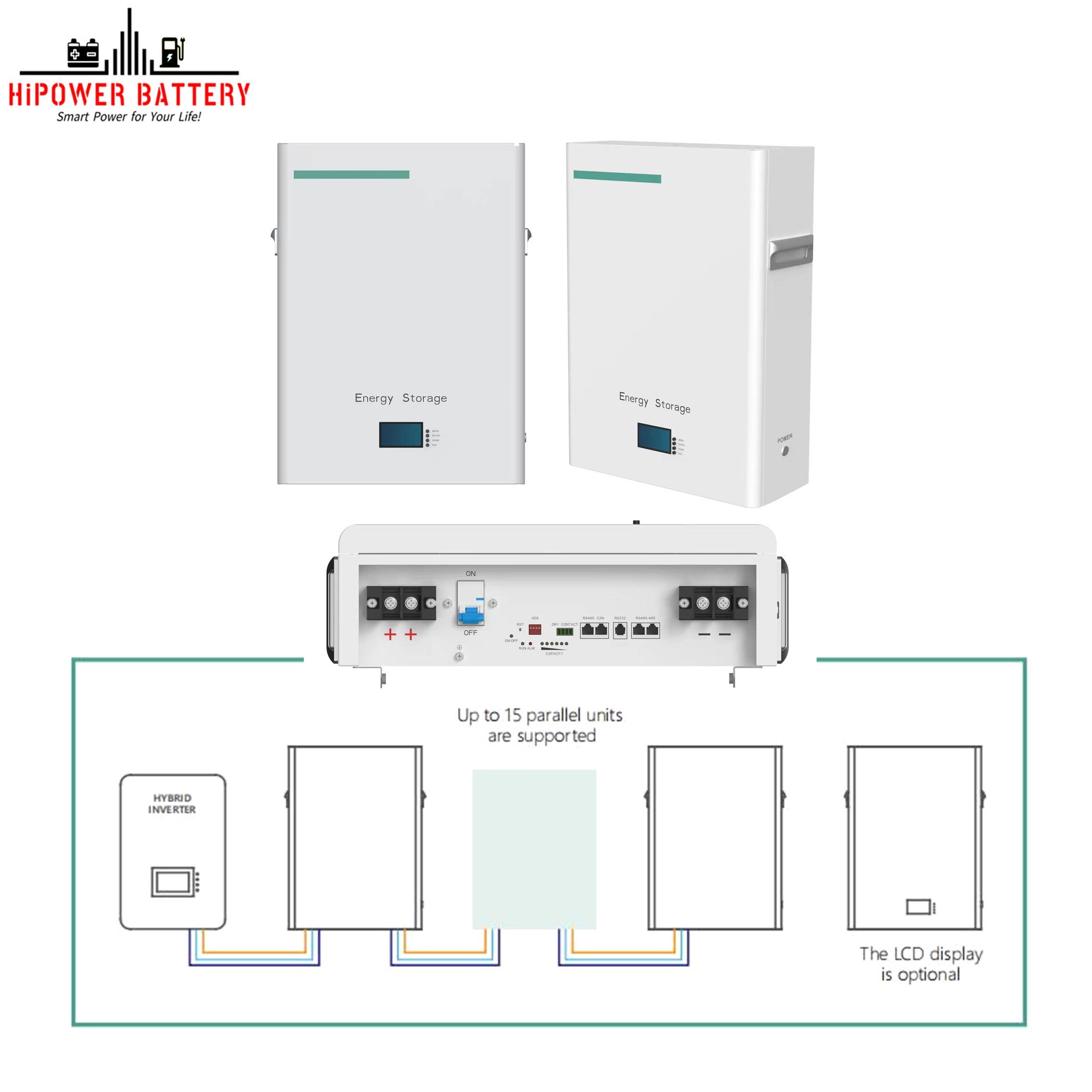

HiPOWER Powerwall PW03 Series 5KWH 7KWH 10KWH Wall-Mounted Battery Banks Support 16PCS Max. in Parallel Connection.

LiFePO4 48V 100Ah 150Ah 200Ah or Larger Capacity with CAN/ RS485/ RS232 Communication Compatible with Most of the Brand Inverters.

More than 6000 Times of Charge and Discharge!!! More than 15 Years Service Life!!!  5 to 10 Years Warranty!!!

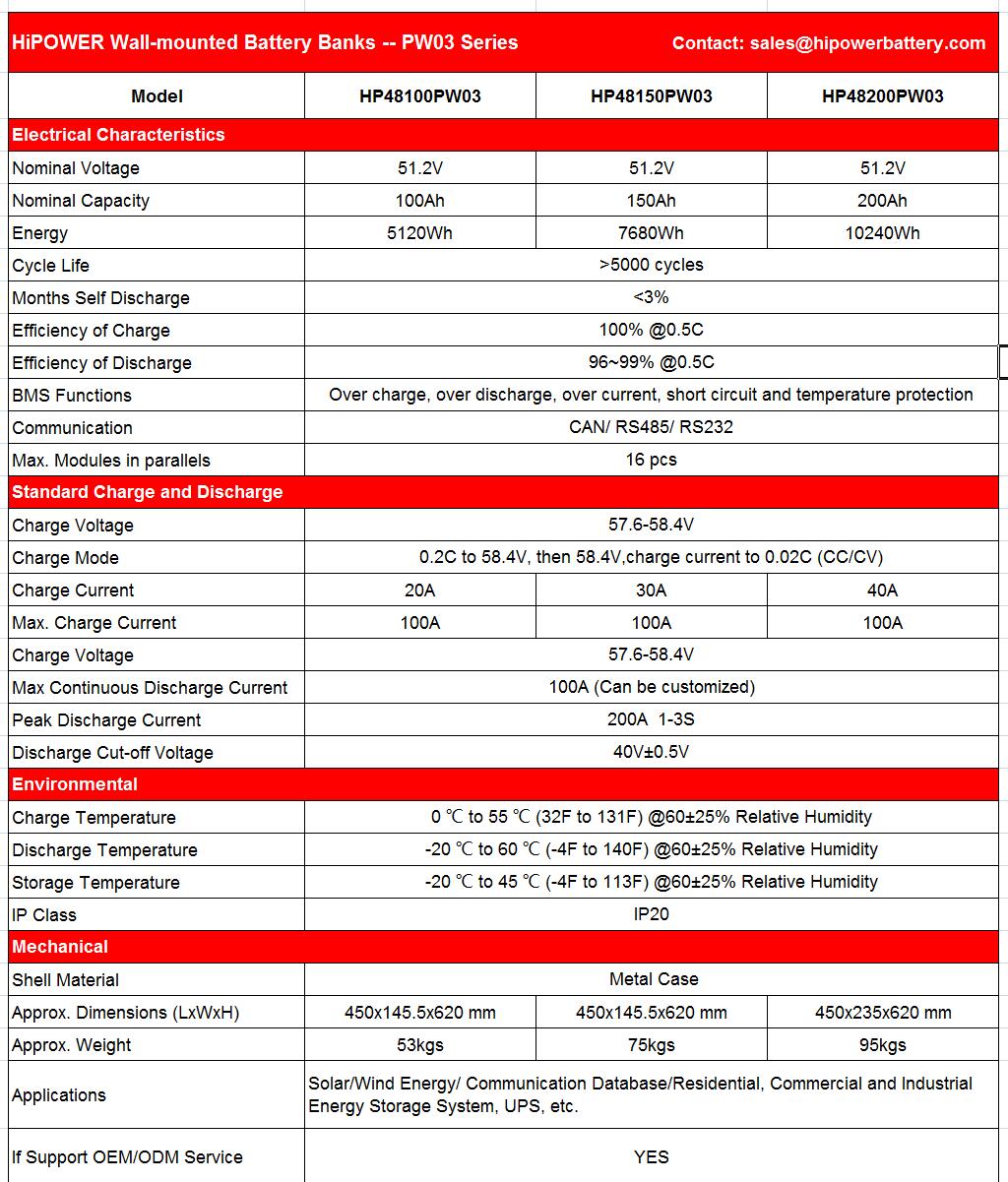

Specifications:

PW03 Series
Model: HP48100PW03
Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Energy: 5120Wh
Charging Current: 20 A
Continuous Working Current: 100 A
Cycle Life: 5000+ Cycles
Housing: Metal Case

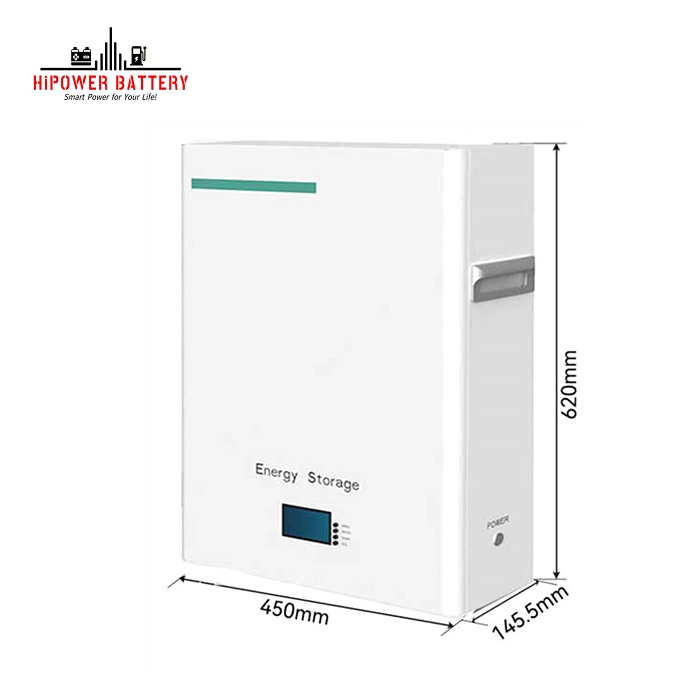

Dimensions: 450x145.5x620 mm
Weight: 53kgs
IP Class: IP20
Connection in Paralels: Max. 16pcs

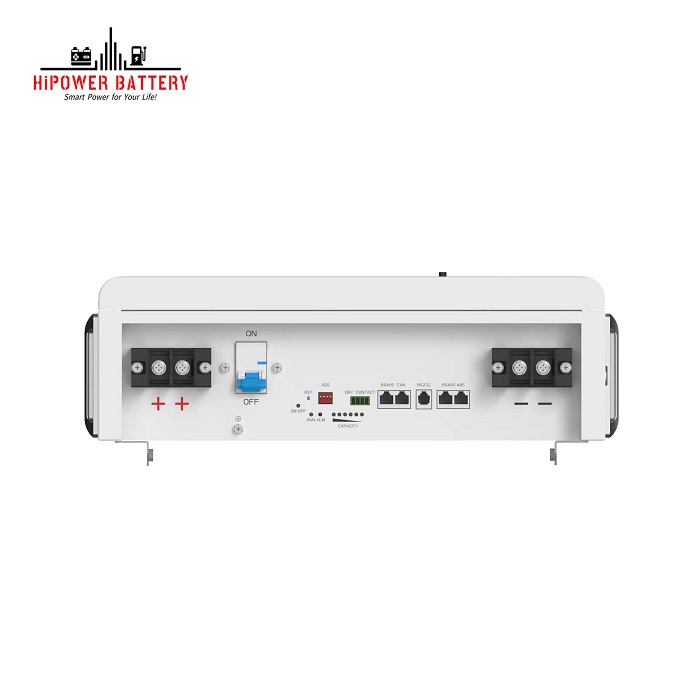

Communication: RS485, RS232, CAN
Warranty: 5 to 10 Years

HiPOWER Powerwall PW03 Series

HiPOWER Powerwall PW03 Series

HiPOWER Powerwall PW03 Series

HiPOWER Powerwall PW03 Series
