LiFePO4 24V 100Ah Rechargeable Lithium Golf Cart Battery

LiFePO4 24V 100Ah Rechargeable Lithium Golf Cart Battery

OEM/ODM ACCEPTED!!!

WELLCOME TO SEND YOUR REQUIREMENTS TO US FOR SOLUTIONS AND QUOTE.

SPECIFICATIONS:

Model: LiFePO4 24V 100Ah

Nominal Voltage: 25.6V

Nominal Capacity: 100Ah

Stored Energy: 2560Wh

Self-discharge: < 3% /months

Charging Voltage: 28.4-29.2V

Discharging Voltage: 20V-29.2V

Max. Continuous Discharging Current: 100A

Peak Discharging Current: 250A (5s)

Standard Charging Current: 15A

Max Charging Current: 100A

Housing: Metal Case

Color: Black, or Customized

Dimension: 483×170×240mm or Customized

Weight: About 26KGS

IP Grade: IP67

Terminals: M8 or customized

BMS Functions: Over charge, over discharge, over current, short circuit and temperature protection

Cycle Life: 4000 cycles

Warranty: 5 Years

Charge Temperature: 32℉ to 131℉(0℃ to 55℃)

Discharge Temperature: -4℉to 140℉(-20℃ to 60℃)

Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

Charge Temperature with Heating Function: -4℉to 131℉(-20℃ to 55℃) (Optional)

BMS High Temperature Cut-Off: 167 °F (75℃)

Reconnect Temperature: 122°F (50℃)

Features:

- 5 Year Manufacturer Warranty

- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery

- Grade A LiFePO4 EV Cell

- Built-in Smart Battery Management System (BMS)

- 4000+ Cycle life & Maintenance-free

- Over charge and over discharge protection

- Over current and short circuit protection

- High & low temperature protection

- IP65 Rated, dust and waterproof

- Internal heating allows for charging in below freezing conditions(Optional

Applications:

- RV, Caravan, Camper, Golf Cart

- Trolling Motors

- Fishing Boat, Houseboat & other Marine Applications

- Mobile Power Supply

- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.

- Lead Acid Battery Replacement

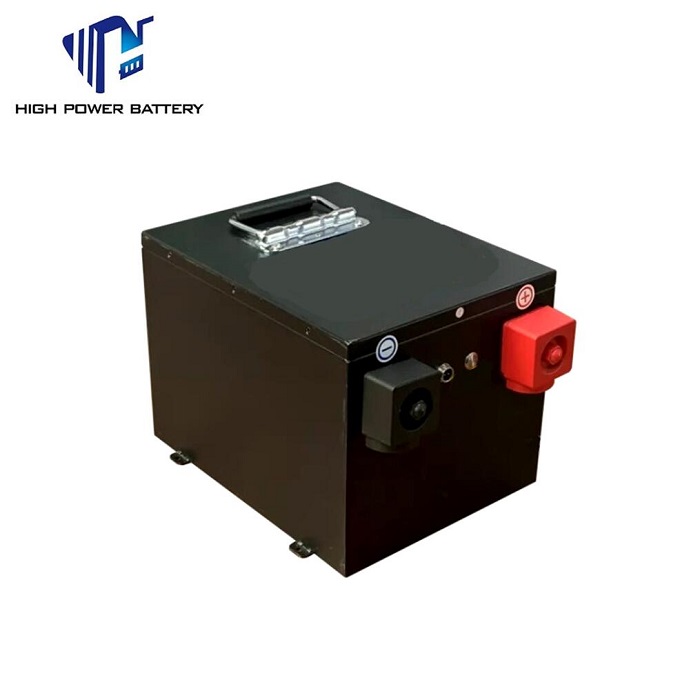

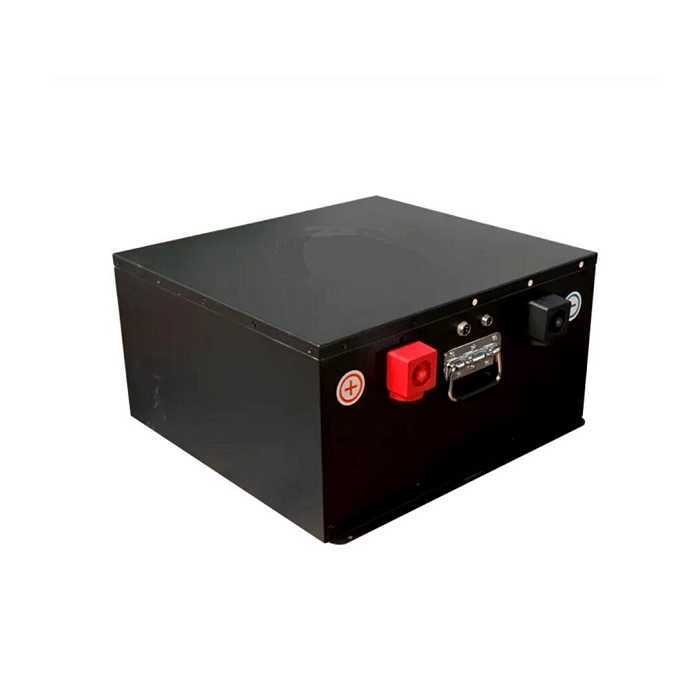

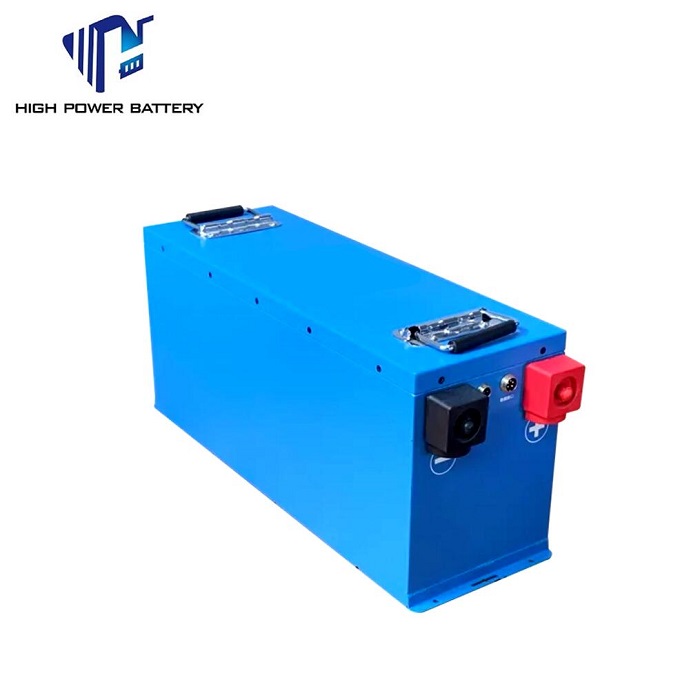

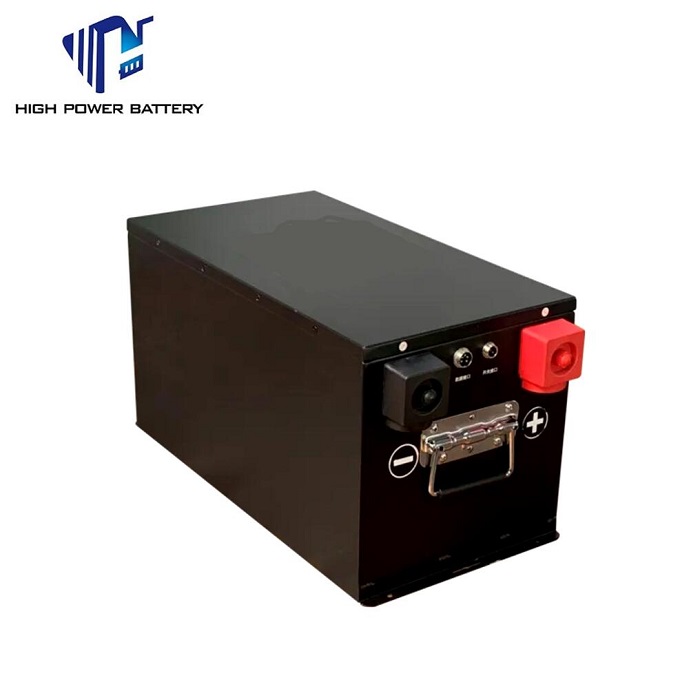

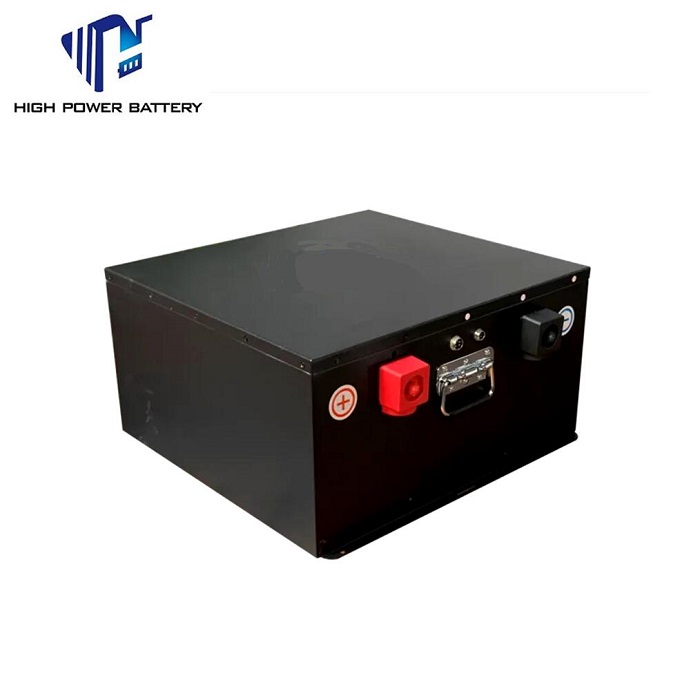

Product Pictures:
