LiFePO4 RV Battery 12V 150AH

LiFePO4 RV Battery 12V 150AH

Specification:

Model: LiFePO4 12V 150Ah

Nominal Voltage: 12.8V

Nominal Capacity: 150Ah

Stored Energy: 1920Wh

Self-discharge: < 3% /months

Charging Voltage: 14.2-14.6V

Discharging Voltage: 10V-14.6V

Max. Continuous Discharging Current: 200A

Peak Discharging Current: 500A (5s)

Standard Charging Current: 30A

Max Charging Current: 100A

Housing: ABS Plastic or Metal Case, customized

Color: Black, or Customized

Dimension: 483*170*240mm or Customized

Weight: About 18KGS

IP Grade: IP65

Terminals: M8 or customized

BMS Functions: Over charge, over discharge, over current, short circuit and temperature protection

Cycle Life: 4000 cycles

Warranty: 5 Years

Charge Temperature: 32℉ to 131℉(0℃ to 55℃)

Discharge Temperature: -4℉to 140℉(-20℃ to 60℃)

Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

Charge Temperature with Heating Function: -4℉to 131℉(-20℃ to 55℃) (Optional)

BMS High Temperature Cut-Off: 167 °F (75℃)

Reconnect Temperature: 122°F (50℃)

Applications: Golf Cart, Caravan, Motor home, RV, Touring Cart, Camper, Marine, Trolling Motors, Solar Energy Storage, etc..

Remarks:

1. Warranty: 5 Years

2. OEM/ODM accepted, can supply sample(s) for test

3. Factory supplied directly, accept small qty order

4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service

Applications:

     Solar/Wind Energy Storage Application

     Back-up Power for UPS/ EPS

     Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home

     Marine/fishing Boats

     Telecommunication

     DC Power Supply

     Auto Control System

     Power Tools

     Electric Toys

Features of Our LiFePO4 Battery:

• High current resistant

• Perfect replacement to lead battery

• Built-in BMS

• Very light weight

• Fast charging

• High intrinsic safety

• Can be used in all positions

• Wide Temperature: -20 ℃ to 60 ℃ (-4F to 140F)

• Over 3000 cycles at 90% discharge

• Lifespan up to 10 years

• 100% maintenance free

• Environmentally friendly, no lead, no acid

• Recyclable

Optional Function on Our LiFePO4 Batteries:

Bluetooth APP

We can customize the bluetooth APP with your company Logo and unique design for you.

Users can monitor the real-time status through the Bluetooth APP on the smart mobile phones.

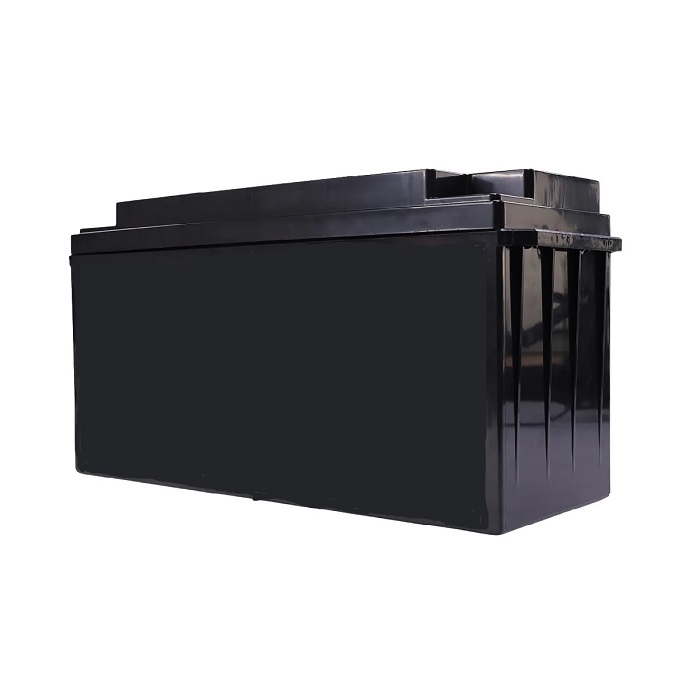

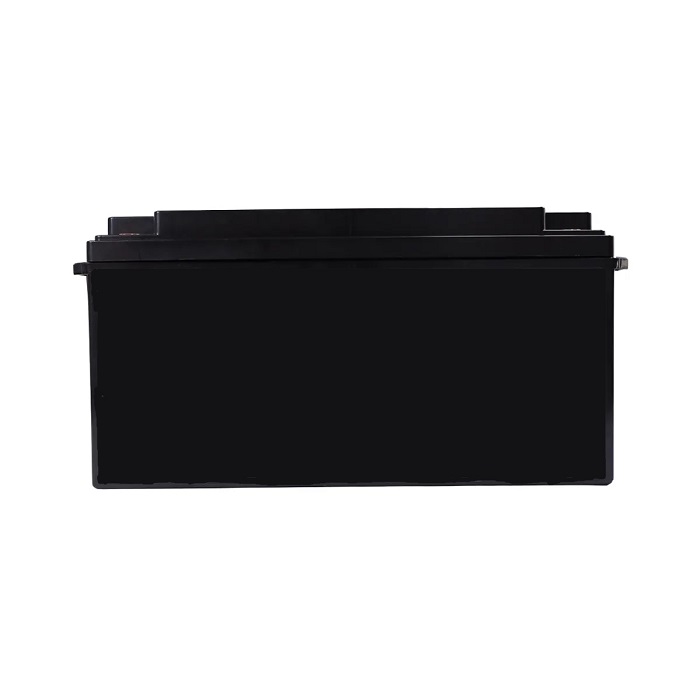

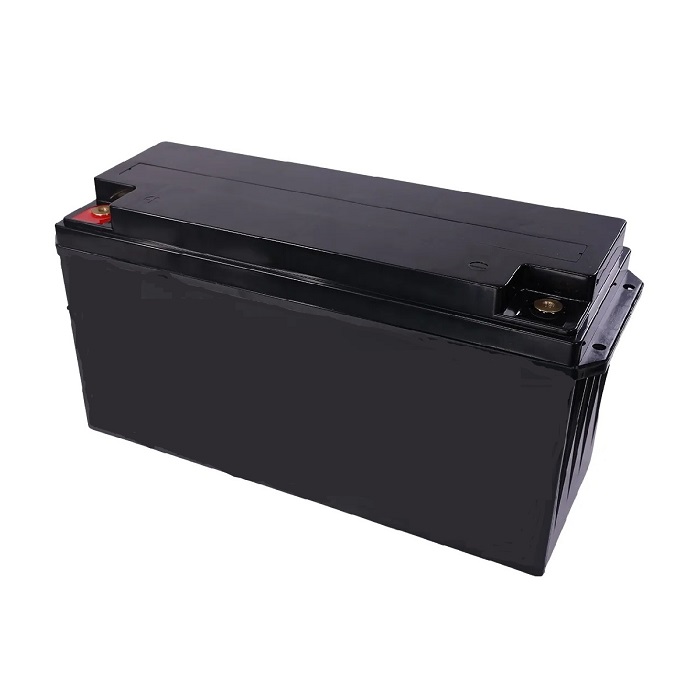

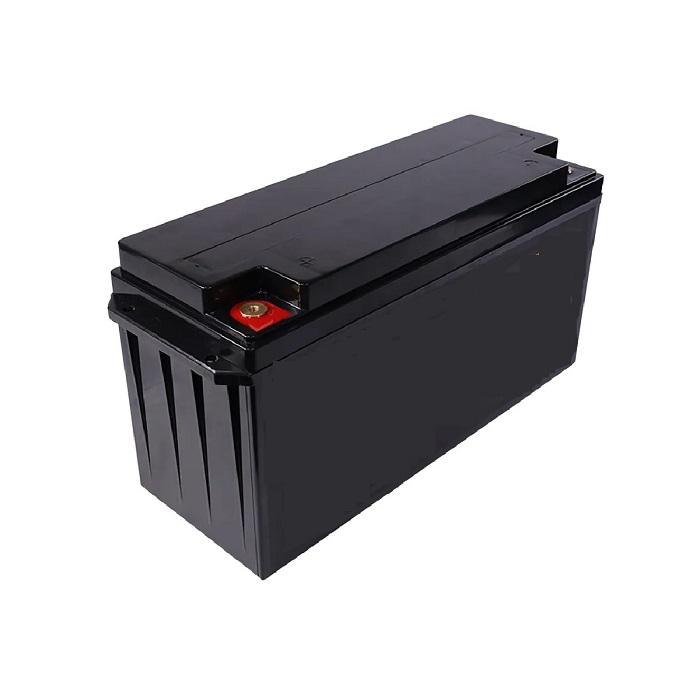

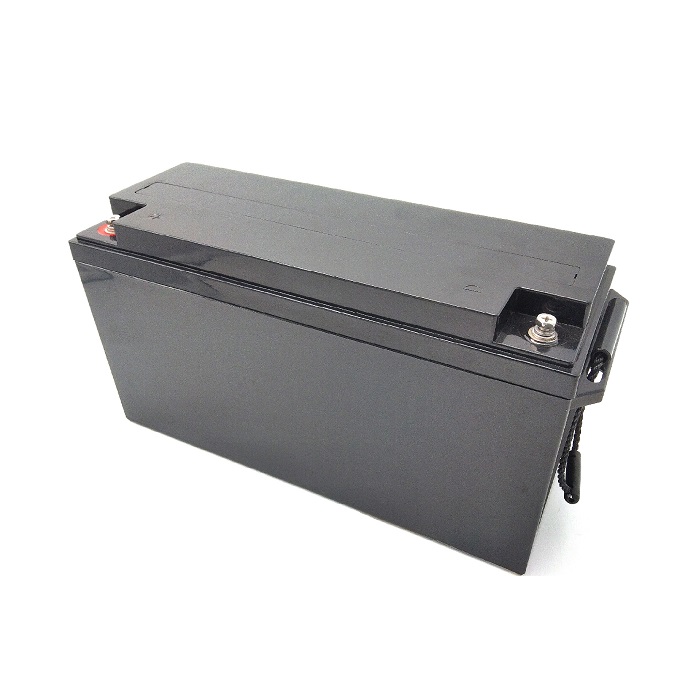

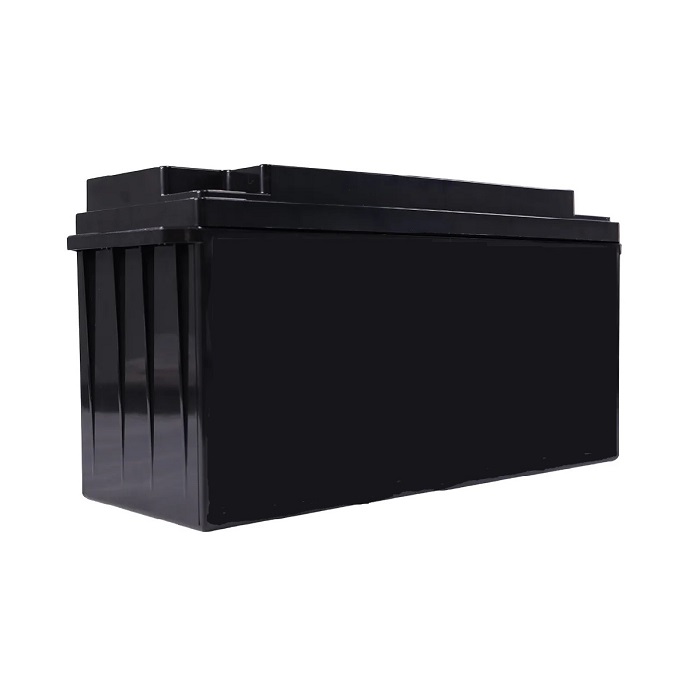

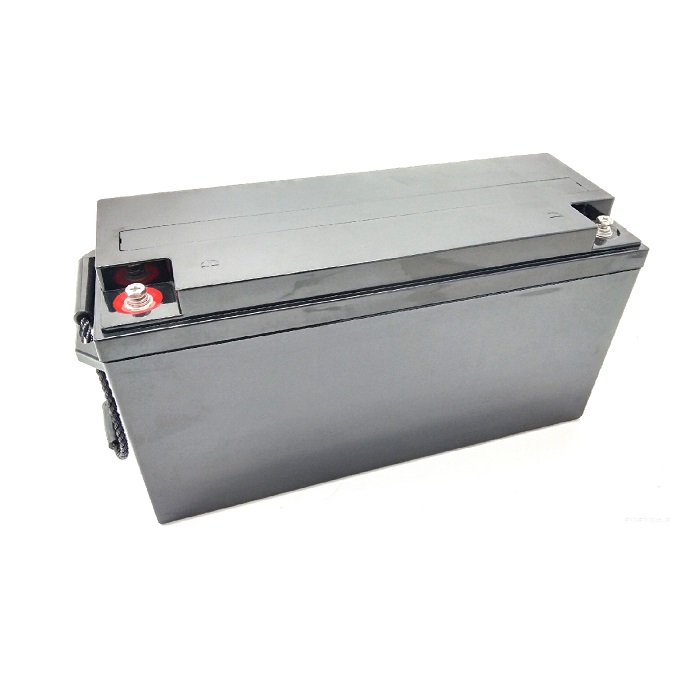

Product Pictures:
