Lifepo4 12V 50Ah Trolling Motor Battery
OEM/ODM ACCEPTED!!!
WELLCOME TO SEND YOUR REQUIREMENTS TO US FOR SOLUTIONS AND QUOTE.
SPECIFICATIONS:
Lifepo4 Lithium Batteries for Trolling Motor/ Marine:
|
Battery Model
|
LiFePO4 12V 50Ah |
LiFePO4 12V 100Ah |
LiFePO4 12V 200Ah
|
LiFePO4 24V 50Ah
|
LiFePO4 24V 100Ah
|
|
Nominal Voltage |
12.8V |
12.8V |
12.8V |
25.6V |
25.6V |
|
Nominal Capacity |
50Ah |
100Ah |
200Ah |
50Ah |
100Ah |
|
Energy in kWh |
0.64kWh |
1.28kWh |
2.56kWh |
1.28kWh |
2.56kWh |
|
Charge Voltage |
14.2V-14.6V |
14.2V-14.6V |
14.2V-14.6V |
28.4V-29.2V |
28.4V-29.2V |
|
RecommendCharge Current |
8A | 20A | 30A | 8A | 20A |
|
Max. Charge Current |
50A | 50A |
100A |
50A |
100A |
|
Max Cont. Discharge Current |
50A | 100A | 200A |
50A |
100A |
|
Peak Discharge Current |
150A (10s) |
250A (10s) |
450A (10s) |
150A (10s) |
250A (10s) |
|
Discharge Cut-off Voltage |
10V |
10V |
10V |
20V |
20V |
|
Approx. Dimensions |
198*166*170mm |
329*172*214mm |
522*240*218mm | 329*172*214mm |
522*240*218mm |
|
Approx. Weight |
5.6kgs |
11kgs |
22kgs |
11kgs |
222kgs |
|
Serial Connection |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 2pcs |
Max. 2pcs |
|
Parallel Connection |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
|
Battery Model
|
LiFePO4 36V 50Ah
|
LiFePO4 36V 100Ah
|
LiFePO4 48V 50Ah
|
LiFePO4 48V 100Ah
|
|
| Nominal Voltage | 38.4V |
38.4V |
51.2V |
51.2V |
|
|
Nominal Capacity |
50Ah |
100Ah |
50Ah |
100Ah |
|
|
Energy in kWh |
1.92kWh |
3.84kWh |
2.56kWh |
5.12kWh |
|
|
Charge Voltage |
42.6-43.8V |
42.6-43.8V |
56.8V-58.4V |
56.8V-58.4V |
|
|
Recommend Charge Current |
8A |
20A | 8A | 20A | |
|
Max. Charge Current |
50A | 100A | 50A |
50A |
|
|
Max Cont. Discharge Current |
50A | 100A | 50A | 100A | |
|
Peak Discharge Current |
150A (10s) |
250A (10s) |
150A (10s) |
250A (10s) |
|
|
Discharge Cut-off Voltage |
30V | 30V | 40V | 40V | |
|
Approx. Dimensions |
522*240*218mm |
520*269*220mm |
522*240*218mm |
520*269*220mm |
|
|
Approx. Weight |
18kgs |
32kgs |
22kgs |
40kgs |
|
|
Serial Connection |
No |
No | No |
No |
|
|
Parallel Connection |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
| Main Parameters | |||||
| Cycle Life | 3000 - 6000 cycles | ||||
| Design Service Life | > 10 years | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100% @0.5C | ||||
| Efficiency of Discharge | 96~99% @0.5C | ||||
| BMS Functions | Over charge, over discharge, over current, short circuit and temperature protection | ||||
| Charge Temperature | 0℃to 55℃(32F to 131F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
| Storage Temperature | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity | ||||
| IP Class | IP66 | ||||
| Monitor APP | iOS and Android Apps (App Stores / Google Play), Optional | ||||
| OEM/ODM Service | Support | ||||
Features:
- 3-5 Year Manufacturer Warranty
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- 4000+ Cycle life & Maintenance-free
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature protection
- IP65 Rated, dust and waterproof
- Internal heating allows for charging in below freezing conditions(Optional
Applications:
- RV, Caravan, Camper, Golf Cart
- Trolling Motors
- Fishing Boat, Houseboat & other Marine Applications
- Mobile Power Supply
- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.
- Lead Acid Battery Replacement

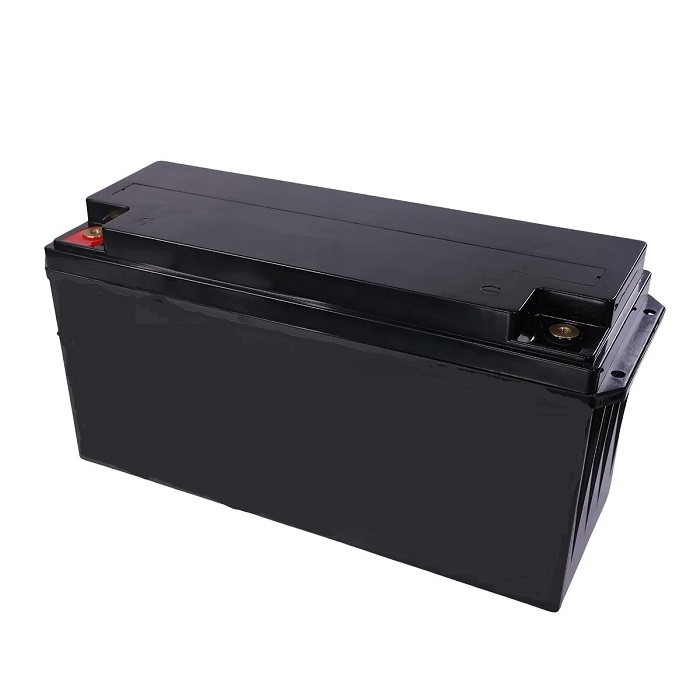

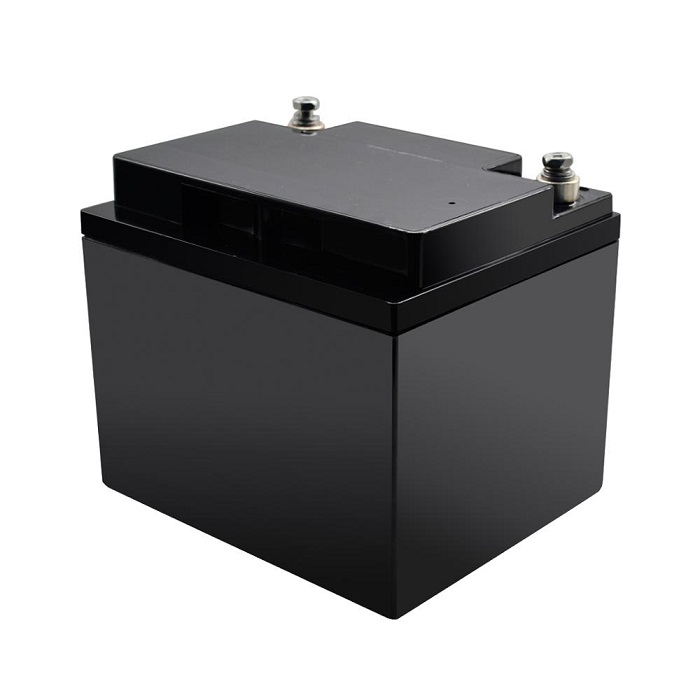

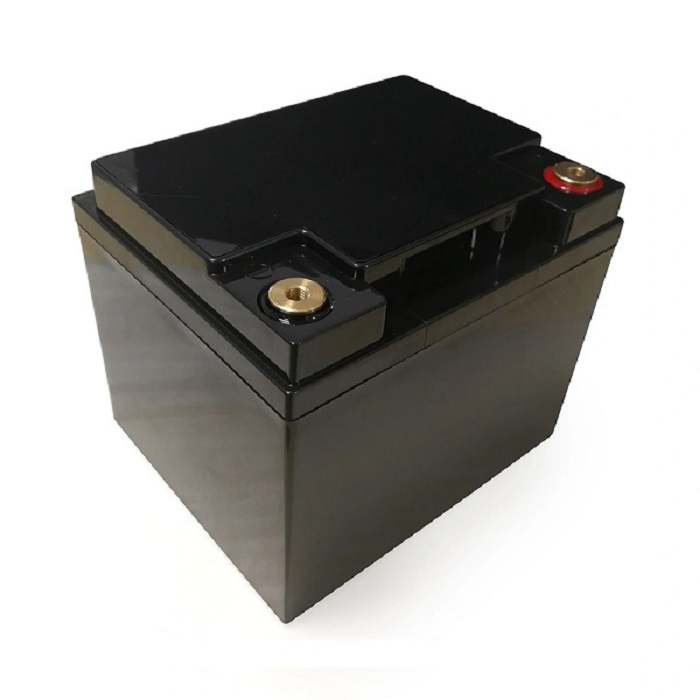

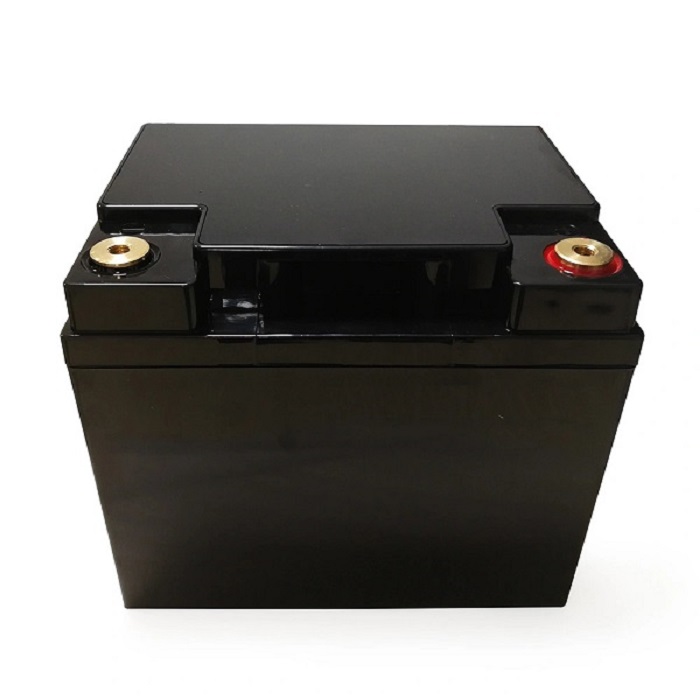

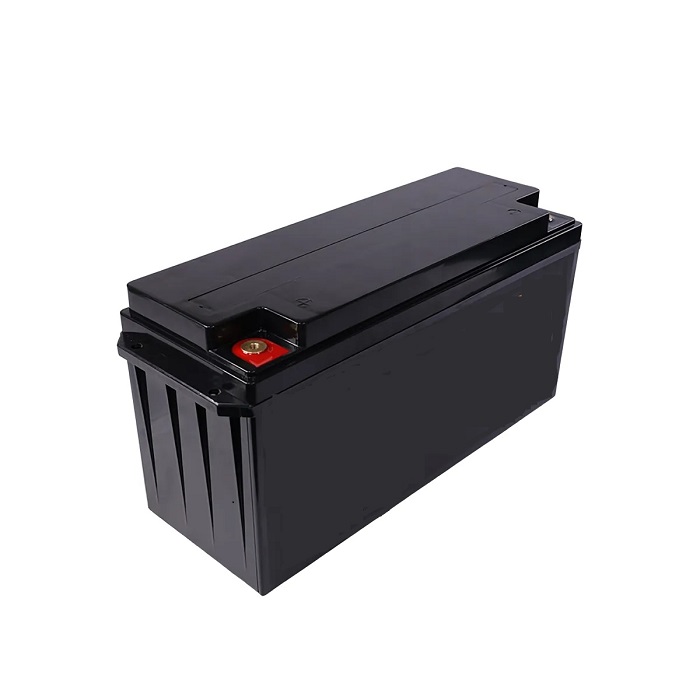

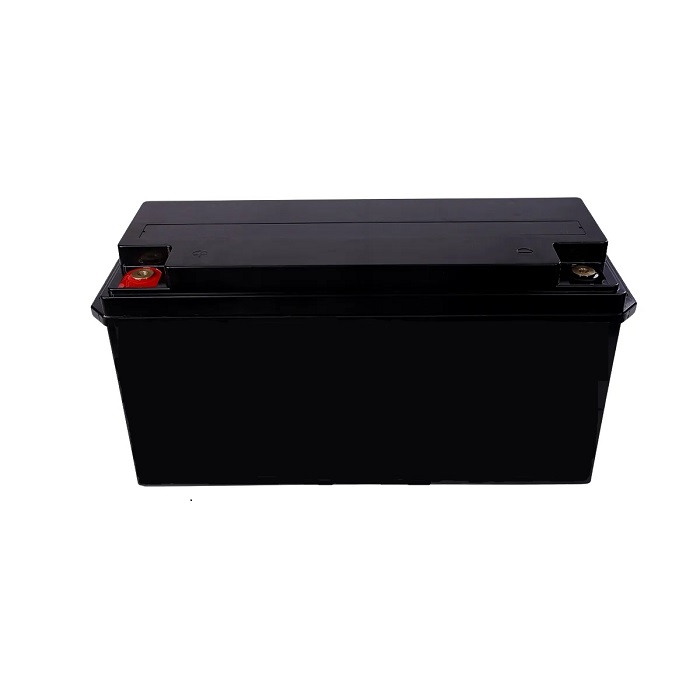

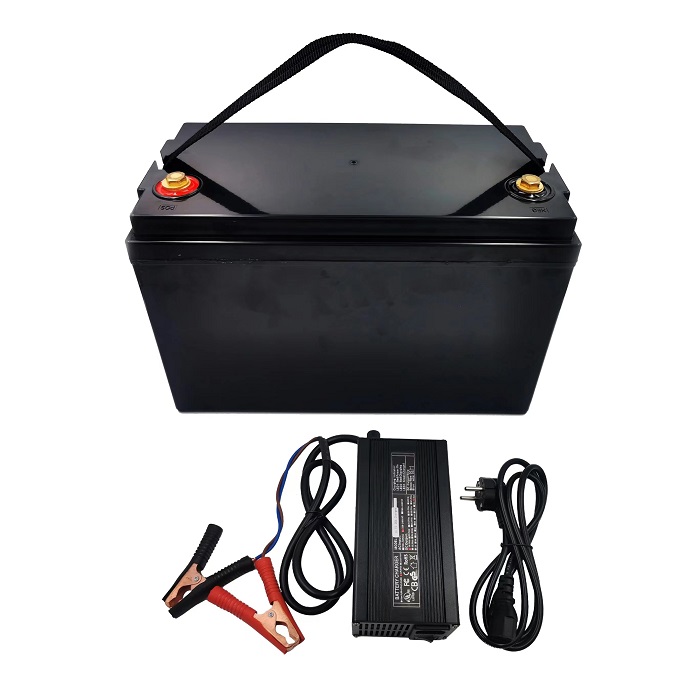

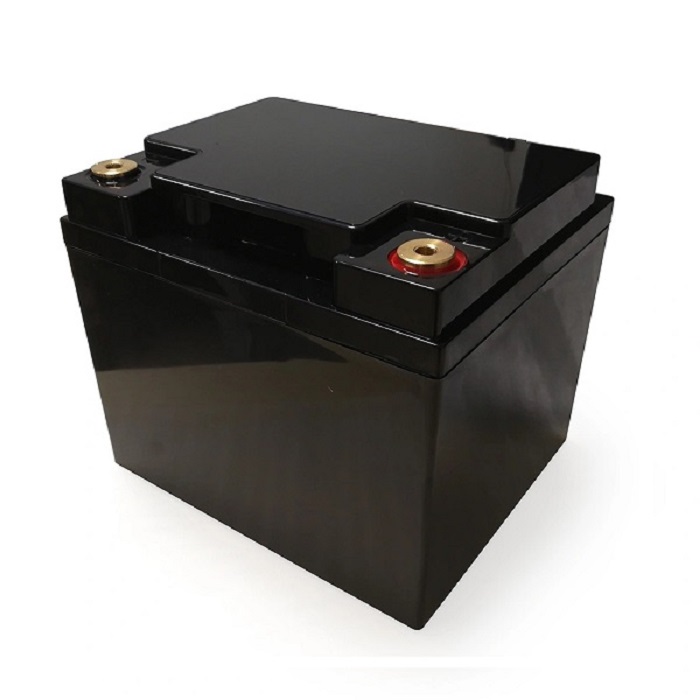

Product Pictures:

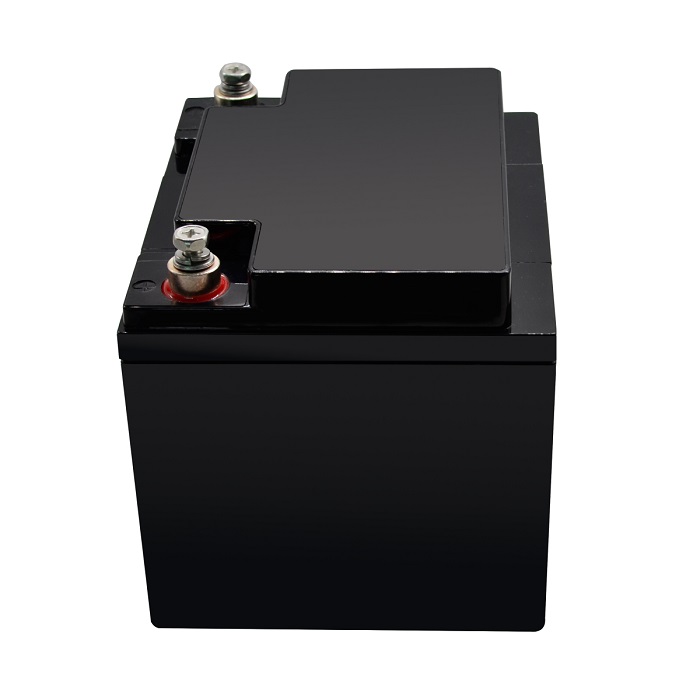

Trolling motor battery 12v 50a
We're professional trolling motor batteries manufacturer and supplier

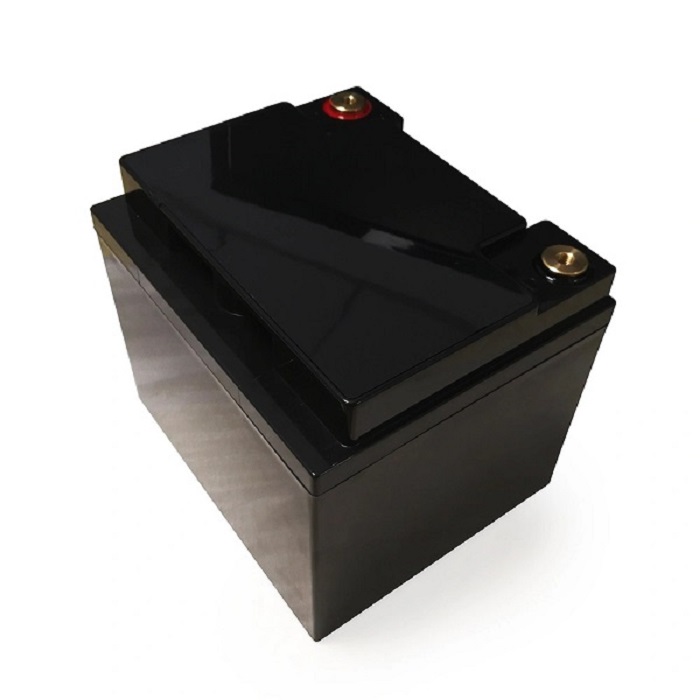

Trolling motor battery 12v 50a
We're professional trolling motor batteries manufacturer and supplier
Trolling motor battery 12v 100
We're professional trolling motor batteries manufacturer and supplier
Trolling motor battery 12v 80a
We're professional trolling motor batteries manufacturer and supplier
Trolling motor battery 12v 105
We're professional trolling motor batteries manufacturer and supplier
Trolling motor battery 12v 120
We're professional trolling motor batteries manufacturer and supplier
