Lifepo4 lithium battery 24V 20Ah for e-bike e-scooter e-wheelchair e-mobility

  • Nominal Voltage: 25.6V
  • Nominal Capcity: 20AH
  • Working Current: 1C-3C
  • Cycle Life: > 2000Times
  • Product description: Lifepo4 lithium battery 24V 20Ah for e-bike e-scooter e-wheelchair e-mobility
  • INQUIRY

Lifepo4 lithium battery 24V 20Ah for e-bike e-scooter e-wheelchair e-mobility


Specification:

Model No.

HP 2420

Voltage

25.6V

Nominal Capacity

16Ah or customized

Cell Material

LiFePO4

Weight

5.5 Kg(Appr.)

Outside dimension

Customized

Working discharge current

Customized

Regular charging current

2A or 4A or Customized

Assembly Mode

8S6P

Cell QTY

48pcs 26650 battery cells

Certificate

CE, UN38.3,ROHS, MSDS,UL

With BMS/PCB

Yes,regular version or customized

Over charge protection

Yes

Over discharge protection

Yes

Over current protection

Yes

Temperature protection

Yes

Pollution-free

Yes

Memory effect

No

Charge Method

CC-CV

Operation Temperature

Charge:0-45oC

Discharge:-20-60oC

Cycle life

>2000 times

Warranty

1 Year



2.Applications of Battery Pack 24v 20ah

1) Telecommunications: Cellular phone, interphone, blue tooth earphone.

2) Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television

3) Portable Devices: GPS,PDA, E-book ,PMP, PSP, portable medical device etc.

4) Illuminate Devices: Miner lamp, search light.

5) Electric Scooter, Skateboard, E-bike

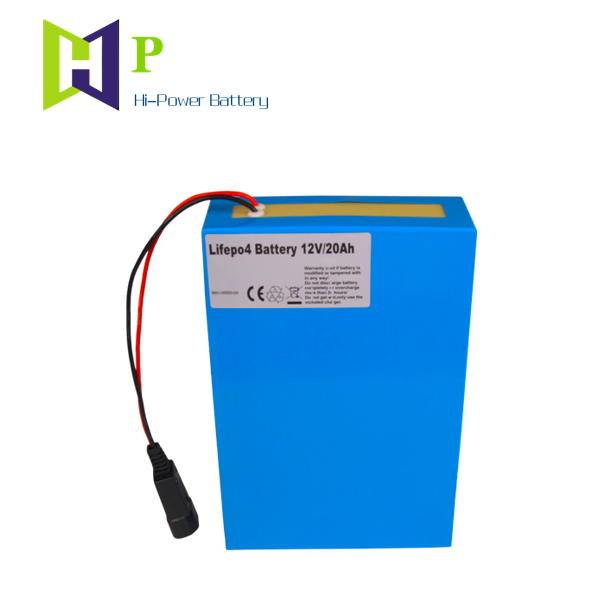

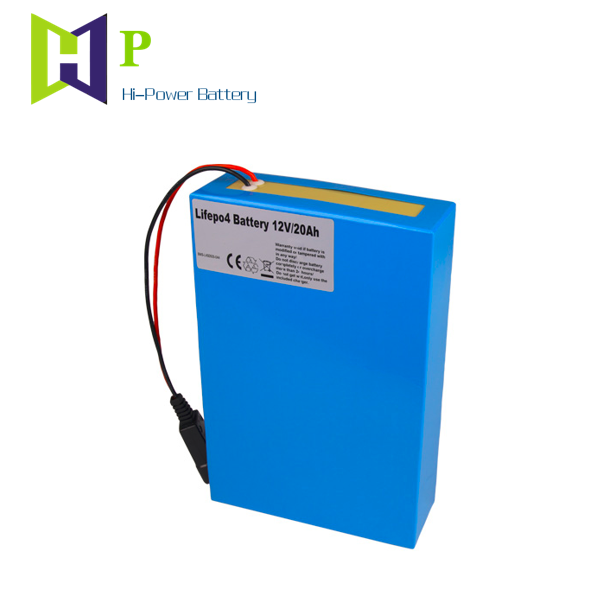

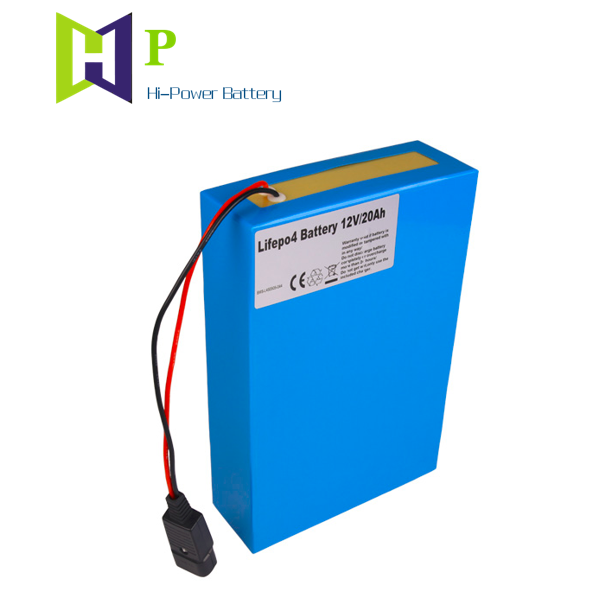

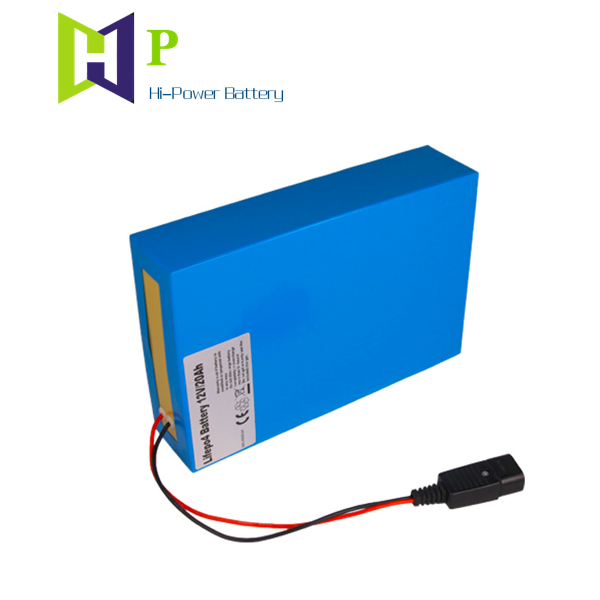

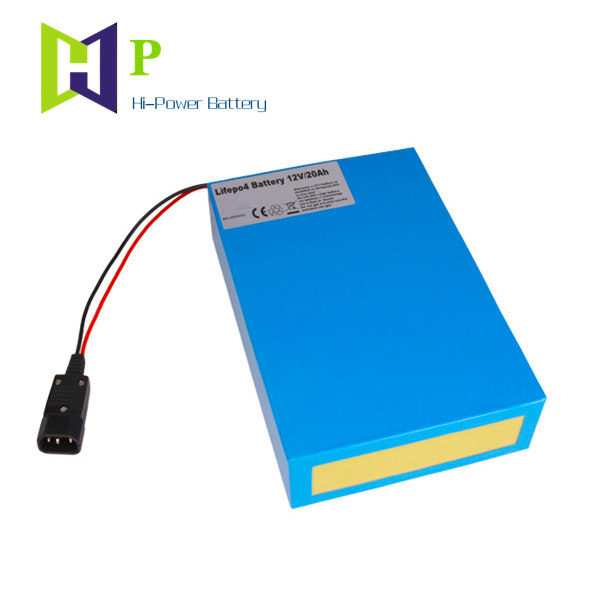

Product Pictures:
