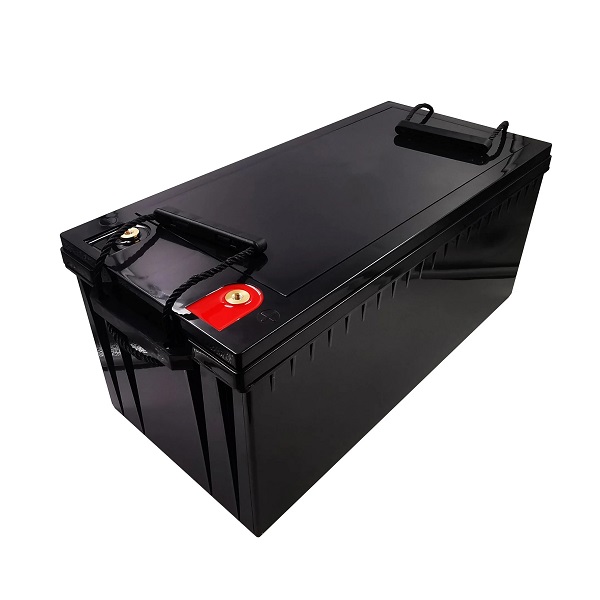

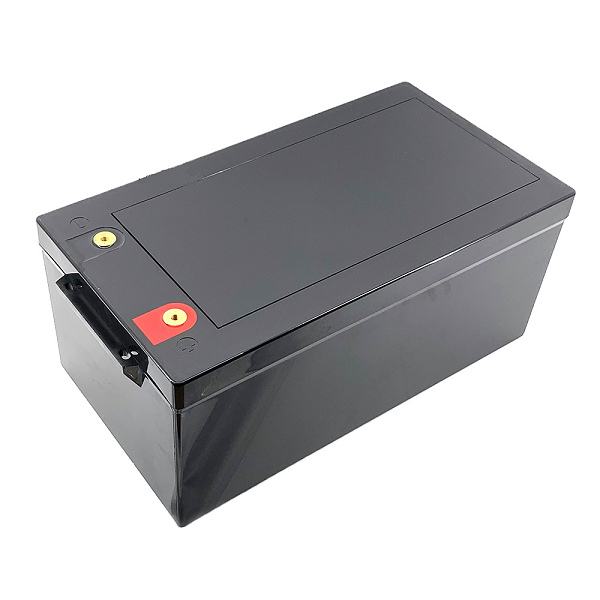

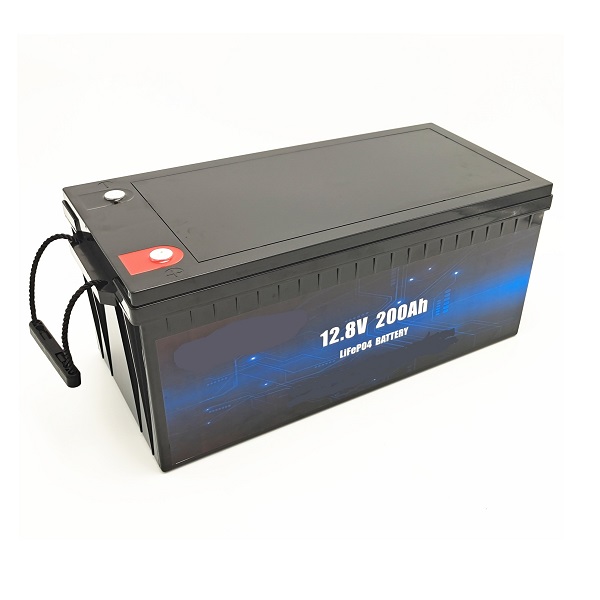

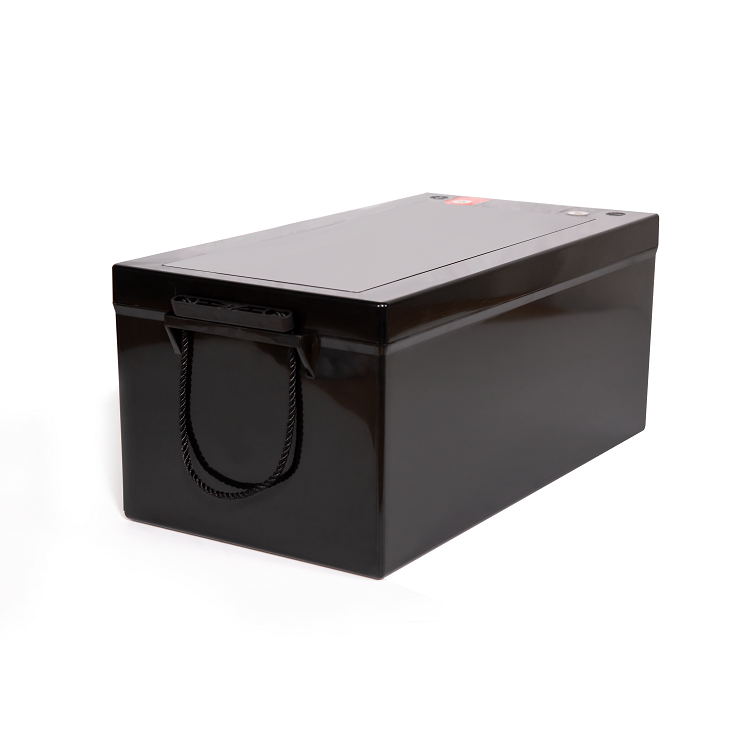

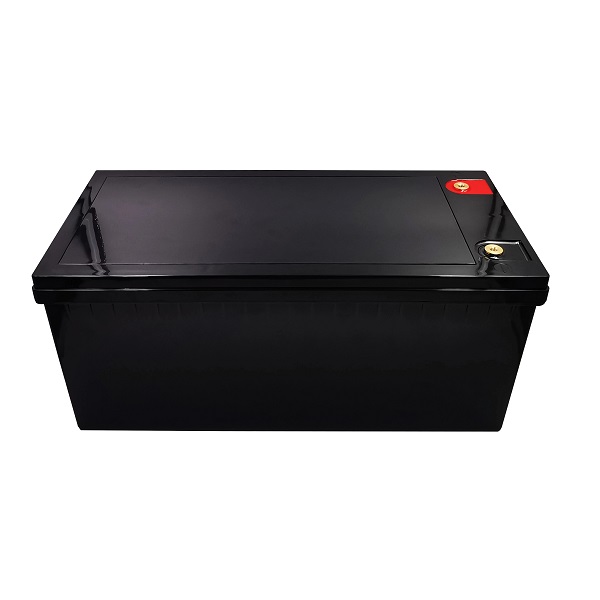

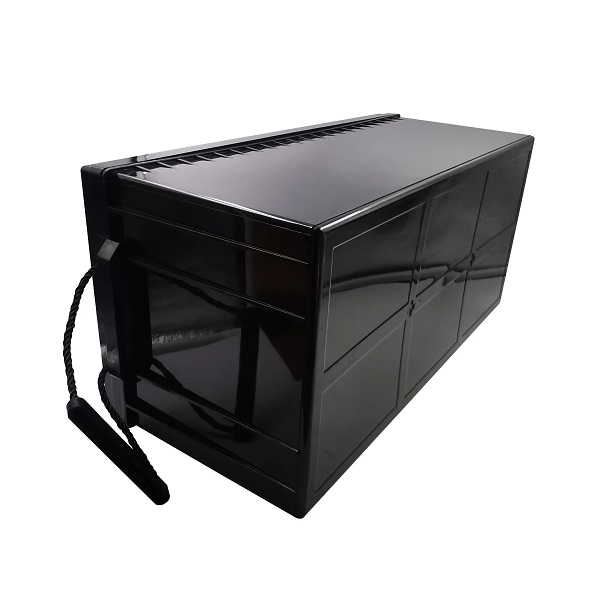

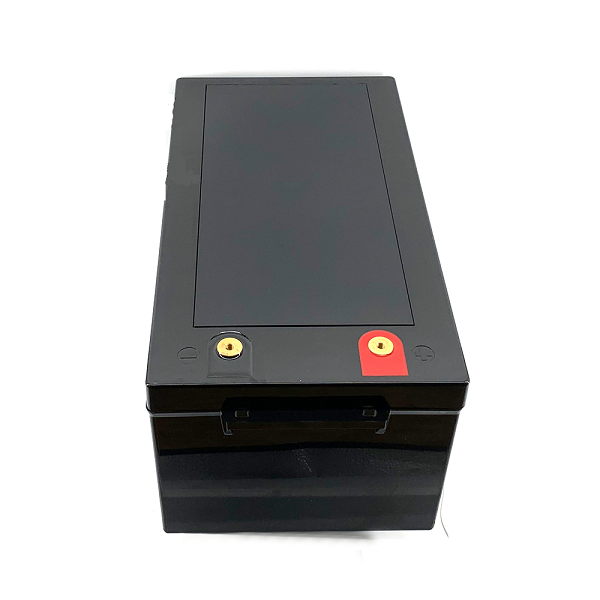

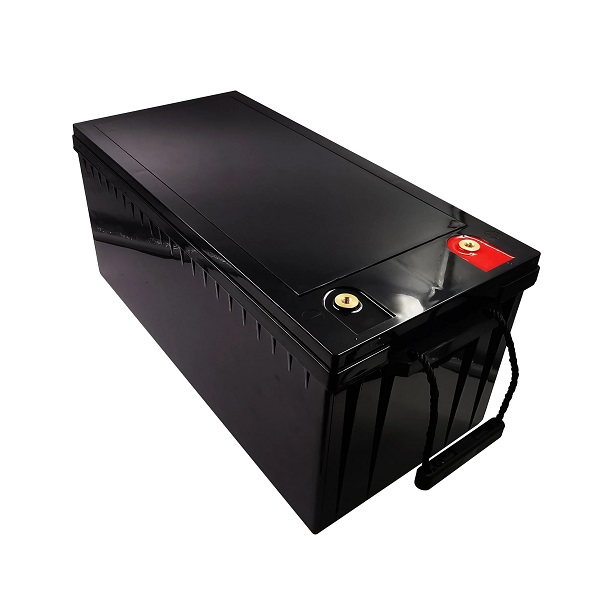

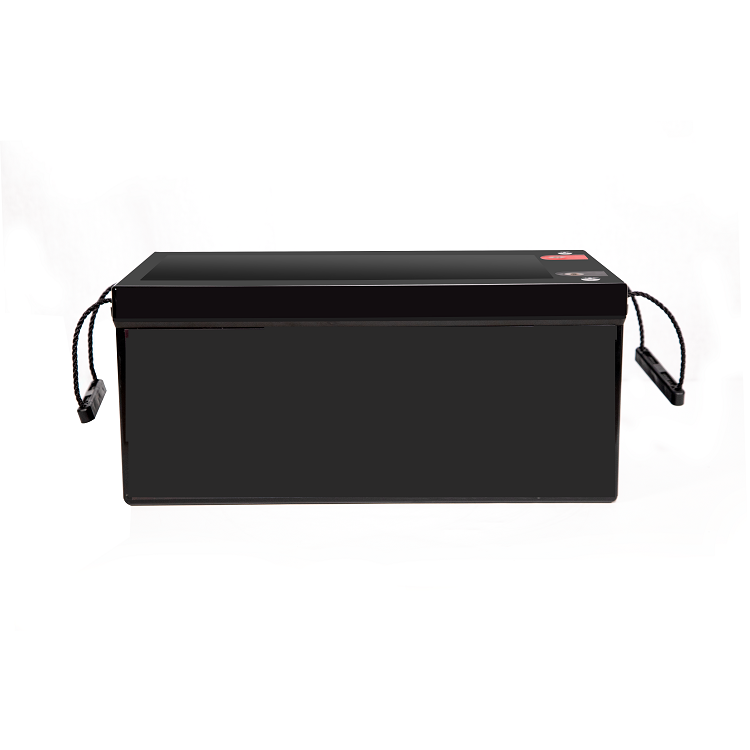

Low Temperature LiFePO4 Battery 12V 200AH

Low Temperature LiFePO4 Battery 12V 200AH

Continuous Working Current: 200A
Size: L522xW240xH218mm
Cycle Life: 5000cycles
Warranty: 5 years
Product description: Factory supplied deep cycle LiFePO4 lithium battery 12V 200Ah 200A BMS 5000 cycles 10 years service life
INQUIRY

Deep Cycle Low Temperature Lithium Battery LiFePO4 12V 200AH

Introduction:

The Low Temperature LiFePO4 Battery is specially designed with a heating film on the BMS, when the temperature is below 32°F (0°C), the heating film will be turned on under charging conditions. During the heating process, the charger only supplies power upon the heating film and it will not charge the battery when the temperature is lower than 0°C. When heated to 50°F (10°C), the BMS stops heating and the battery starts to charge. In the process of storage and discharge, the heating film neither works nor consumes battery power.

The ultra-light Deep Cycle LiFePO4 battery can be used as a pure supply battery and can be loaded up to 200A continuously for a short time. The significantly lower weight, the long operational reliability, the long cycle life and the long service life are decisive advantages over conventional batteries of old technology.

Specification:

Electrical Characteristics	Nominal Voltage	12.8V
	Nominal Capacity	200Ah
	Minimum Capacity	200Ah
	Energy	2560Wh
	Cycle Life	5000 cycles
	Months Self Discharge	<3%
	Efficiency of Charge	100% @0.5C
	Efficiency of Discharge	96~99% @0.5C
	BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Standard Charge	Charge Voltage	14.2-14.6V
	Charge Mode	0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)
	Charge Current	40A
	Max. Charge Current	100A
Standard Discharge	Max Continuous Discharge Current	100A
	Peak Discharge Current	400A±40A 0.5-1.5S
	Discharge Cut-off Voltage	10V±0.5V
Environmental	Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
	Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
	Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
	IP Class	IP65
Mechanical	Plastic Case	ABS
	Approx. Dimensions	L522xW240xH218mm
	Approx. Weight	22kgs
Heating Element Specifications	Heating Temperature Range	-4 to 50 ºF (-20 to 10 ℃)
	Heating Time (Approximately)	1 hr @ 5 A
	BMS Heating Element Cut-Off	167 ºF (75 ℃)
