Welcome: HiPOWER BATTERY
2024 NEW DESIGN

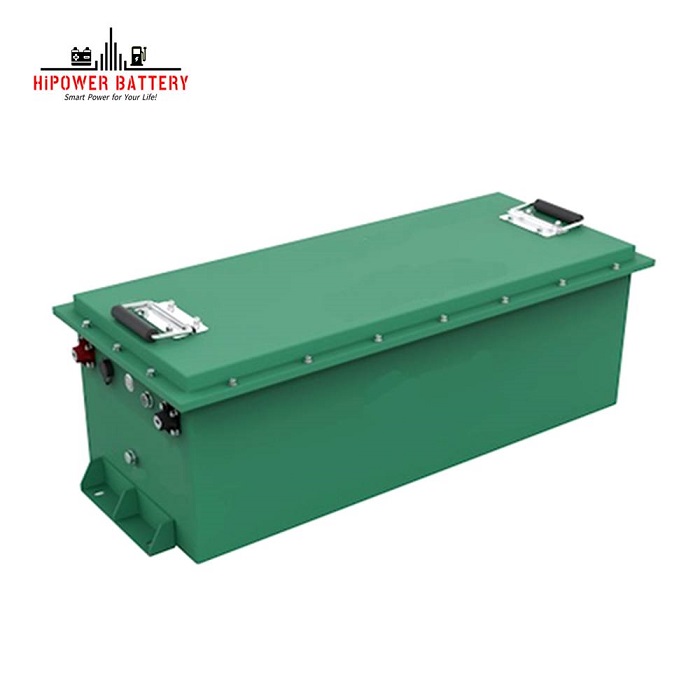

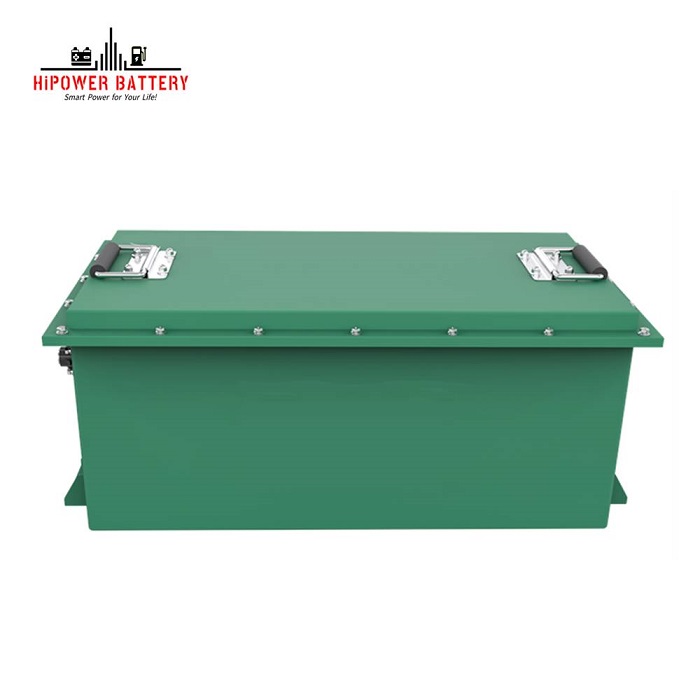

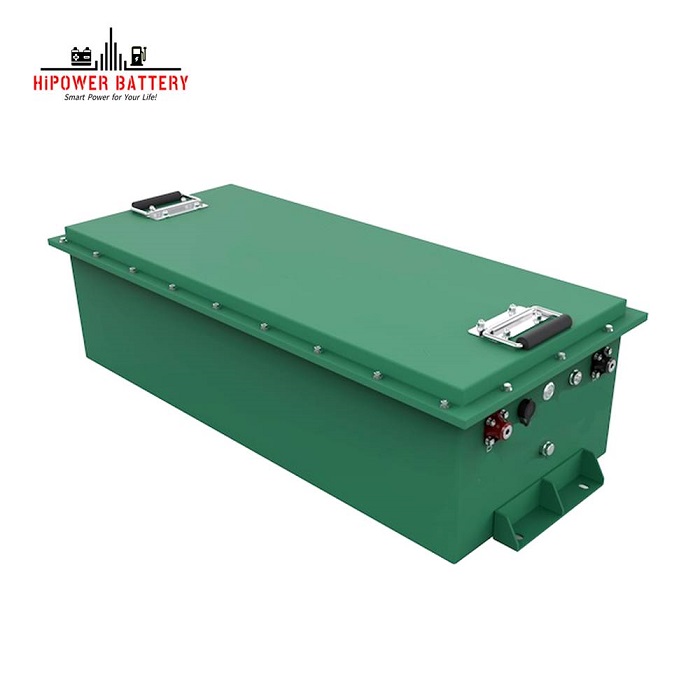

LiFePO4 Golf Cart Battery 76.8V 105Ah with Bluetooth and CAN RS485 Communication 5000 Cycles 5 to 10 Years Manufactur Warranty
OEM / ODM / CUSTOMIZATION From HiPOWER FACTORY
HiPOWER Golf Cart Batteries can be compatible with these golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, Evolution, EPIC, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha, and other carts and electric EV vehicles.
Welcome to contact us for the latest price and details:
MOB/WhatsApp: +86 13554954960
Email: sales@hipowerbattery.com
WE SUPPORT OEM/ODM SERVICE:
* Customize Your Battery Size/ Color/ Logo, etc.
* Customize Your Battery Voltage, Capacity, Working Current
* Customize Your Battery Connector/ Charger
* Customize Your Bluetooth APP
Specifications:
Model: LiFePO4 76.8V 105Ah
Configuration: 24S1P
Cell Type: Grade A Prismatic Cells (EV Grade)
Cell Chemistry: Lithium Iron Phosphate (LiFePO4)
Nominal Voltage: 76.8V
Nominal Capacity: 105Ah
Energy: 8.64KWH
Capacity @50A: 126Min
Charge Voltage: 85.2V - 87.6V
BMS Balancing Voltage: 81.6V
Charge Current: 50A Max.
Working Voltage: 64.8V - 87.6V
Max. Continous Working Current: 200A or Customized
Peak Working Current: 500A (<10S)

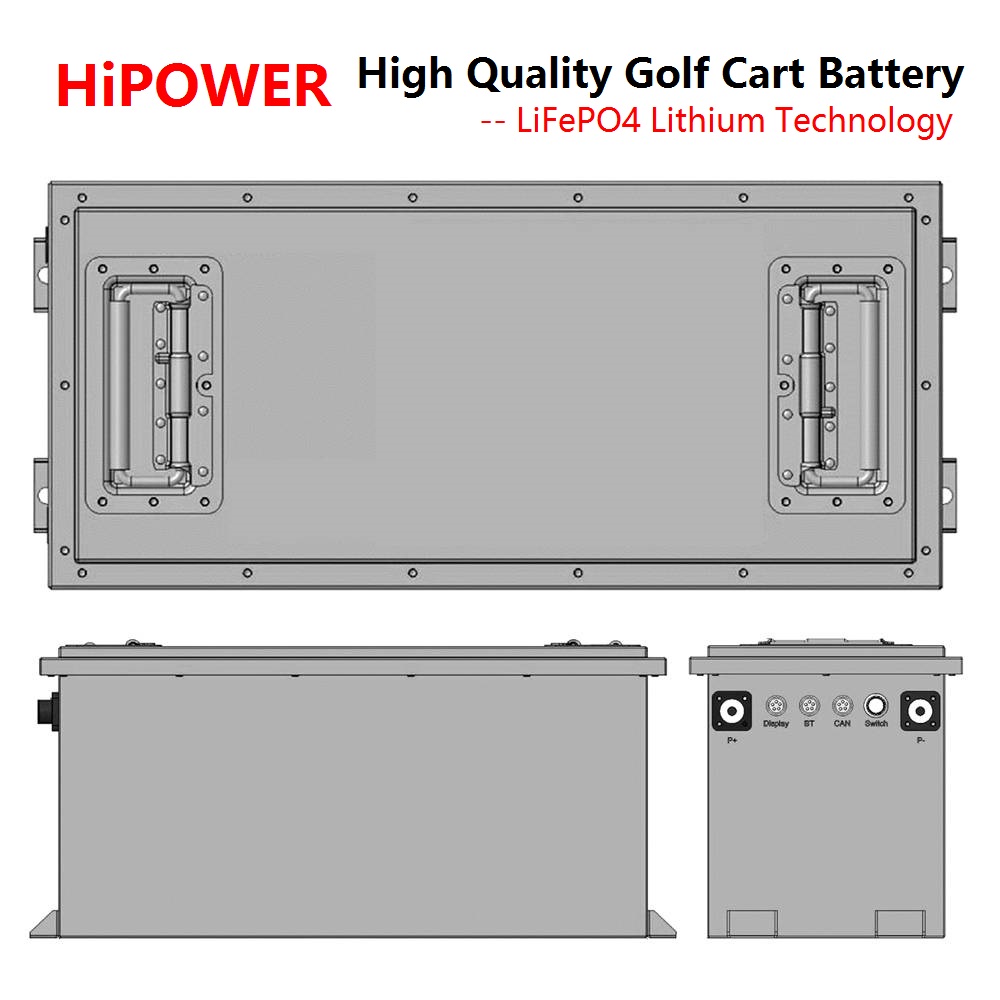

Dimensions (Approx.): 740x320x246mm or Customized
Weight (Approx.): 75kgs
Terminal Type: M8, or Anderson, or Customized
Series Connection: No
Parallel Connection: Yes, 2PCS Max.
Bluetooth: Yes

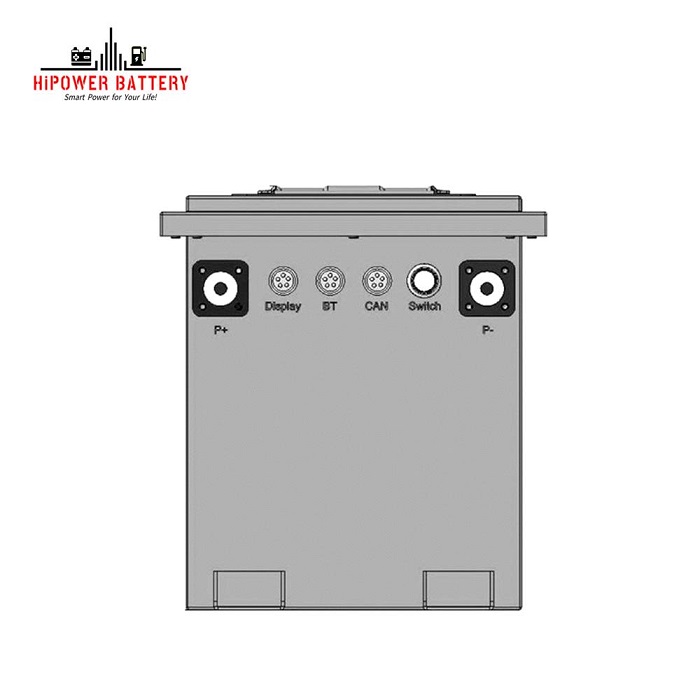

Communication: CAN/ RS485/ RS232 (Optional)
Charger: Optional
Cycle Life: 5000+ Cycles
IP Rating: IP67
Enclosure: Powder Coated Steel Case
Self Discharge: < 3% per Month
Temperature Range:
Charge Temperature: 0℃~ 55℃ (32F ~ 131F)
Discharge Temperatures: -20℃~ 60℃ (-4F ~ 140F)
Storage Temperatures: -10 ℃ to 35 ℃ (14F to 95F)
BMS (Battery Management System) Protections:
- Over-Charge Protection
- Over-Discharge Protection
- Over-Voltage Protection
- Over-Current Protection
- Short Circuit Protection
- Low Temperature Protection
- High Temperature Protecion
- Self-Heating @ Charge Under 0℃ (Optional)
UN Shipping Class: UN38.3
Certifications:
UN38.3 (include MSDS and Shipping Cerficates)
UL (Cells) / CE / FCC / RoHS / IEC62133
HiPOWER Hot Sales Golf Cart Batteries:
|
HiPOWER Lithium Golf Cart Batteries Series |
||||||||
|
Model |
Battery Type |
Nominal Voltage |
Nominal Capacity |
Energy |
Max. Cont. Working Current |
Peak Working Current |
Dimensions |
Weight |
|
HPEV3660 |
LiFePO4 |
38.4V |
60Ah |
2304Wh |
150A |
300A (<10S) |
340x259x280mm |
27kgs |
|
HPEV36100 |
LiFePO4 |
38.4V |
100Ah |
3840Wh |
200A |
600A (<10S) |
340x259x280mm |
34kgs |
|
HPEV36105 |
LiFePO4 |
38.4V |
105Ah |
4032Wh |
200A |
600A (<10S) |
340x259x280mm |
34kgs |
|
HPEV36160 |
LiFePO4 |
38.4V |
160Ah |
6144Wh |
200A |
600A (<10S) |
600x350x232mm |
58kgs |
|
HPEV36200 |
LiFePO4 |
38.4V |
200Ah |
7680Wh |
200A |
500A (<10S) |
600x350x232mm |
72kgs |
|
HPEV4860 |
LiFePO4 |
51.2V |
60Ah |
3072Wh |
150A |
300A (<10S) |
340x259x280mm |
35kgs |
|
HPEV48100 |
LiFePO4 |
51.2V |
100Ah |
5120Wh |
200A |
600A (<10S) |
560x248x271mm |
46.3kgs |
|
HPEV48105 |
LiFePO4 |
51.2V |
105Ah |
5376Wh |
200A |
600A (<10S) |
560x248x271mm |
46.3kgs |
|
HPEV48160 |
LiFePO4 |
51.2V |
160Ah |
8192Wh |
200A |
600A (<10S) |
609x308x271mm |
73kgs |
|
HPEV48200 |
LiFePO4 |
51.2V |
200Ah |
10240Wh |
200A |
500A (<10S) |
675x450x250mm |
115kgs |
|
HPEV73100 |
LiFePO4 |
73.6V |
100Ah |
7360Wh |
200A |
600A (<10S) |
560x305x264mm |
72kgs |
|
HPEV73105 |
LiFePO4 |
73.6V |
105Ah |
7728Wh |
200A |
600A (<10S) |
560x305x264mm |
72kgs |
|
HPEV73160 |
LiFePO4 |
73.6V |
160Ah |
11776Wh |
200A |
600A (<10S) |
800x339x230mm |
96kgs |
|
HPEV76100 |
LiFePO4 |
76.8V |
100Ah |
7680Wh |
200A |
500A (<11S) |
740x320x246mm |
75kgs |
|
HPEV76105 |
LiFePO4 |
76.8V |
105Ah |
8064Wh |
200A |
600A (<10S) |
740x320x246mm |
75kgs |
|
HPEV76160 |
LiFePO4 |
76.8V |
160Ah |
12288Wh |
200A |
600A (<10S) |
760x388x239mm |
125kgs |
Common Golf Cart Connectors:
HiPOWER Battery Certificates:
HiPOWER Battery Application Scenarios:
HiPOWER Battery Proction Lines:
Lifepo4 12V 180Ah Lithium Golf
Lifepo4 12V 180Ah Rechargeable Lithium Iron Battery Pack for Golf cart
Lifepo4 12V 200Ah Lithium Golf
Lifepo4 12V 200Ah Rechargeable Lithium Iron Battery Pack for Golf cart
Lifepo4 12V 210Ah Lithium Golf
Lifepo4 12V 210Ah Rechargeable Lithium Iron Battery Pack for Golf cart
