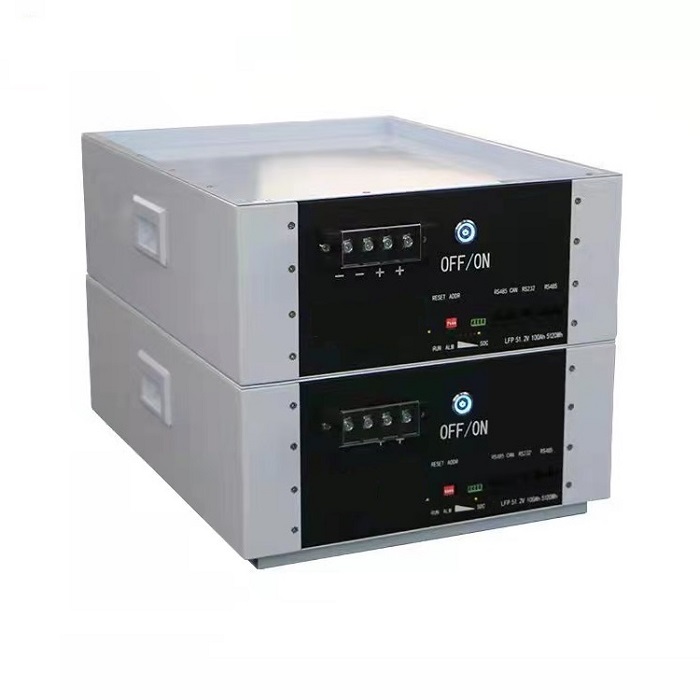

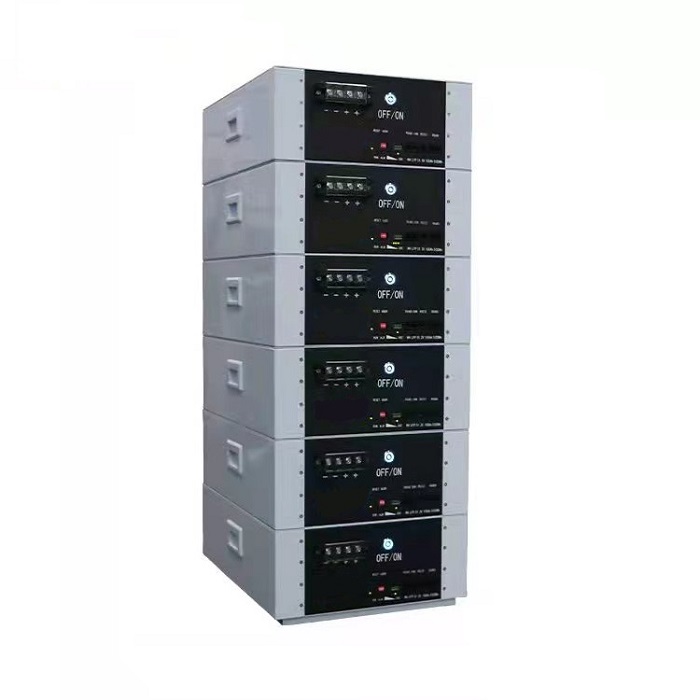

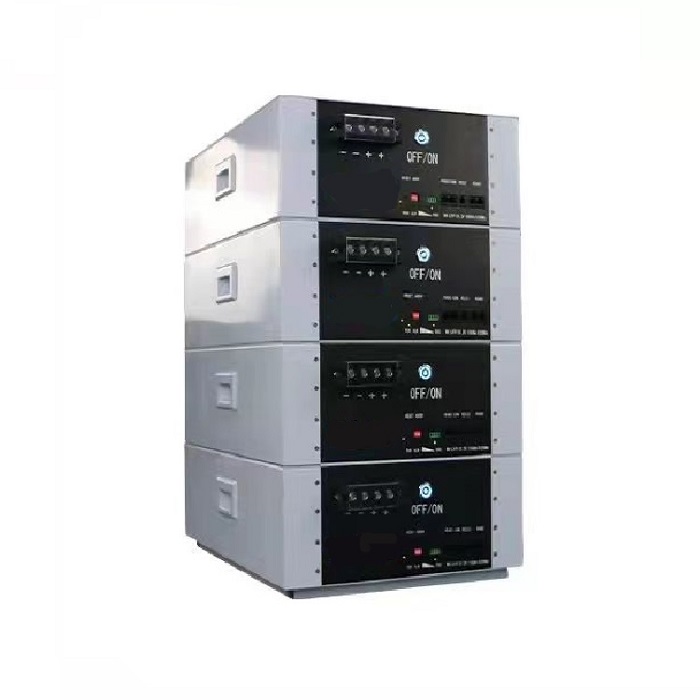

Stacked Type Lithium Battery Systems

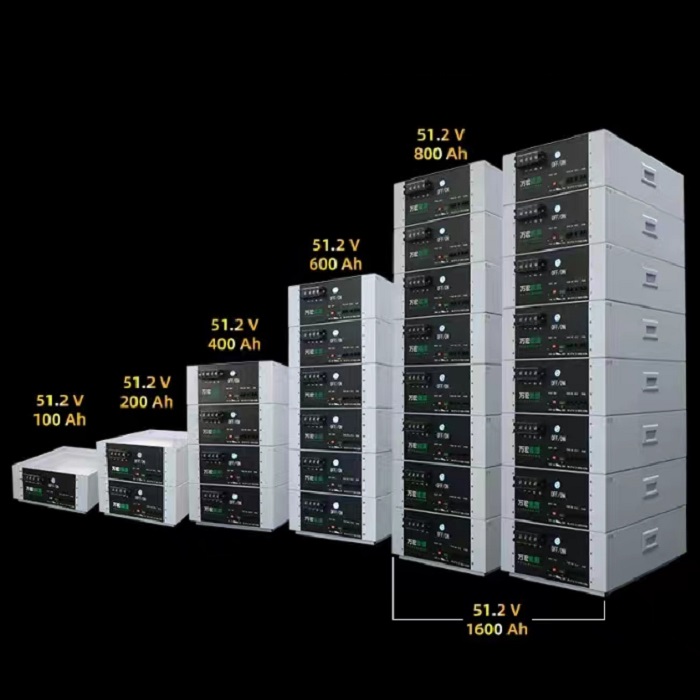

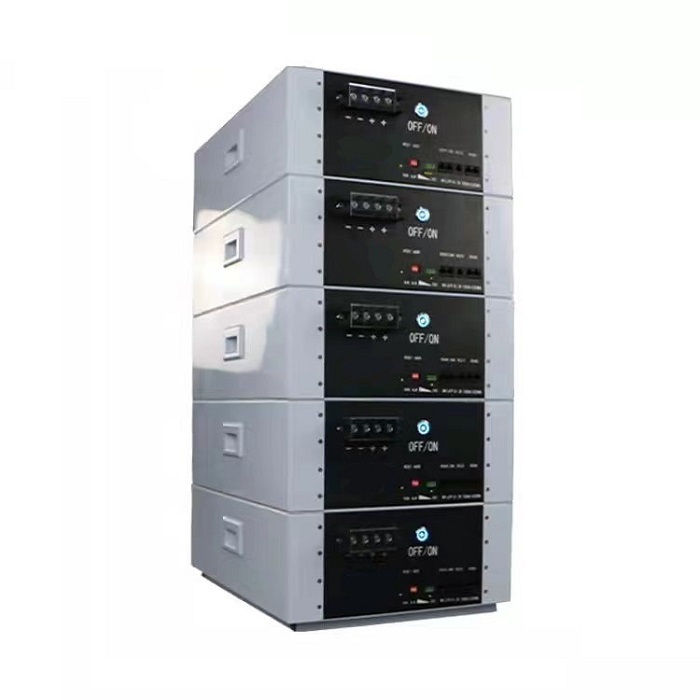

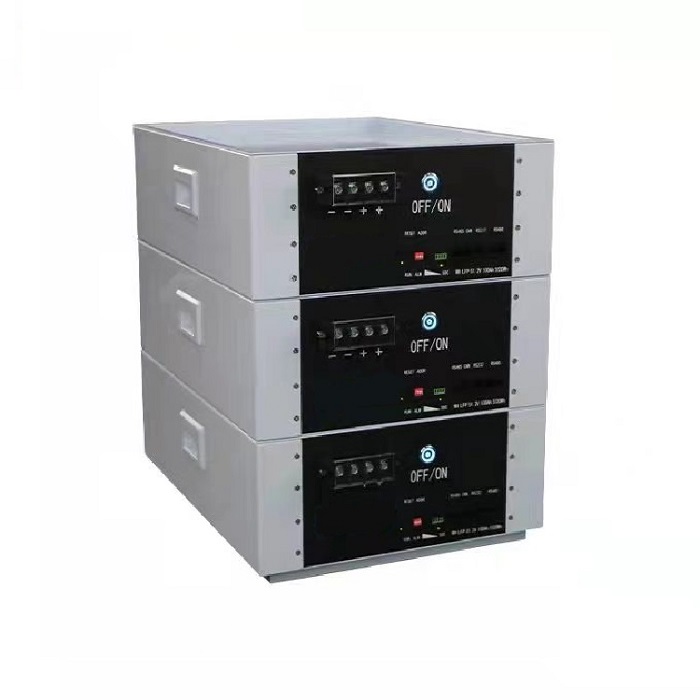

Stackable LiFePO4 Battery 48V 100Ah Support 16pcs Connecting in Parallel to 1600Ah

Energy: 5120Wh
BMS: 50A/100A
Cycle Life: >3000cycles
Communication: RS485/323/CAN
Product description: Stackable LiFePO4 Battery 48V 100Ah Support 16pcs Connecting in Parallel to 1600Ah
INQUIRY

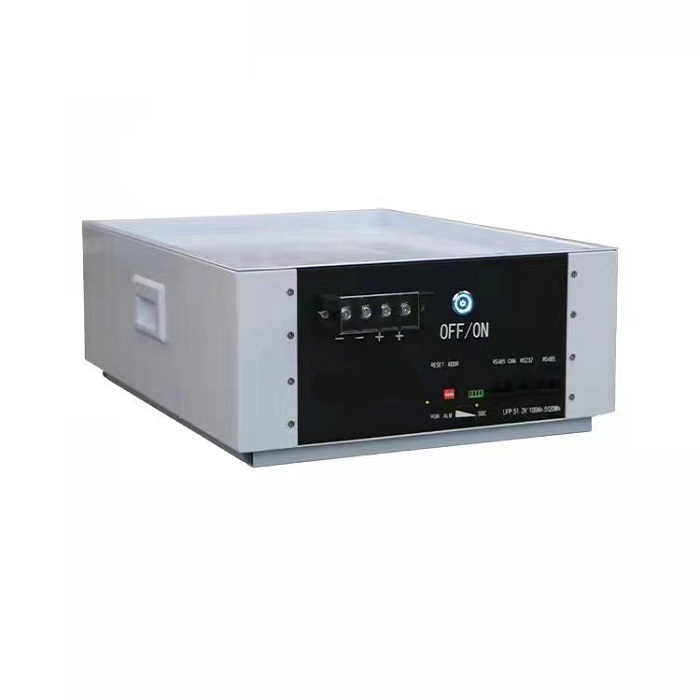

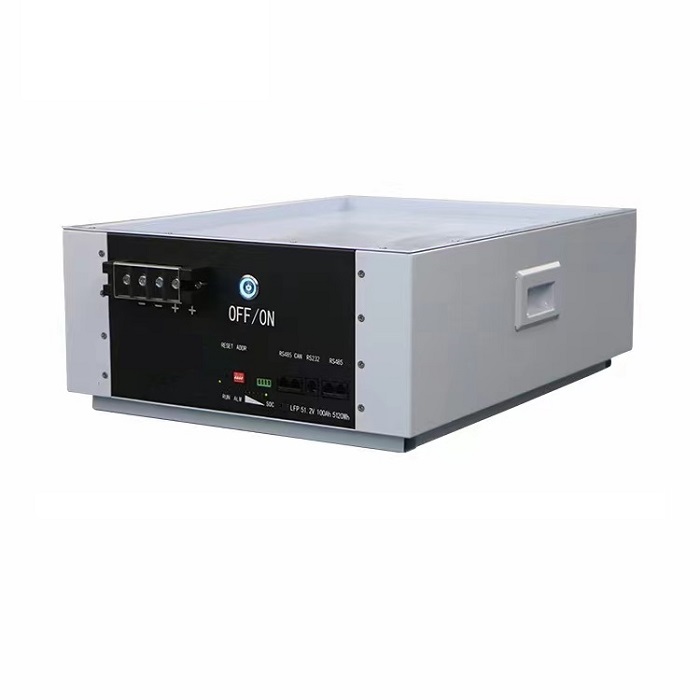

Stackable LiFePO4 Battery 48V 100Ah Support 16pcs Connecting in Parallel to 1600Ah

Specifications

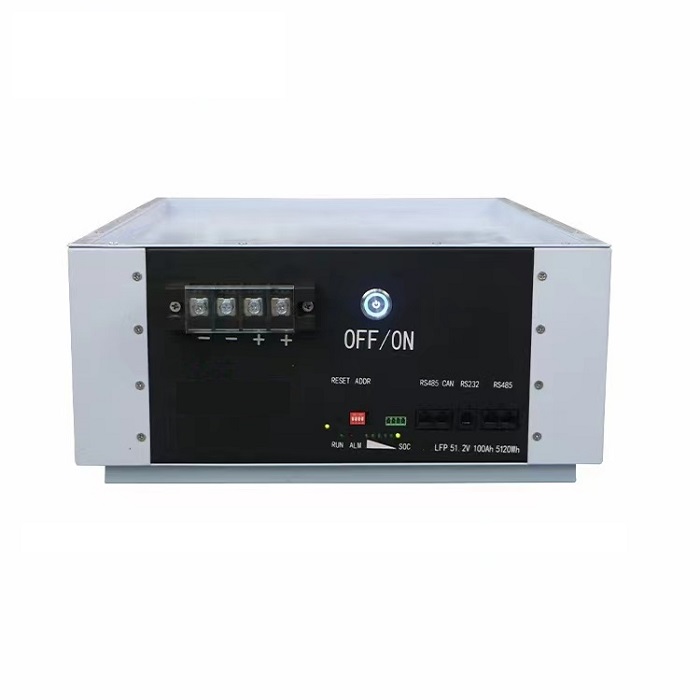

Model	LiFePO4 Battery 48V 100AH
Electrical Characteristics
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Minimum Capacity	100Ah
Energy	5120Wh
Cycle Life	3000 cycles
Months Self Discharge	<3%
Efficiency of Charge	100% @0.5C
Efficiency of Discharge	96~99% @0.5C
BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Communication Port	CAN, RS485
Support Connections	Support max.16pcs battery packs in Parallel
Standard Charge and Discharge
Charge Voltage	57.6-58.4V
Charge Mode	0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge Current	20A
Max. Charge Current	50A
Max Continuous Discharge Current	100A (Can be customized)
Peak Discharge Current	180A 1-3S
Discharge Cut-off Voltage	40V±0.5V
Mechanical
Shell Material	SPCC
Approx. Dimensions	L550xW475xH230mm
Approx. Weight	48kgs
Terminal Type	4Pin 600V100A connector
Environmental
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class	IP20
