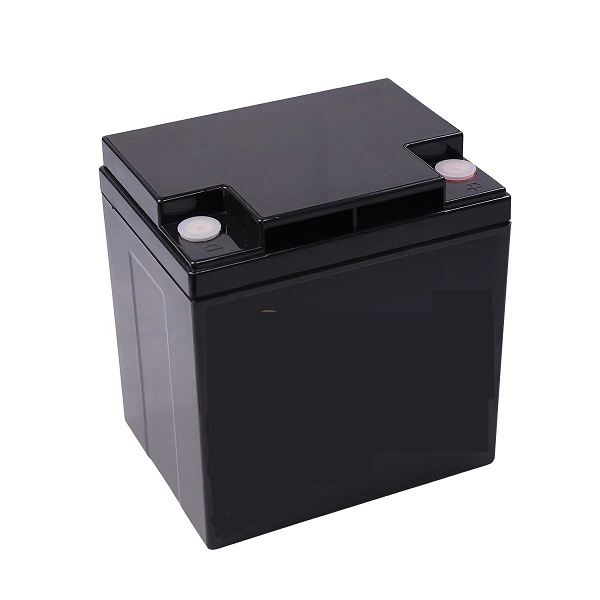

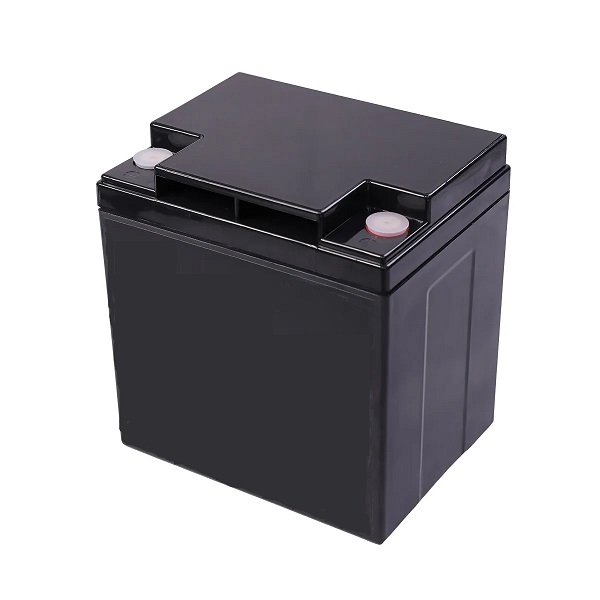

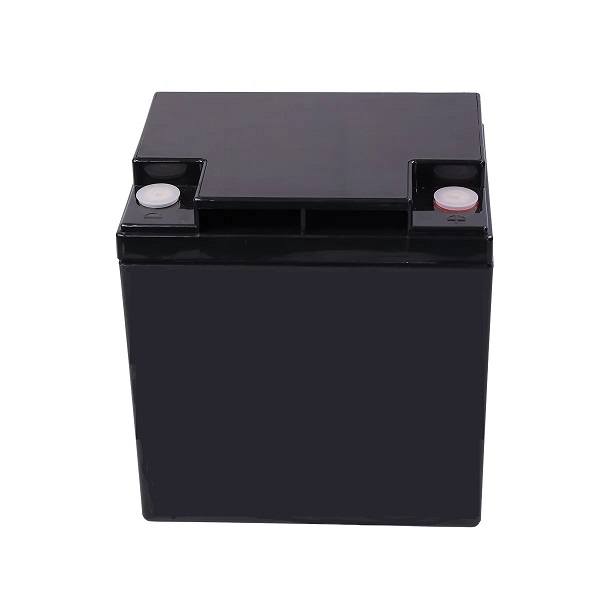

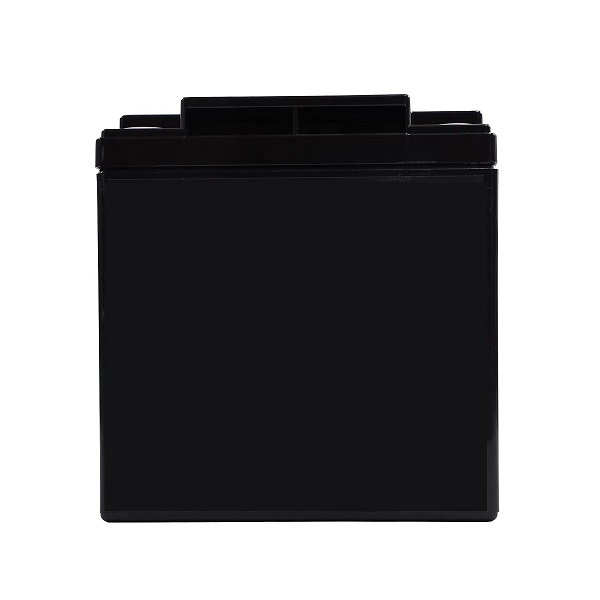

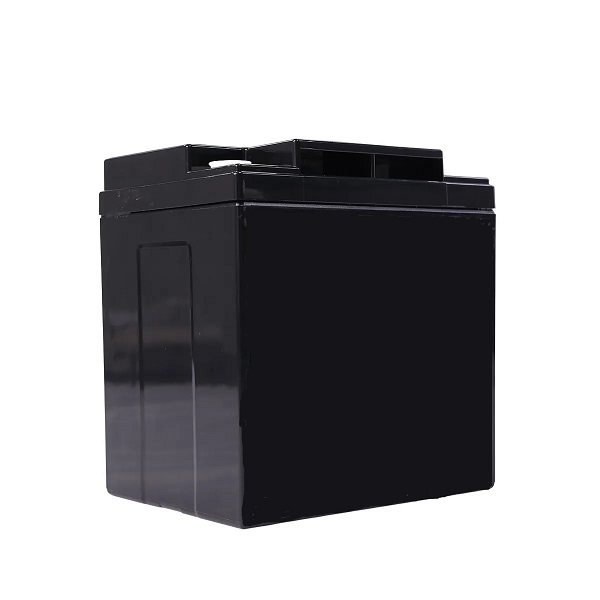

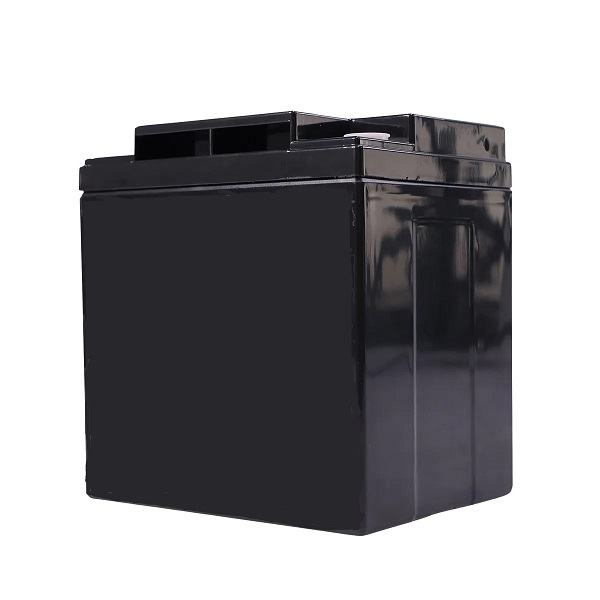

12V 30AH Deep Cycle LiFePO4 Lithium Battery for VRLA LEAD ACID BATTERY Replacement
Specification:
|
Electrical Characteristics |
Nominal Voltage |
12.8V |
|
Nominal Capacity |
30Ah |
|
|
Minimum Capacity |
30Ah |
|
|
Energy |
384Wh |
|
|
Cycle Life |
3000 cycles |
|
|
Months Self Discharge |
<3% |
|
|
Efficiency of Charge |
100% @0.5C |
|
|
Efficiency of Discharge |
96~99% @0.5C |
|
|
BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
|
|
Standard Charge |
Charge Voltage |
14.2-14.6V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
|
|
Charge Current |
6A |
|
|
Max. Charge Current |
30A |
|
|
Standard Discharge |
Max Continuous Discharge Current |
30A |
|
Peak Discharge Current |
90A±0.5A 0.5-1.5S |
|
|
Discharge Cut-off Voltage |
10V±0.5V |
|
|
Environmental |
Charge Temperature |
0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
|
Storage Temperature |
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
|
|
IP Class |
IP65 |
|
|
Mechanical |
Plastic Case |
ABS |
|
Approx. Dimensions |
Size: 166x175x125mm |
|
|
Approx. Weight |
3.5kgs |
|
|
|
|
Remarks:
1. Warranty: 3 Years
2. OEM/ODM accepted, can supply sample(s) for test
3. Factory supplied directly, accept small qty order
4. Capable with various shipping methods, by air, by sea, by train, with FOB, CIF, DDP or DDU service
Applications:
Solar/Wind Energy Storage Application
Back-up Power for UPS/ EPS
Low Speed Electric Vehicles, i.e. RV, Caravan, Motor home
Marine/fishing Boats
Telecommunication
DC Power Supply
Auto Control System
Power Tools
Electric Toys
Features of Our LiFePO4 Battery:
• High current resistant
• Perfect replacement to lead battery
• Built-in BMS
• Very light weight
• Fast charging
• High intrinsic safety
• Can be used in all positions
• Wide Temperature: -20 ℃ to 60 ℃ (-4F to 140F)
• Over 3000 cycles at 90% discharge
• Lifespan up to 10 years
• 100% maintenance free
• Environmentally friendly, no lead, no acid
• Recyclable
