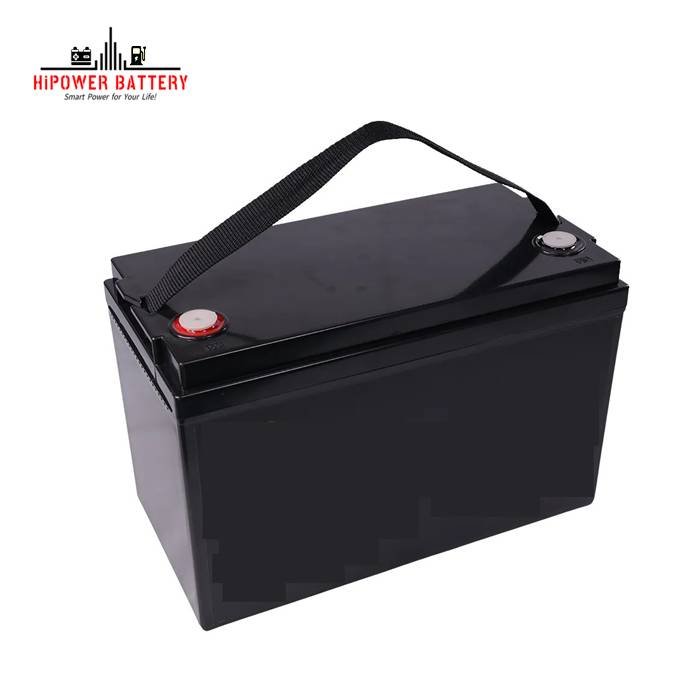

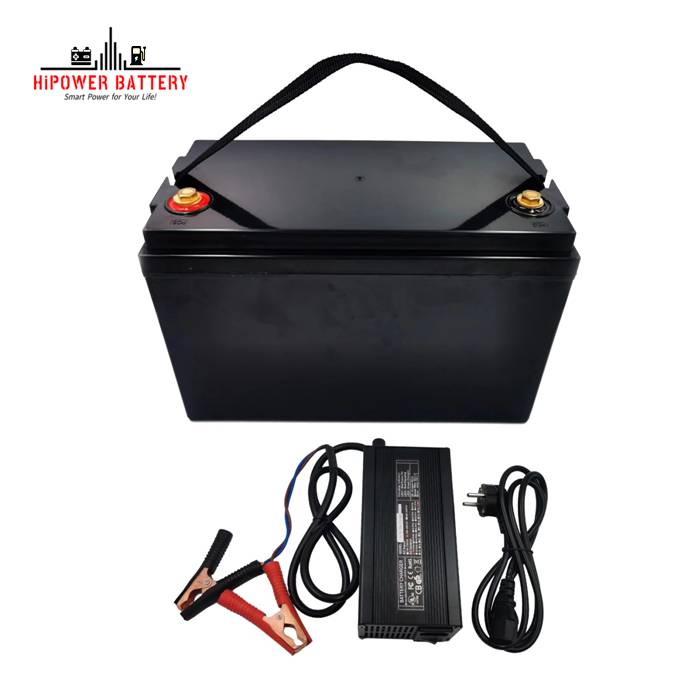

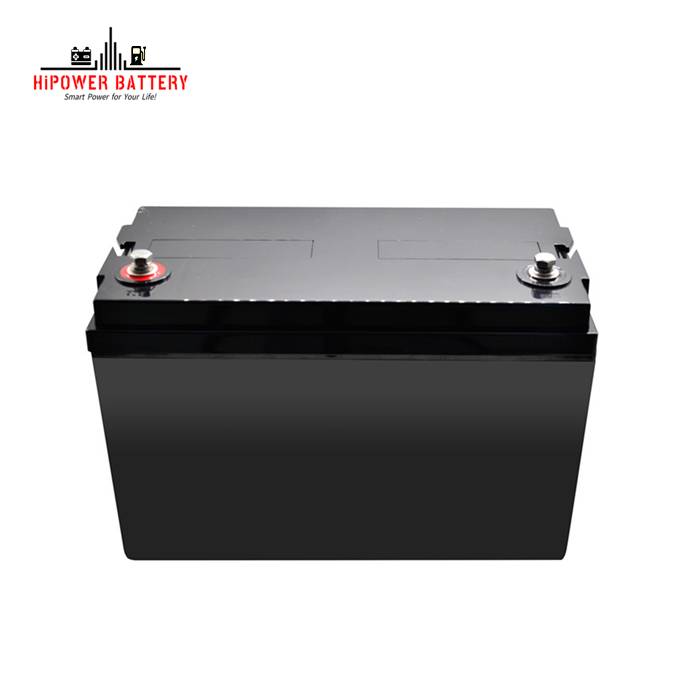

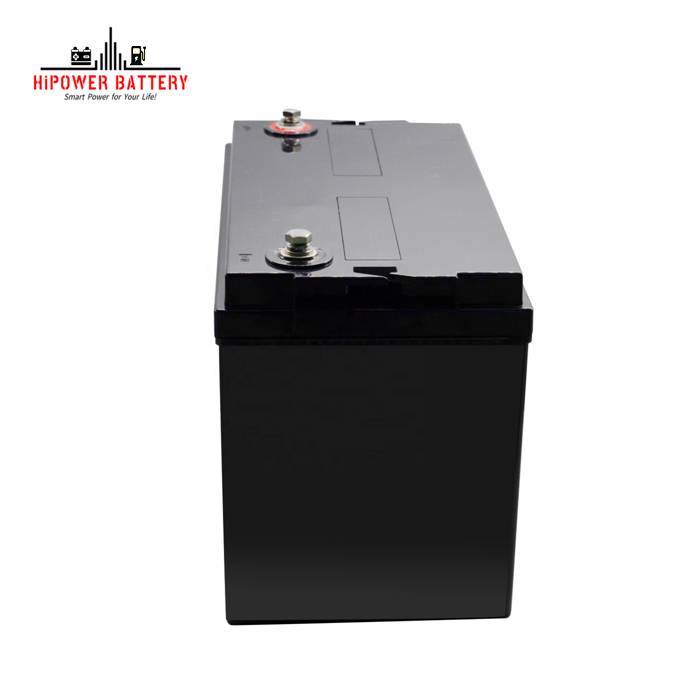

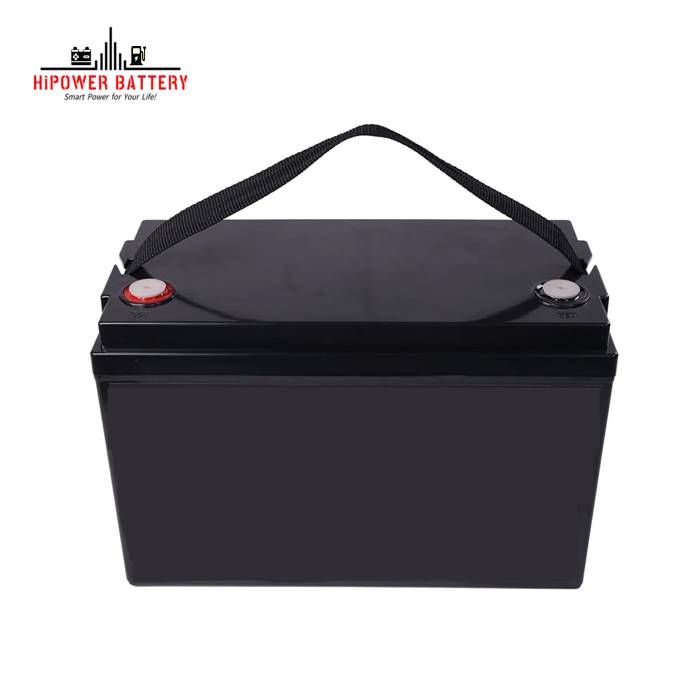

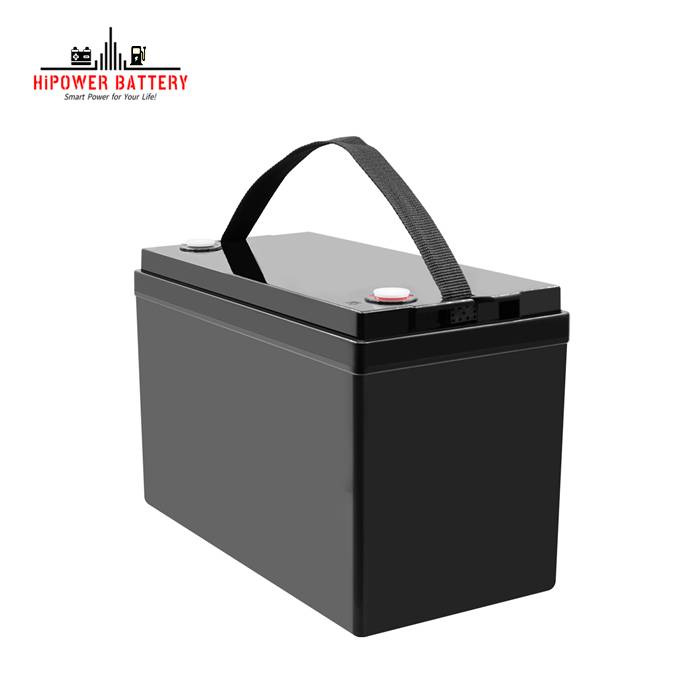

LiFePO4 RV Battery 12V 100Ah

SPECIFICATIONS:

Battery Model: LiFePO4 Battery 12V 100Ah

Nominal Voltage: 12.8V

Nominal Capacity: 100Ah

Stored Energy: 1280Wh

Self-discharge Rate: < 3% /months

Efficiency of Charge: 100% @0.5C

Efficiency of Discharge: 96~99% @0.5C

Cycle Life: >5000 cycles

Charging Voltage: 14.2-14.6V

Charging Mode: 0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV)

Standard Charging Current: 10A

Max Charging Current: 100A

Discharging Voltage: 10V-14.6V

Max. Continuous Discharging Current: 100A or Customized

Peak Discharging Current: 300A (<5s)

Discharge Cut-off Voltage: 10V±0.5V

Housing: ABS Plastic Case

Color: Black, or Customized

Dimension: 329x172x214mm (12.95''x6.77''x8.43'')

Weight: About 11kgs (24.25lbs)

IP Class: IP65

Battery Indicator: Optional

Bluetooth: Yes

Connection in Serial: Yes, Max. 4PCS to 48V

Connection in Parallel: Yes, Suggest Max. 4PCS.

Charge Temperature: 32℉ to 131℉(0℃ to 55℃)

Discharge Temperature: -4℉to 140℉(-20℃ to 60℃)

Storage Temperature: 14℉ to 113℉ (-10℃ to 45℃)

Charge Temperature with Heating Function: -4℉to 131℉(-20℃ to 55℃) (Optional)

BMS High Temperature Cut-Off: 167℉ (75℃)

Reconnect Temperature: 122℉ (50℃)

Features:

- 5-8 Years Manufacturer Warranty

- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery

- Grade A LiFePO4 EV Cell

- Built-in Smart Battery Management System (BMS)

- 5000+ Cycle life & Maintenance-free

- Over charge and over discharge protection

- Over current and short circuit protection

- High & low temperature protection

- IP65 Rated, dust and waterproof

- Internal heating allows for charging in below freezing conditions(Optional

Applications:

- RV, Caravan, Camper, Motor home;

- Trolling Motors

- Fishing Boat, Houseboat & other Marine Applications

- Mobile Power Supply

- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.

- Lead Acid Battery Replacement
