SPECIFICATIONS:
|

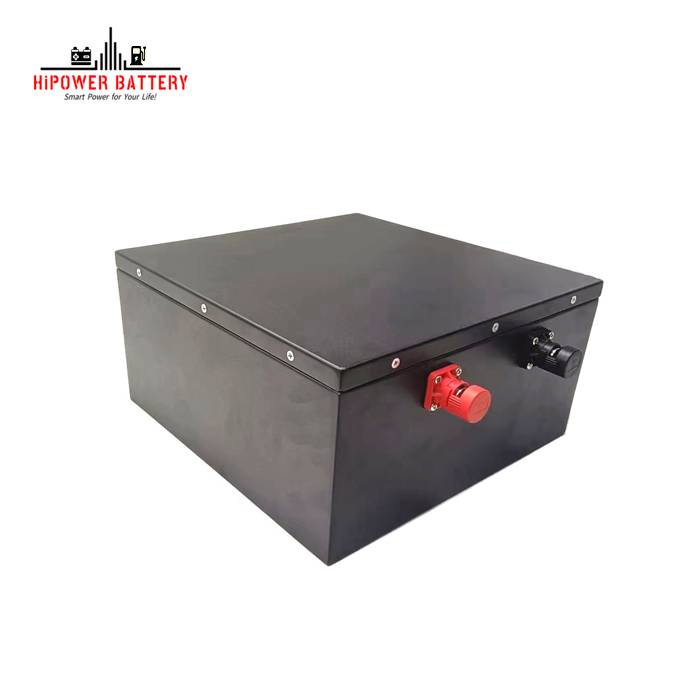

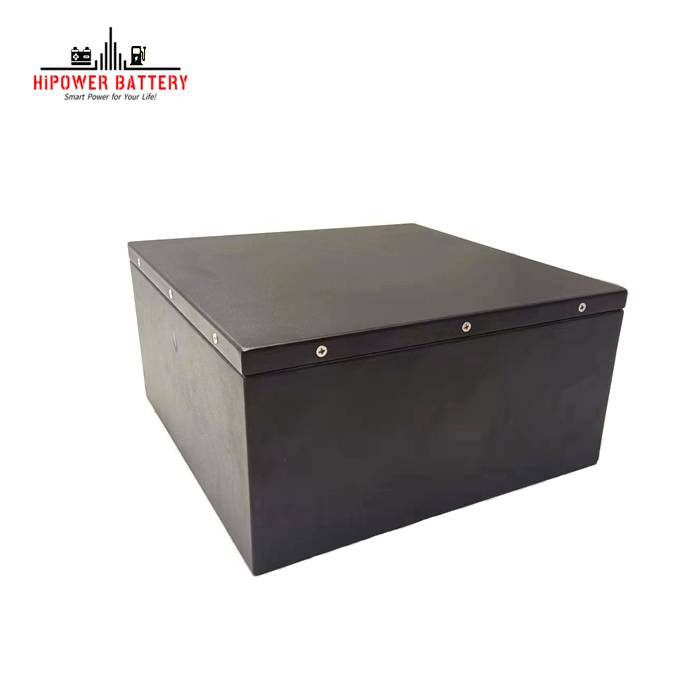

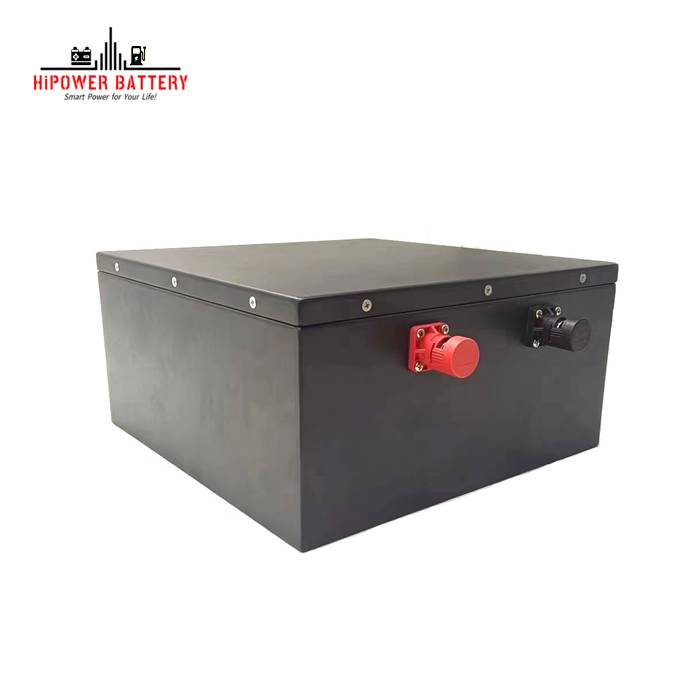

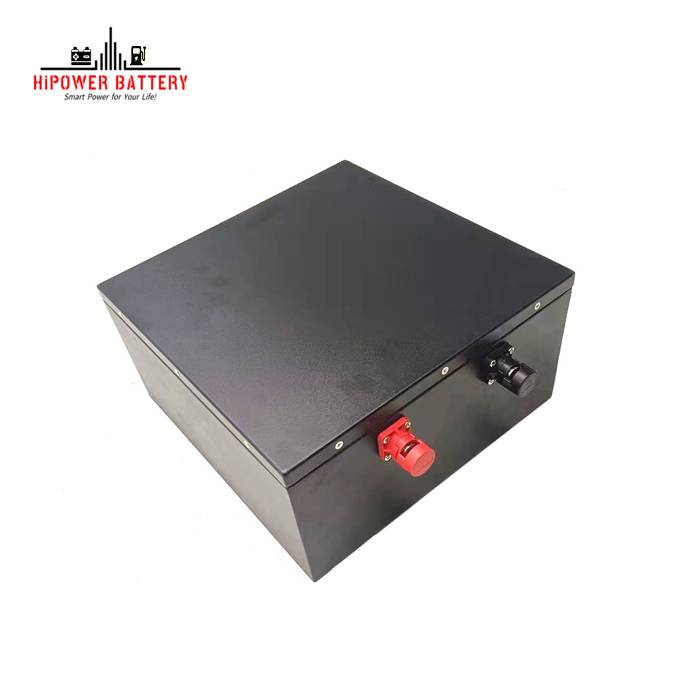

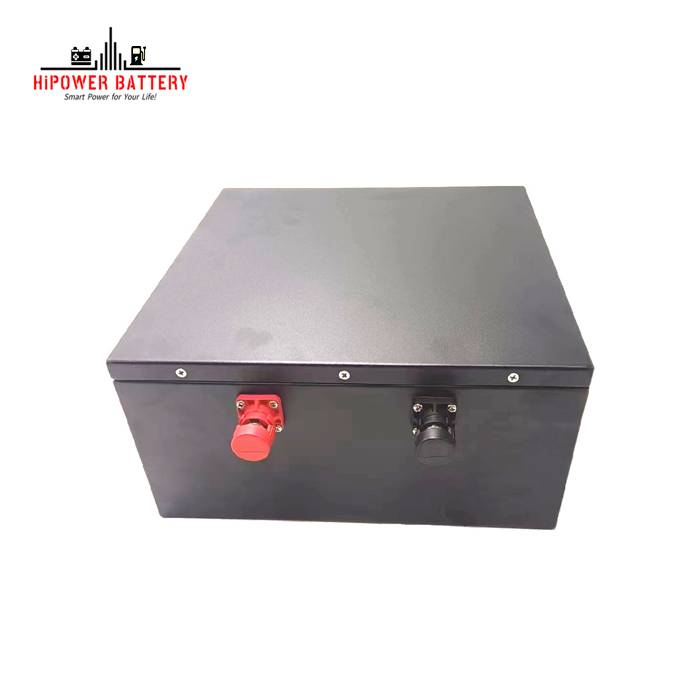

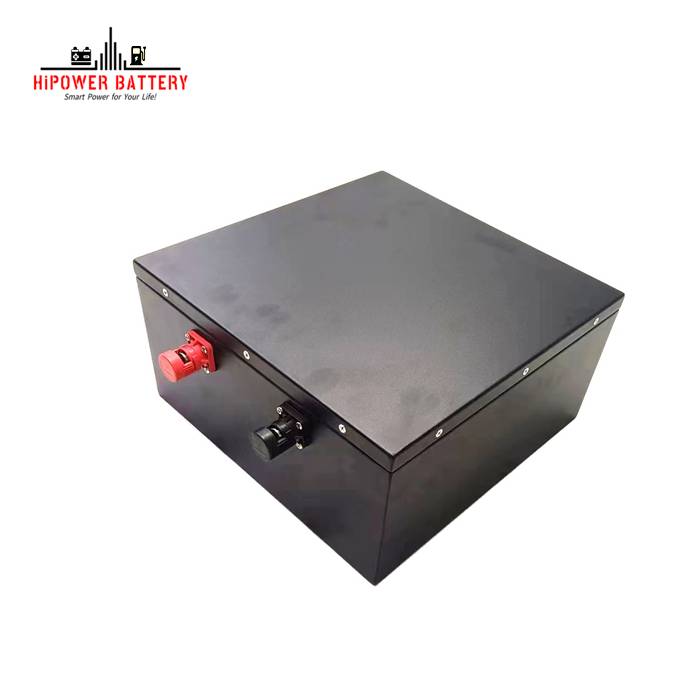

Model: HPES12200 (HiPOWER LiFePO4 Battery 12V 200Ah 2560Wh) |
|
|
ELECTRICAL SPECIFICATIONS |
|
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
200 Ah |
|
Rated Energy |
2560Wh |
|
Capacity @ 20A |
600 min |
|
Cell Type - Chemistry |
Lithium Iron Phosphate (LiFePO4) |
|
Efficiency |
99% |
|
Self Discharge |
<3% per Month |
|
Cycle Life |
5000 times |
|
Support Serial Connection |
4pcs Max. |
|
Support Parallel Connection |
4pcs Max. |
|
DISCHARGE SPECIFICATIONS |
|
|
Maximum Continuous Discharge Current |
200 A |
|
Peak Discharge Current |
500A(<5S) |
|
Recommended Low Voltage Disconnect |
11.0 V (3.75 V) |
|
BMS Discharge Voltage Cut-Off |
10.0 V (2.5 ±0.08 V) (2 s) |
|
Reconnect Voltage |
10.8 V (2.7 ±0.1 V) |
|
CHARGE SPECIFICATIONS |
|
|
Recommended Charge Current |
30 A |
|
Maximum Charge Current |
200 A |
|
Recommended Charge Voltage |
14.2 V – 14.6 V (3.55-3.65 V) |
|
BMS Charge Voltage Cut-Off |
14.6 V (3.65 ±0.025 V) (2 s) |
|
Reconnect Voltage |
14 V (3.5 ±0.05 V) |
|
Balancing Voltage |
13.6 V (3.4 ±0.025 V) |
|
TEMPERATURE SPECIFICATIONS |
|
|
Discharge Temperature |
-22 to 140 °F (-30 to 60 °C) |
|
Charge Temperature |
32 to 131 °F (0 to 55 °C), or With Heating: -4 to 131 °F (-20 to 55 °C) (Optional) |
|
Storage Temperature |
14 to 113 °F (-10 to 45°C) |
|
BMS High Temperature Cut-Off |
167 °F (75 ºC) |
|
Reconnect Temperature |
122°F (50 ºC) |
|
MECHANICAL SPECIFICATIONS |
|
|
Dimensions (L x W x H) |
320x320(353.7with terminals)x160 mm or Customized |
|
Weight |
23.0 kg |
|
Terminal Type |
M8, or Anderson, or Customized |
|
Case Material |
Metal Case |
|
Enclosure Protection/ IP Class |
IP54 |
|
BMS SPECIFICATIONS |
|
|
Main Protection Functions |
Over Charge, Over Discharge, Over Current, Over Voltage, Short Circuit and Temperature Protections |
|
Communication |
Bluetooth, CAN Bus, RS485, RS232 (Optional) |
|
Heating Function |
Optional |
|
COMPLIANCE SPECIFICATIONS |
|
|
Certifications |
UN38.3/ MSDS/ IEC/ CE/ UL/ FCC/ RoHS |
|
Shipping Classification |
UN 3480, CLASS 9 |
Features:
- 5-8 Years Manufacturer Warranty
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- 5000+ Cycle life & Maintenance-free
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature protection
- IP65 Rated, dust and waterproof
- Internal heating allows for charging in below freezing conditions(Optional
Applications:
- RV, Caravan, Camper, Motor home;
- Trolling Motors
- Fishing Boat, Houseboat & other Marine Applications
- Mobile Power Supply
- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.
- Lead Acid Battery Replacement
