SPECIFICATIONS:
|
Model |
LiFePO4 Battery 12V 480Ah |
|
Nominal Voltage |
12.8V |
|
Nominal Capacity |
480Ah |
|
Energy |
6144Wh |
|
Capacity @ 40A |
720 Min |
|
Cycle Life |
>5000 cycles |
|
Months Self Discharge |
<3% |
|
Efficiency of Charge |
100% @0.5C |
|
Efficiency of Discharge |
96~99% @0.5C |
|
Communication |
Bluetooth, CAN, RS485, RS232 (Optional) |
|
Heating Function |
Optional |
|
BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
|
Charge Voltage |
14.2-14.6V |
|
Charge Mode |
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
|
Suggest Charge Current |
30A |
|
Max. Charge Current |
200A |
|
Max Continuous Discharge Current |
300A |
|
Peak Discharge Current |
600A <5S |
|
Discharge Cut-off Voltage |
10V±0.5V |
|
Charge Temperature |
0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
Storage Temperature |
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
|
IP Class |
IP54 |
|

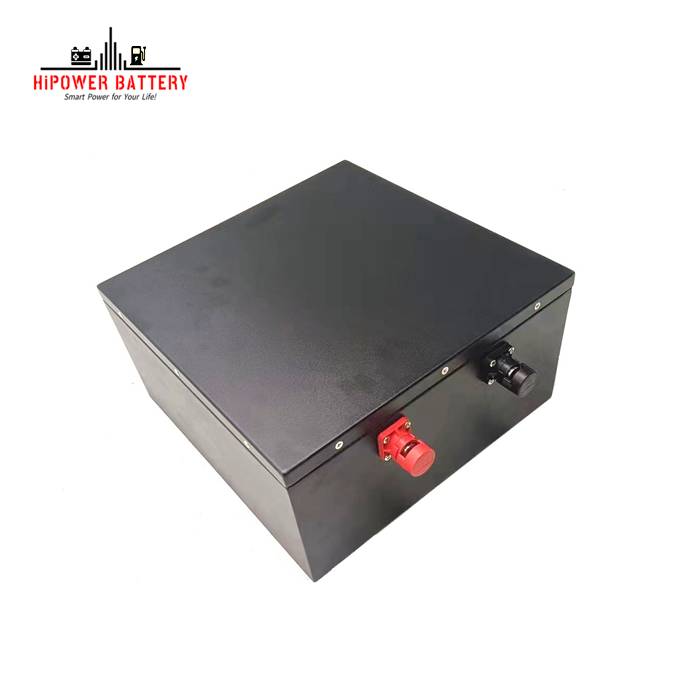

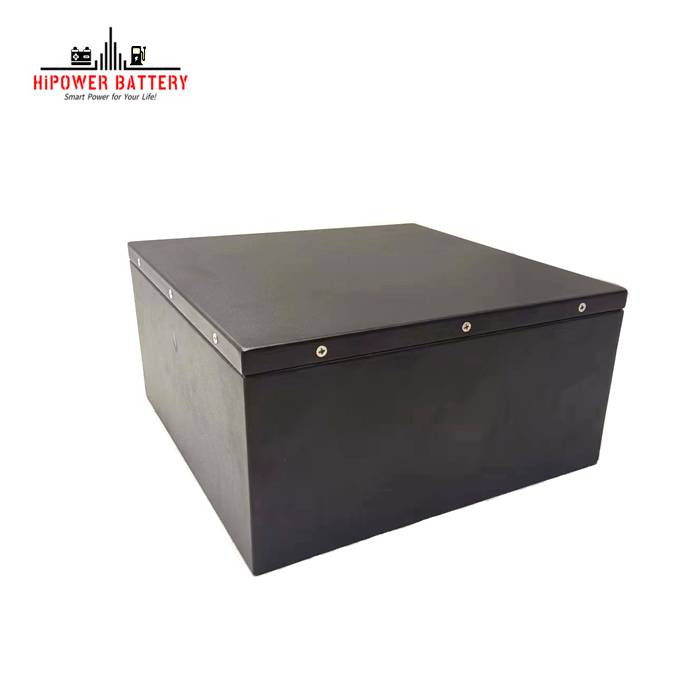

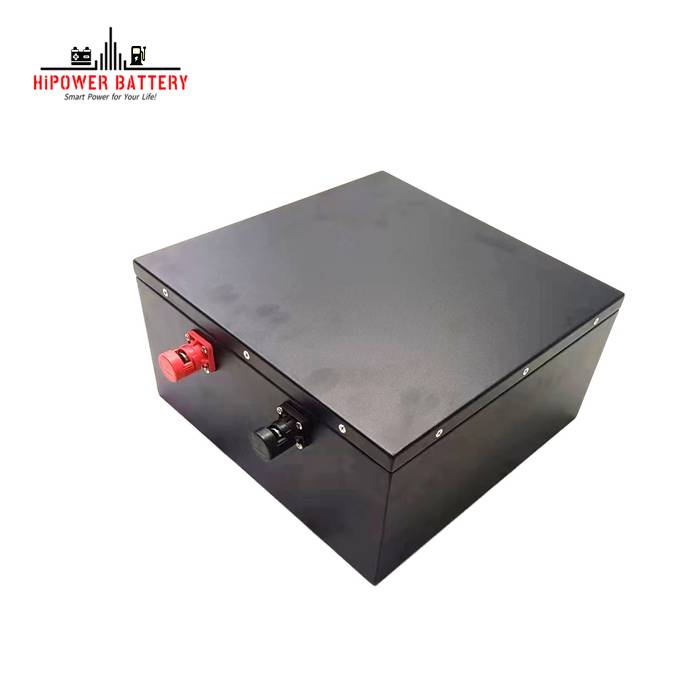

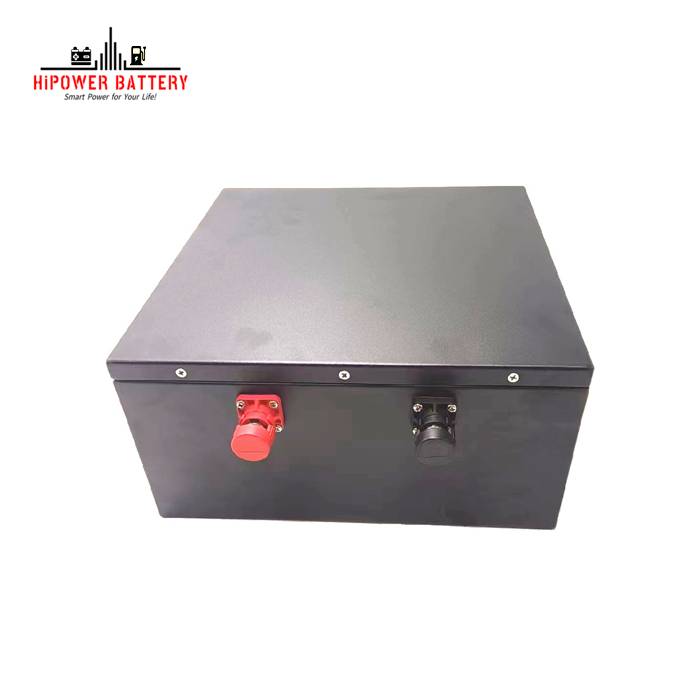

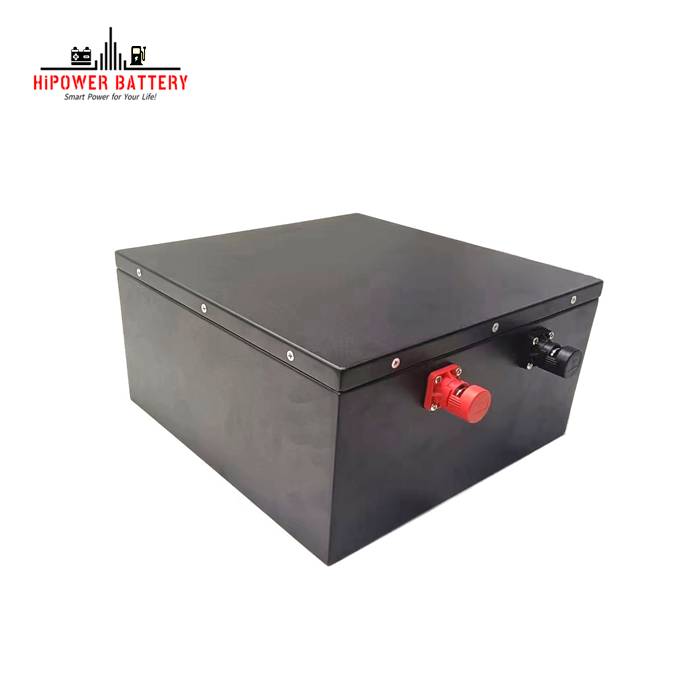

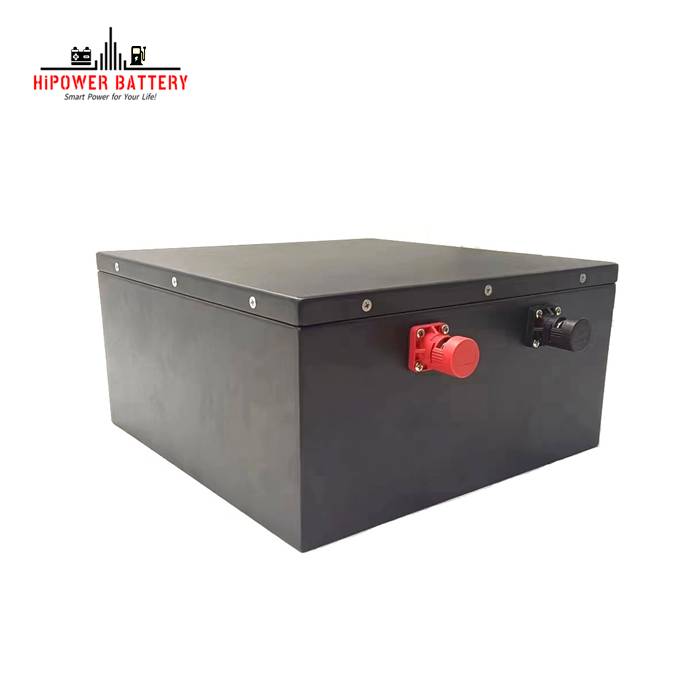

Housing |
Metal Case |
|
Approx. Dimensions |
242x310x390 mm or Customized |
|
Approx. Weight |
42kgs |
|
Battery Indicator |
Yes, or Optional |
|
Bluetooth |
Yes |
|
Connection in Serials |
Max. 4PCS to 48V |
|
Connection in Parallels |
Suggest Max. 4PCS |
Features:
- 5-8 Years Manufacturer Warranty
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- 5000+ Cycle life & Maintenance-free
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature protection
- IP65 Rated, dust and waterproof
- Internal heating allows for charging in below freezing conditions(Optional
Applications:
- RV, Caravan, Camper, Motor home;
- Trolling Motors
- Fishing Boat, Houseboat & other Marine Applications
- Mobile Power Supply
- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.
- Lead Acid Battery Replacement
