Specifications:
Model |

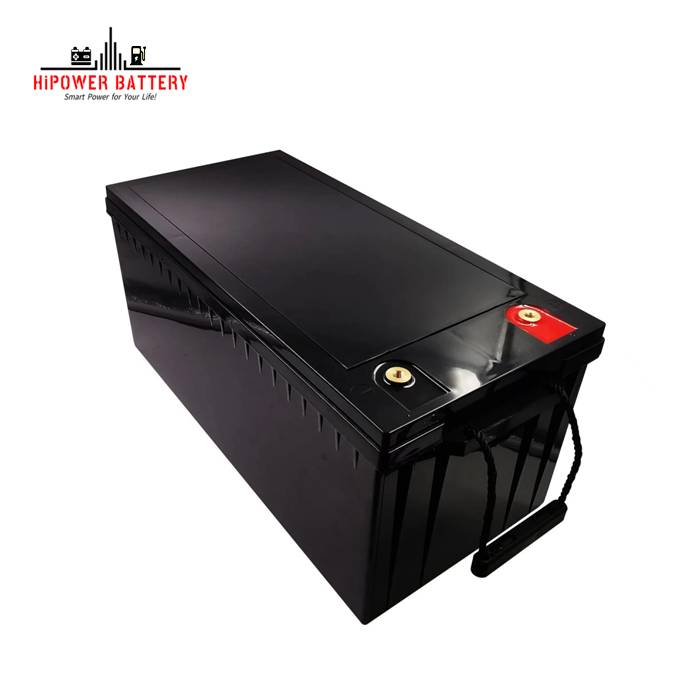

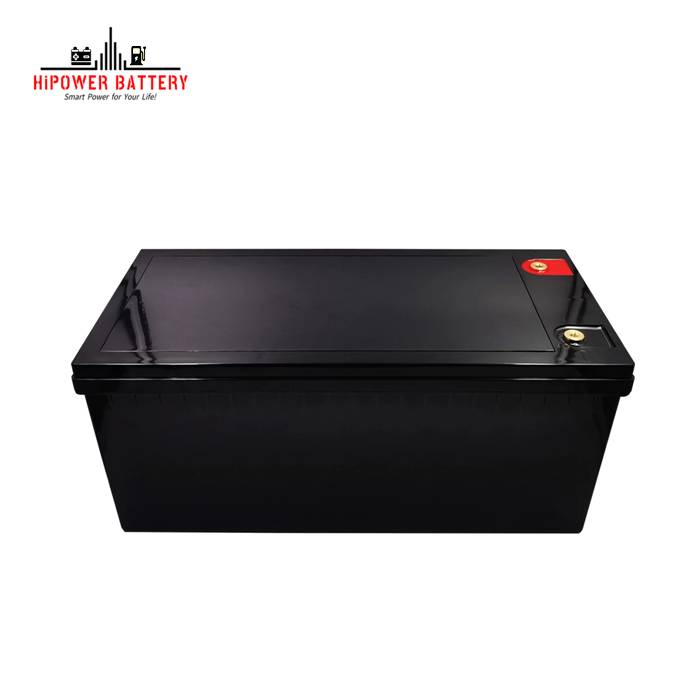

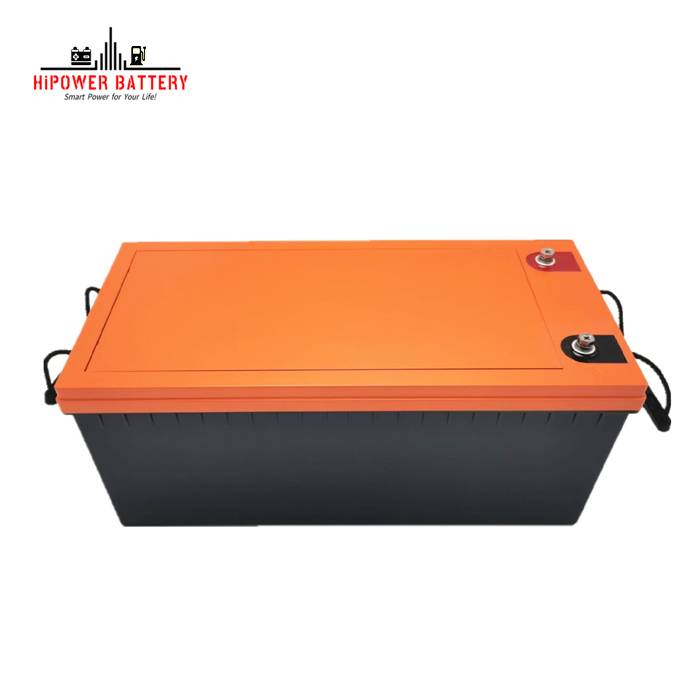

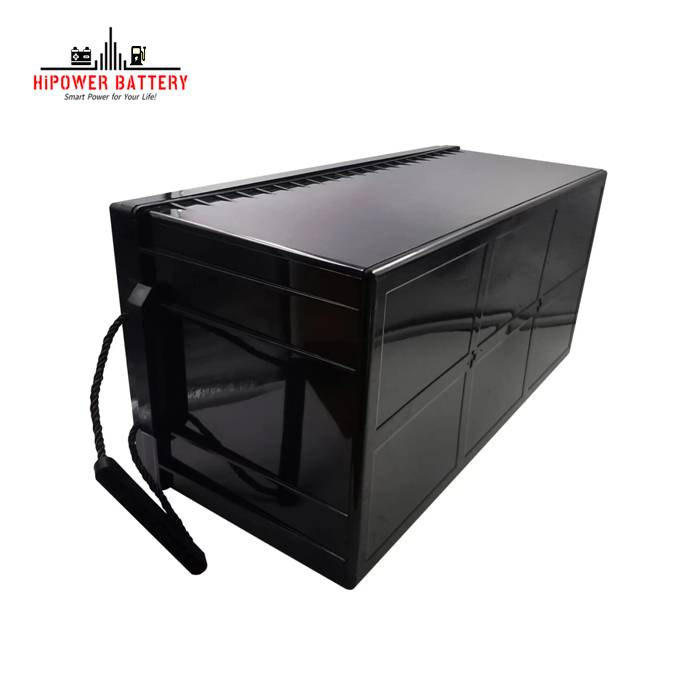

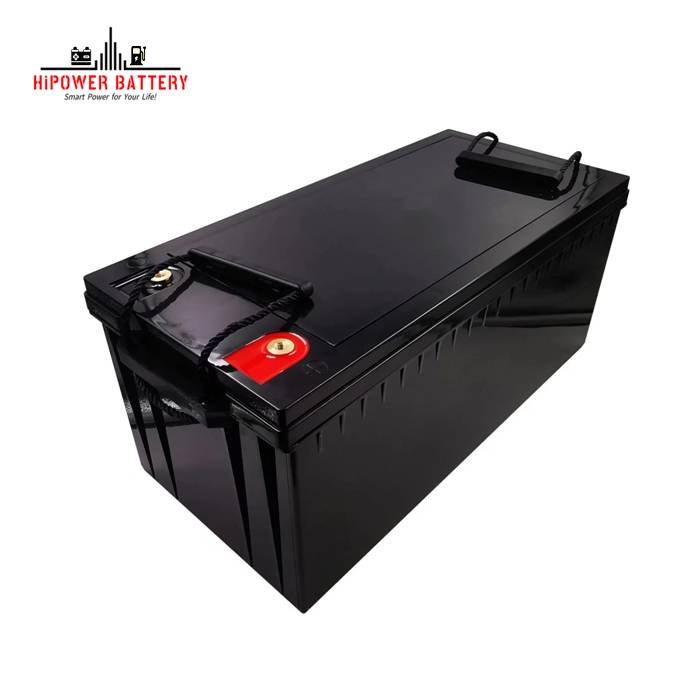

LiFePO4 Battery 12V 400Ah |
Nominal Voltage |
12.8V |
Nominal Capacity |
400Ah |
Energy |
5120Wh |
Cycle Life |
>5000 cycles |
Months Self Discharge |
<3% |
Efficiency of Charge |
100% @0.5C |
Efficiency of Discharge |
96~99% @0.5C |
BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
Charge Voltage |
14.4±0.2V |
Charge Mode |
0.2C to 14.6V, then 14.6V,charge current to 0.02C (CC/CV) |
Charge Current |
50A |
Max. Charge Current |
100A |
Max Continuous Discharge Current |
200A |
Peak Discharge Current |
500A 1-3S |
Discharge Cut-off Voltage |
10V±0.5V |
Charge Temperature |
0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
Storage Temperature |
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
IP Class |
IP65 |
Housing |
ABS Plastic Case |
Approx. Dimensions |
520x269x220mm (20.47''x10.59''x8.66'') |
Approx. Weight |
40kgs (88.18lbs) |
Applications:
* Solar/Wind Energy Storage Applications
* Back-up Power for UPS/ EPS
* RV, Caravan, Motor home
* Marine/ Yacht/ Fishing Boats
* Telecommunication/ Data Center Base
* DC Power Supply
* Auto Control System
* Power Tools
* Electric Toys
