Lifepo4 RV Battery 48V 100Ah
OEM/ODM ACCEPTED!!!
WELLCOME TO SEND YOUR REQUIREMENTS TO US FOR SOLUTIONS AND QUOTE.
SPECIFICATIONS:
Lifepo4 Lithium Batteries for Golf Cart/ Tour Cart/ Maine:
|
Battery Model
|
LiFePO4 24V 100Ah |
LiFePO4 24V 200Ah |
LiFePO4 36V 50Ah |
LiFePO4 36V 100Ah |
LiFePO4 48V 50Ah |
LiFePO4 48V 100Ah |
| Nominal Voltage | 25.6V |
25.6V |
38.4V |
38.4V |
51.2V |
51.2V |
|
Nominal Capacity |
100Ah |
200Ah |
50Ah |
100Ah |
50Ah |
100Ah |
|
Energy in kWh |
2.56kWh |
5.12kWh |
1.92kWh |
3.84kWh |
2.56kWh |
5.12kWh |
|
Charge Voltage |
28.4V-29.2V |
28.4V-29.2V |
42.6-43.8V |
42.6-43.8V |
56.8V-58.4V |
56.8V-58.4V |
|
Recommend Charge Current |
20A |
30A | 8A | 20A | 8A | 20A |
|
Max. Charge Current |
50A | 100A | 50A |
50A |
50A |
50A |
|
Max Cont. Discharge Current |
100A | 200A | 50A | 100A | 50A | 100A |
|
Peak Discharge Current |
250A (10s) |
450A (10s) |
150A (10s) |
250A (10s) |
150A (10s) |
250A (10s) |
|
Discharge Cut-off Voltage |
20V | 20V | 30V | 30V | 40V | 40V |
|
Approx. Dimensions |
522*240*218mm |
520*269*220mm |
522*240*218mm |
520*269*220mm |
522*240*218mm |
520*269*220mm |
|
Approx. Weight |
22kgs |
40kgs |
18kgs |
32kgs |
22kgs |
40kgs |
|
Serial Connection |
Max. 2pcs |
Max. 2pcs |
No |
No |
No |
No |
|
Parallel Connection |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
Max. 4pcs |
| Main Parameters | |||||
| Cycle Life | 3000 - 6000 cycles | ||||
| Design Service Life | > 10 years | ||||
| Months Self Discharge | <3% | ||||
| Efficiency of Charge | 100% @0.5C | ||||
| Efficiency of Discharge | 96~99% @0.5C | ||||
| BMS Functions | Over charge, over discharge, over current, short circuit and temperature protection | ||||
| Charge Temperature | 0℃to 55℃(32F to 131F) @60±25% Relative Humidity | ||||
| Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | ||||
| Storage Temperature | -20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity | ||||
| IP Class | IP66 | ||||
| Monitor APP | iOS and Android Apps (App Stores / Google Play), Optional | ||||
| OEM/ODM Service | Support | ||||
Features:
- 3-5 Year Manufacturer Warranty
- Deep Cycle LiFePO4 Lithium Iron Phosphate Battery
- Grade A LiFePO4 EV Cell
- Built-in Smart Battery Management System (BMS)
- 4000+ Cycle life & Maintenance-free
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature protection
- IP65 Rated, dust and waterproof
- Internal heating allows for charging in below freezing conditions(Optional
Applications:
- RV, Caravan, Camper, Golf Cart
- Trolling Motors
- Fishing Boat, Houseboat & other Marine Applications
- Mobile Power Supply
- Solar PV System, Household Energy Storage System, Backup Power Supply, UPS, EPS, ect.
- Lead Acid Battery Replacement

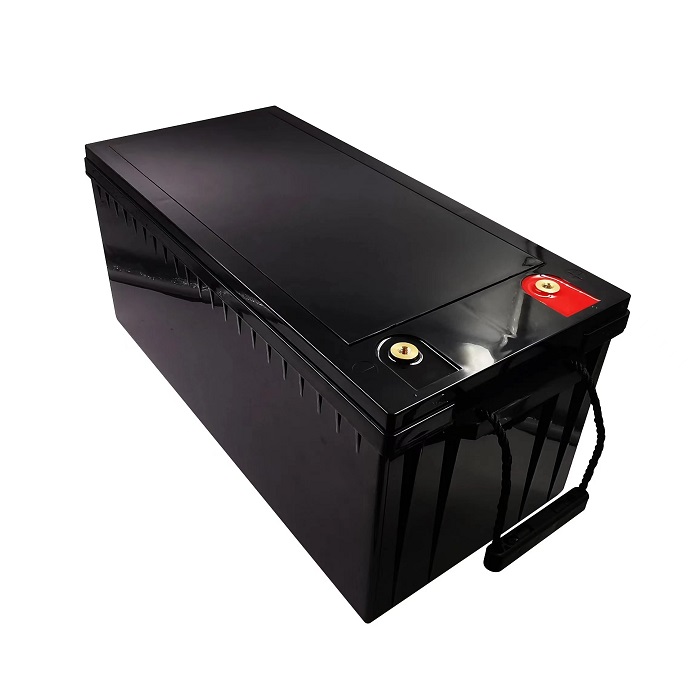

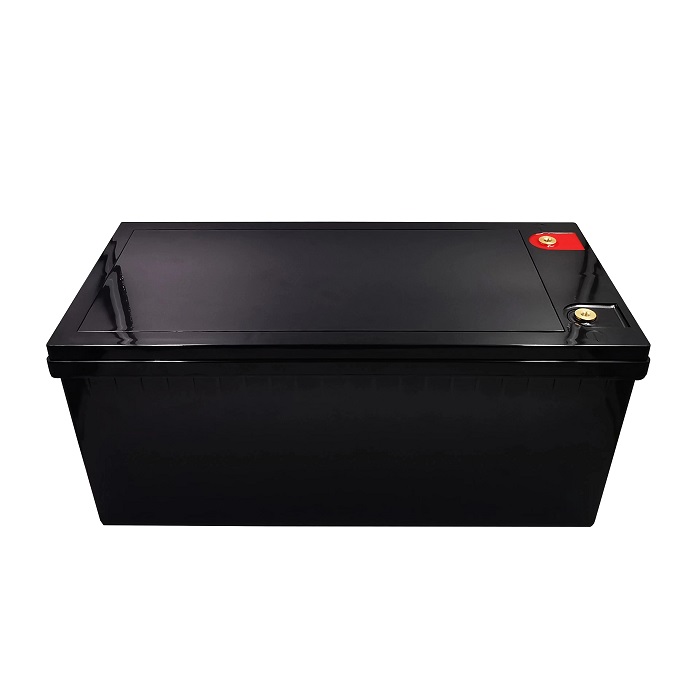

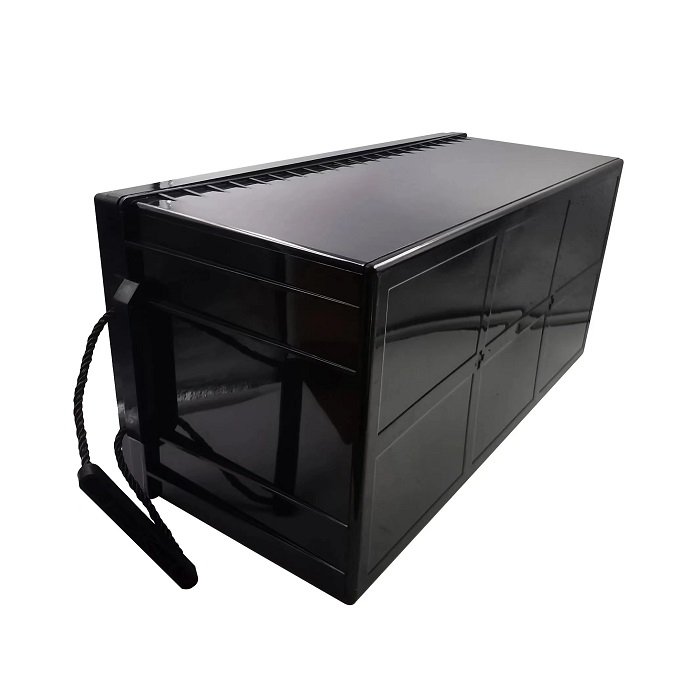

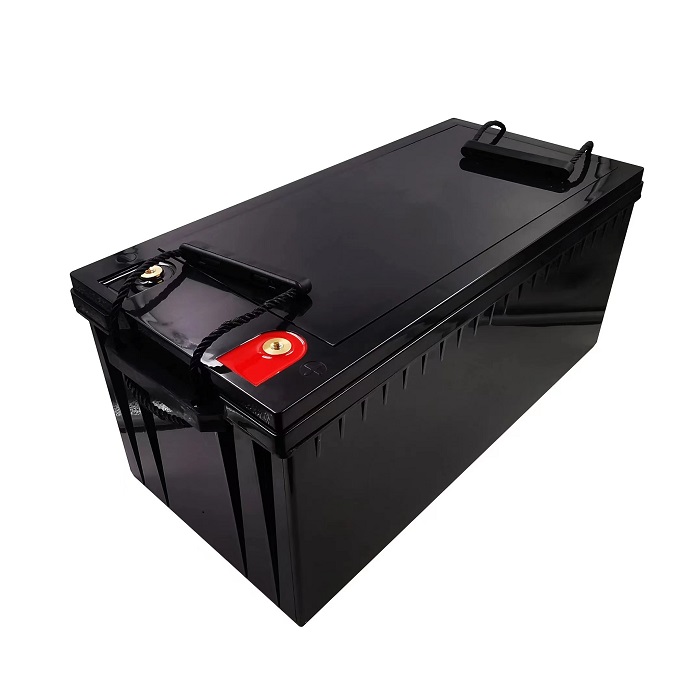

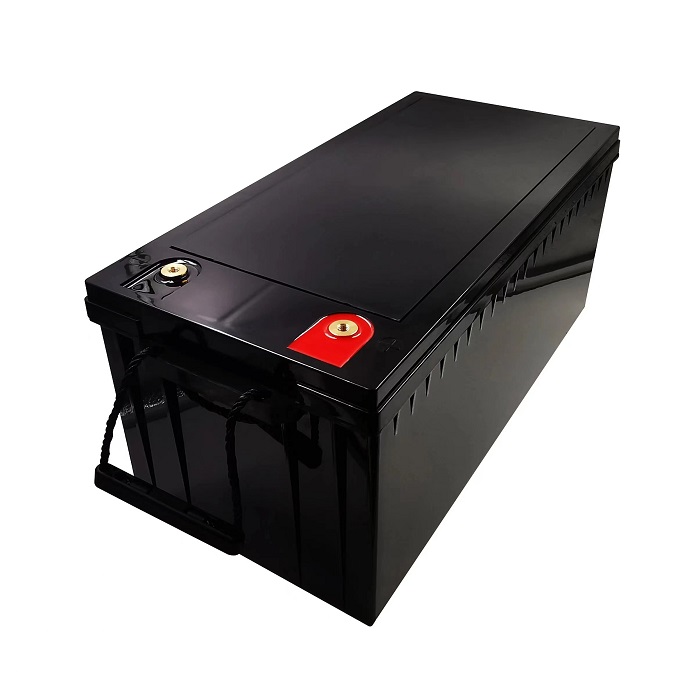

Product Pictures:
