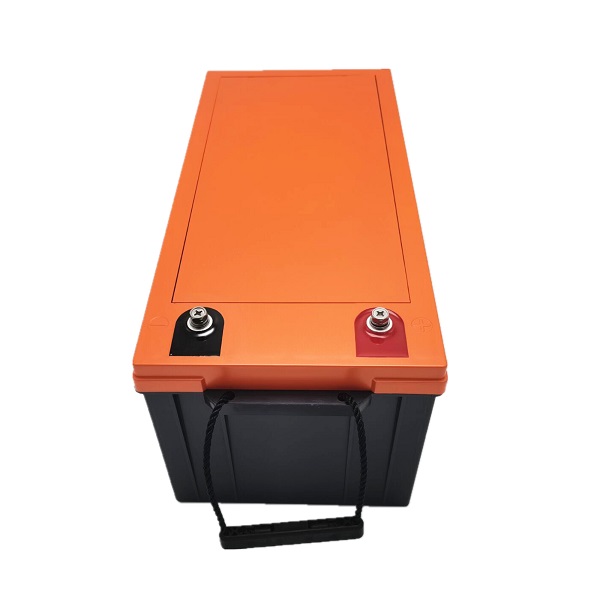

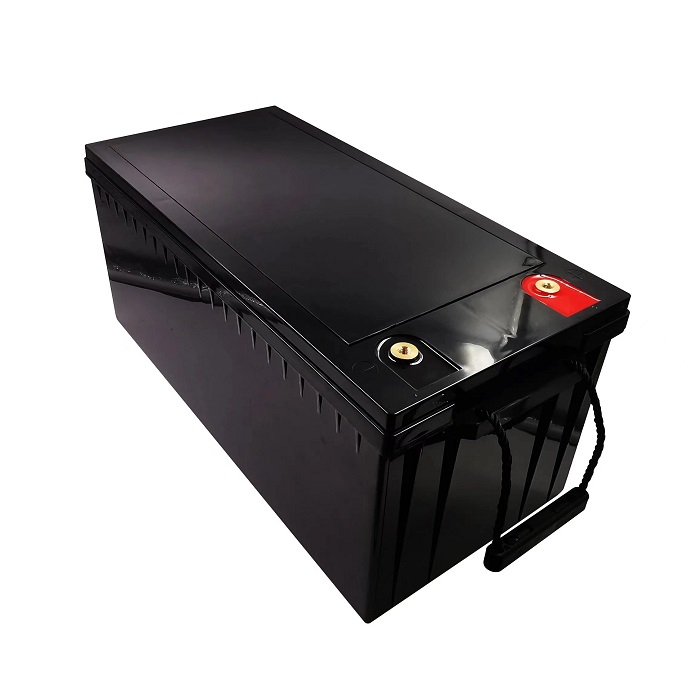

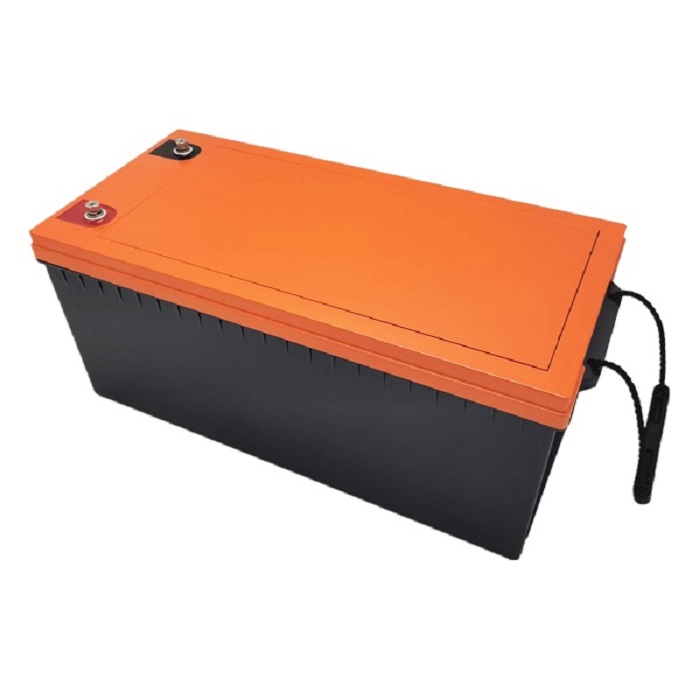

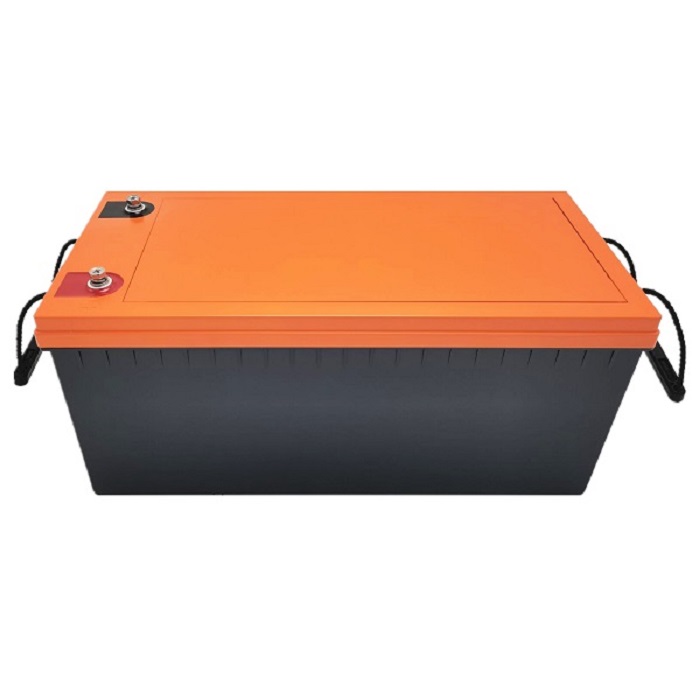

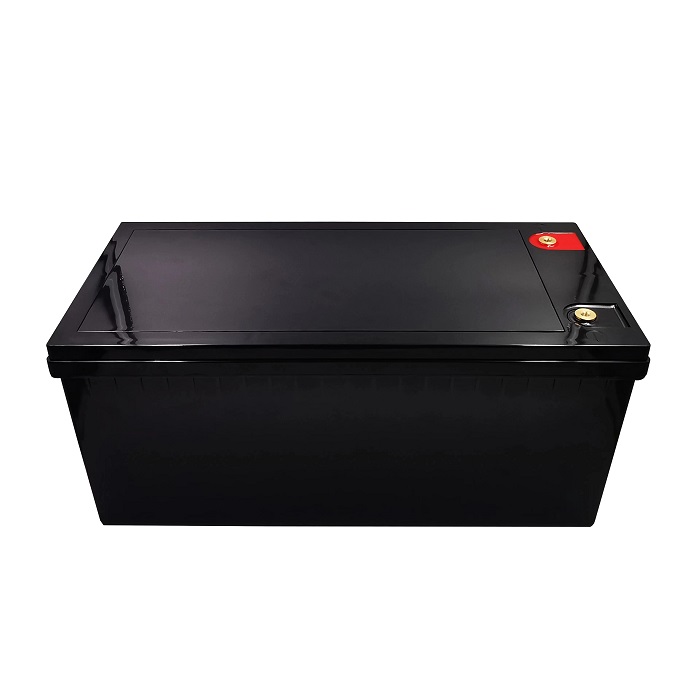

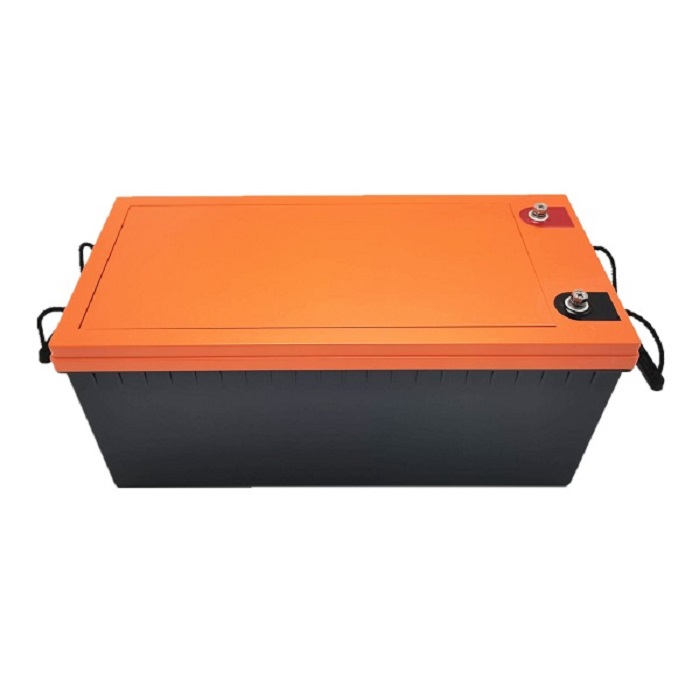

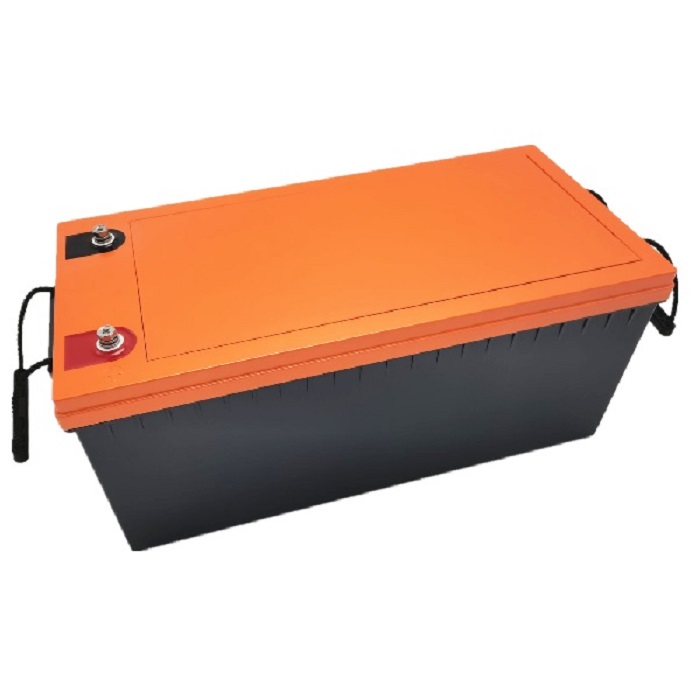

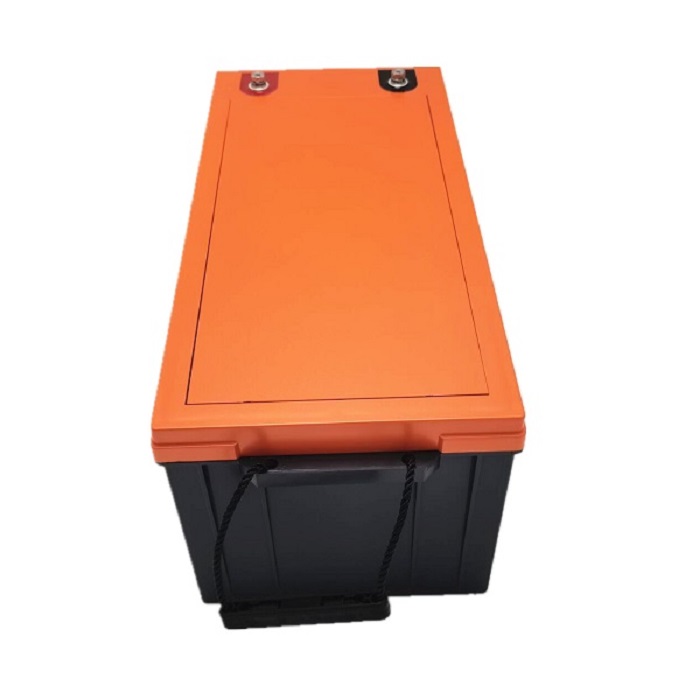

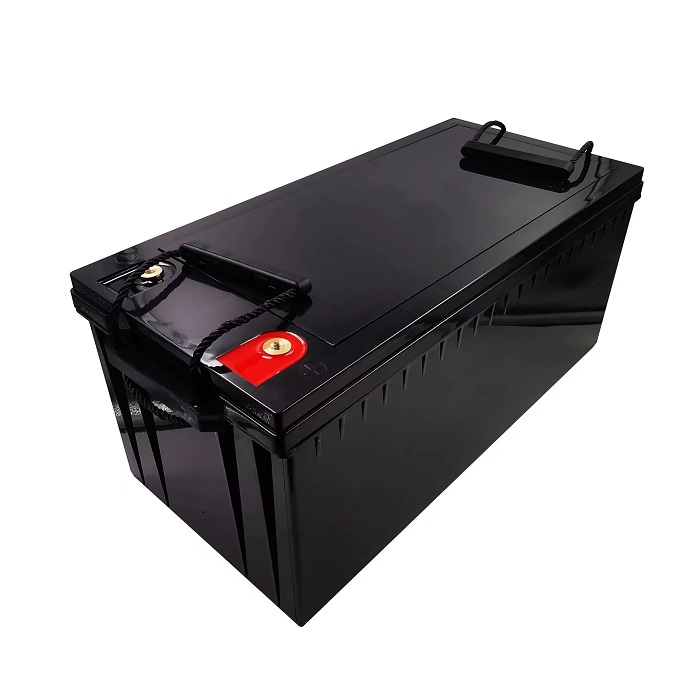

Trolling motor battery 36v 100ah

Energy: 3840Wh
Working Current:100A(Max.)-300A(Peak)
Cycle Life: > 5000 cycles
Warranty: 5 Years
Product description: We're professional trolling motor batteries manufacturer and supplier in China, specialized in providing high quality lithium batteries for trolling motors and marine with competitive price. Our troll
INQUIRY

Trolling motor battery lifepo4 lithium battery 36v 100ah with smart battery management system (BMS) 5000+cycles 5 years warranty OEM with factory price

We're professional Lithium batteries manufacturer and supplier in China, specialized in providing high quality lithium batteries for trolling motors and marine with competitive price. Our trolling motor batteries include Lifepo4 12V, 24V, 36V series, which can not only drop-in-easy fro all kinds of trolling motors, but also can widely use for solar energy, RVs, VANs, yachts, fishing boats, and so on. All of our lithium batteries are made with grade A EV cells and smart BMS, promise 5000 cycles, 5 years warranty. We warmly welcome you to become a global dealer of our batteries. We can provide OEM service with your brand and offer competitive price for you to enlarge your maket share.

Please feel free to contact us for quote or cusotmization service

via email: sales@hi-powerbattery.com,

or via MOB/WhatsApp/WeChat: +86 19866617211 .

Specifications:

Model	LiFePO4 Battery 36V 100Ah
Nominal Voltage	38.4V
Nominal Capacity	100Ah
Energy	3840Wh
Cycle Life	>5000 cycles
Months Self Discharge	<3%
Efficiency of Charge	100% @0.5C
Efficiency of Discharge	96~99% @0.5C
BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Charge Voltage	42.6-43.8V
Charge Mode	0.2C to 43.8V, then 43.8V,charge current to 0.02C (CC/CV)
Charge Current	10A
Max. Charge Current	100A
Max Continuous Discharge Current	100A
Peak Discharge Current	250A 1-3S
Discharge Cut-off Voltage	30V±0.5V
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class	IP65
Housing	ABS Plastic Case
Approx. Dimensions	520x269x220mm (20.47''x10.59''x8.66'')
Approx. Weight	32kgs (70.55lbs)
