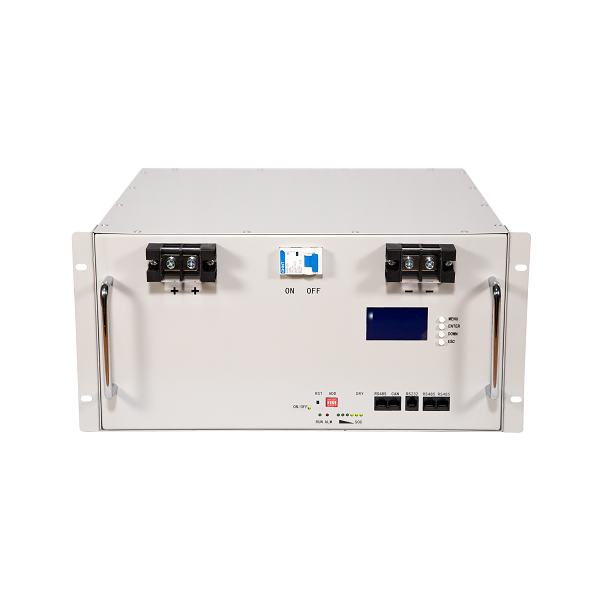

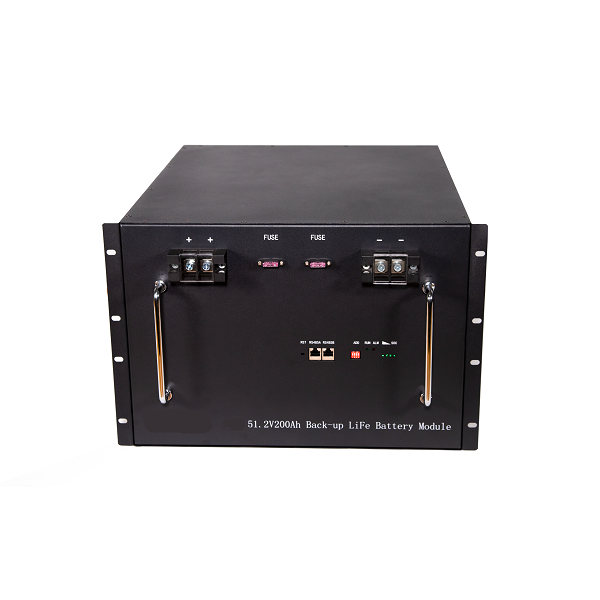

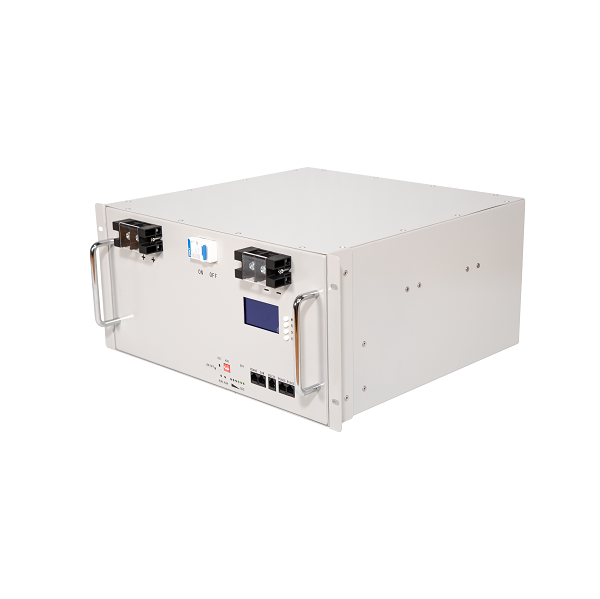

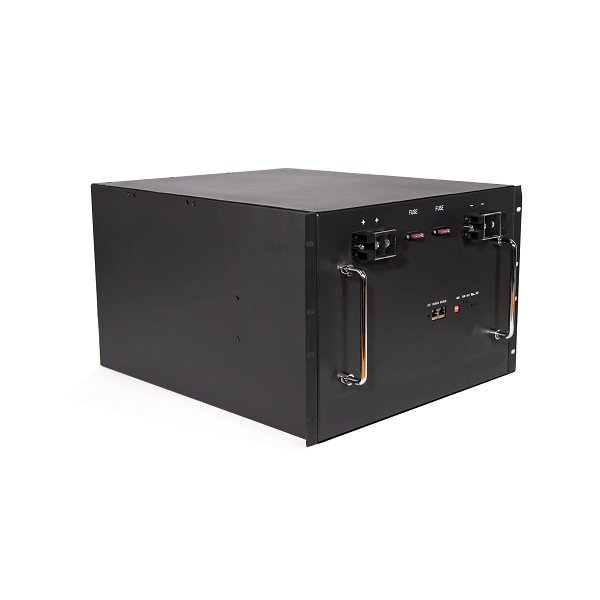

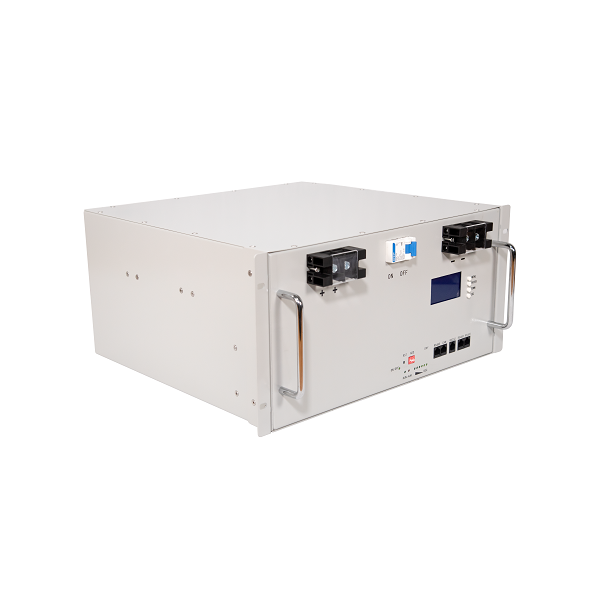

Rack-Mounted LiFePO4 Batteries

LiFePO4 48V 200Ah

51.2V 48V 200Ah LiFePO4 Lithium Battery for Solar Energy Storage Application

Specifications

Electrical Characteristics
Nominal Voltage	51.2V
Nominal Capacity	200Ah
Minimum Capacity	200Ah
Energy	102400Wh
Cycle Life	3000 cycles
Months Self Discharge	<3%
Efficiency of Charge	100% @0.5C
Efficiency of Discharge	96~99% @0.5C
BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Communication Port	CAN, RS485
Standard Charge and Discharge
Charge Voltage	57.6-58.4V
Charge Mode	0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)
Charge Current	40A
Max. Charge Current	100A
Charge Voltage	57.6-58.4V
Max Continuous Discharge Current	100A (Can be customized)
Peak Discharge Current	250A 1-3S
Discharge Cut-off Voltage	40V±0.5V
Mechanical
Shell Material	SPCC
Approx. Dimensions	L482（L1442）xW500xH267mm
Approx. Weight	85kgs
Terminal Type	DW38
Environmental
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
IP Class	IP20
