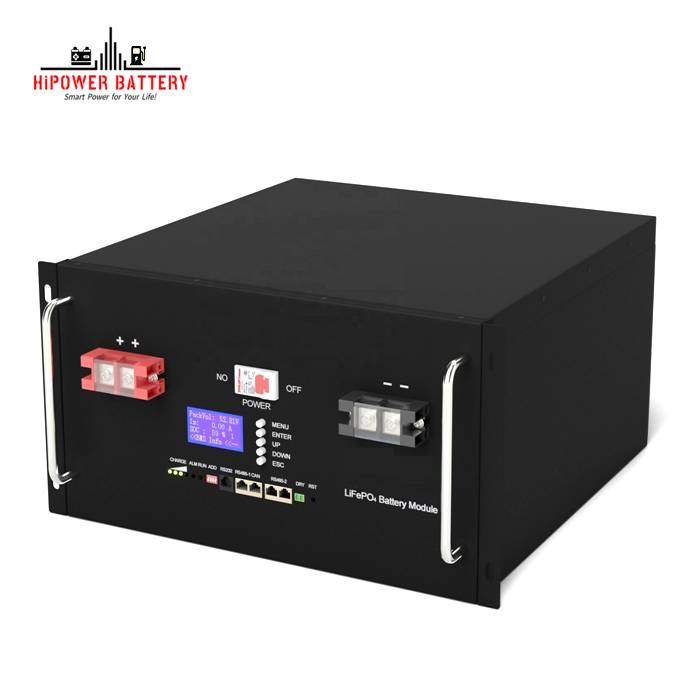

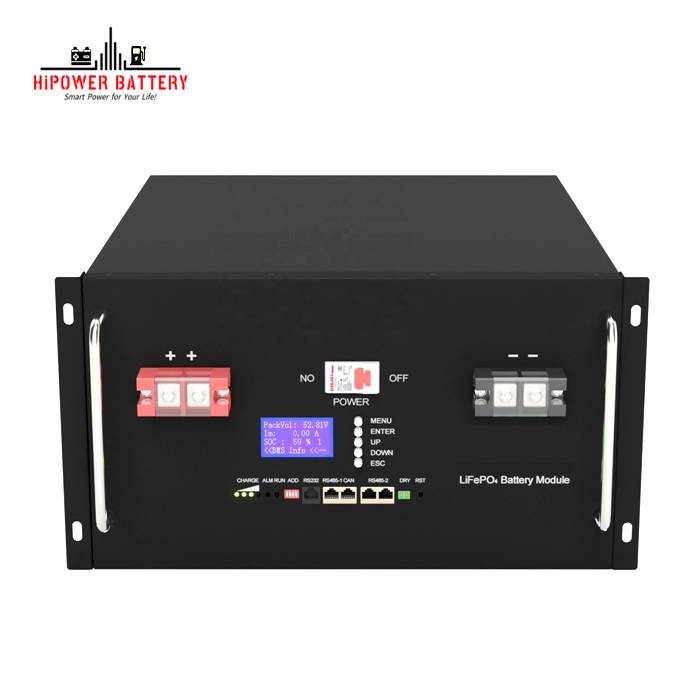

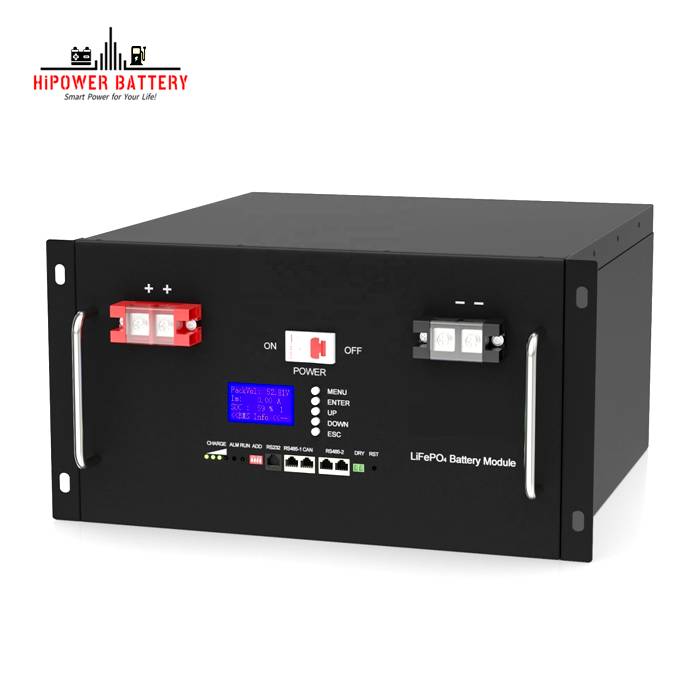

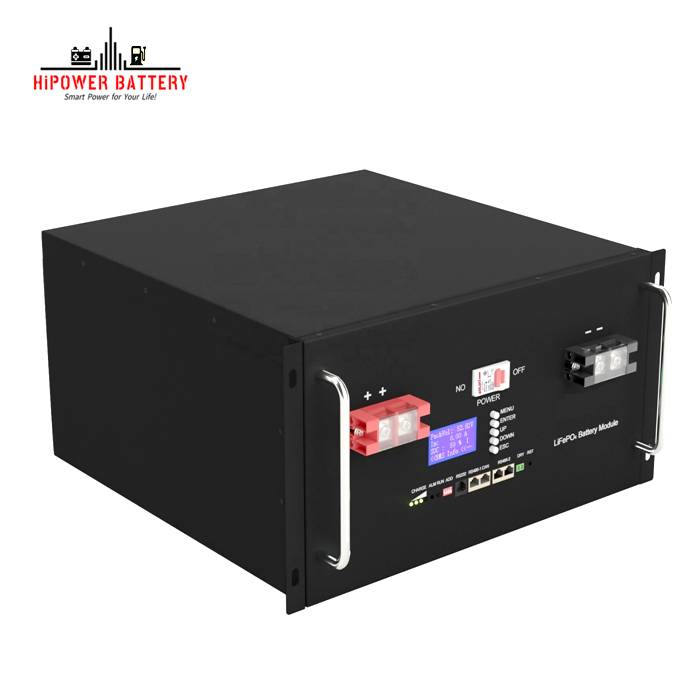

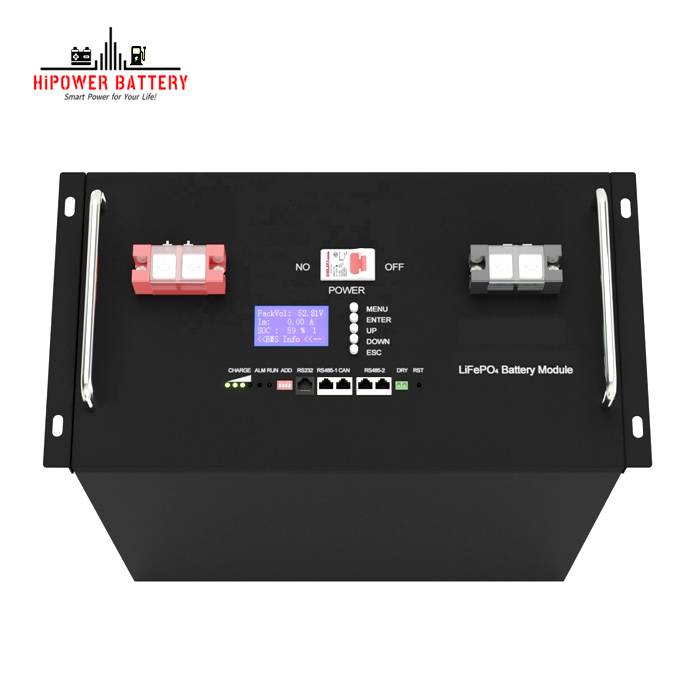

Rack-Mounted LiFePO4 Batteries

Rack mounted battery 48V 250Ah

Nominal Voltage: 48V
Nominal Capacity: 250Ah
Working Current: 200A
Cycle Life: 5000-8000 Cycles
Product description: HiPOWER high quality cheap price rack-mounted type lifepo4 lithium battery pack 48v 250ah for inverter, solar home energy storage application, support oem, odm, offer 5 to 10 years manufacturing warra
INQUIRY

Specification:

Model	LiFePO4 Battery 48V 250Ah
Nominal Voltage	48V
Nominal Capacity	250Ah
Energy	12.0kWh
Capacity @ 40A	375 Min
Charge Voltage	53.25-54.75Vdc
Charge Current	25A
Max. Charge Current	200A
Working Voltage	40.5-54.75Vdc
Discharge Cut-off Voltage	37.5V±0.5V
Max Cont. Discharge Current	200A
Max. Power	12000W
Connection in Parallels	16pcs max.
Approx. Dimensions	482x500x280mm or Customized
Approx. Weight	96kgs
BMS Functions	Over charge, over discharge, over current, short circuit and temperature protection
Communication	RS485, RS232, CAN
IP Class	IP20
Months Self Discharge	< 3%
Efficiency of Discharge	> 96%
Designed Service Life	> 10 Years
Cycle Life	> 5000 Cycles
Service Life	>15 Years
Charge Temperature	0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature	-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature	-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity
Storage Time	5 Months @25 ℃, 3 Months @35 ℃, 1 Months @45 ℃
Lithium Battery Standard	UL1642, IEC, UN38.3, MSDS, CE, FCC, RoHS, etc.

Typical Applications:

1. Solar Energy, Wind Energy

2. Home Energy Storage System

3. Business Center, Building Power Supply

4. UPS/ EPS

Features of HiPOWER LiFePO4 Lithium Batteries:

1. Longer cycle life, 5 times lifetime than lead acid battery.

2. Higher safety, reliability and energy density.

3. Smaller size and lighter weight.

4. Better performance at high and low temperature.

5. Intelligent battery management system (BMS) built-in.

6. Maintenance free.

7. 100% precise quality testing, stable quality and high reliable performance.

8. Environmentally friendly, non-toxic, non-contaminating, no rare metal.

9. Low self-discharge and good discharge performance at low temperature.

10. Easy installation and Operation.

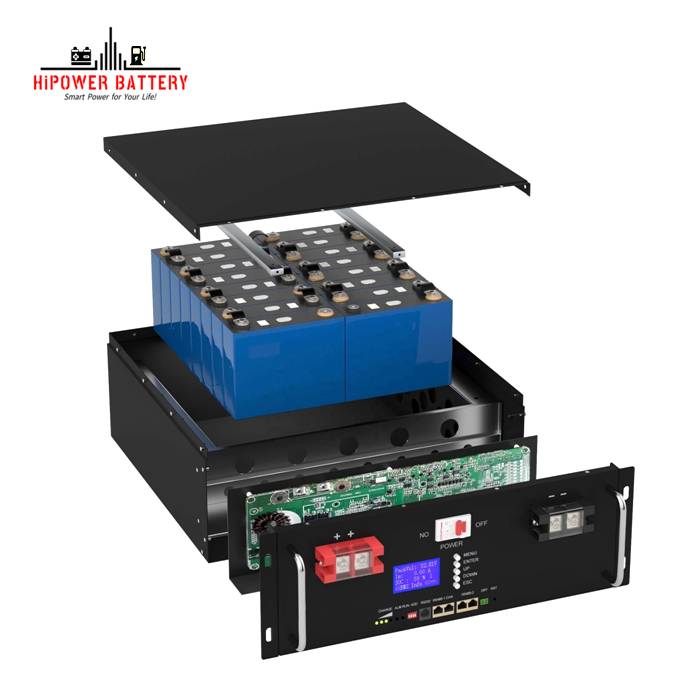

HiPOWER Rack-mounted type Lifepo4 batteries

HiPOWER Lithium Battery Certificates:

HiPOWER Lithium Battery Certificates

HiPOWER Factory Production Lines:

HiPOWER Factory Production Lines

Q & A:

Q1. Do you support OEM / ODM services?
Answer: Yes, of course.

Q2. Can I order samples?
Answer: Yes, we welcome to order samples to test and check the quality.

Q3. Can I print my logo on the product?
Answer: Yes. Please inform us formally before production, and first confirm the design based on our samples.

Q4. Does your battery pack include BMS (Battery Management System)?
Answer: Yes, our battery pack includes BMS, mainly functions are: Over charge, over discharge, over current, short circuit and temperature protection.

Q5. How do you ship the batteries and how long will it take to arrive?
Answer: We can ship the batteries by Sea, by Air and by Express like UPS, DHL, FedEx, etc.
Normally shipping by Sea will take around 25-60 days to arrive; shipping by Air will take around 7-15 days.

Q6. What is your production lead time?
Answer: For battery cells will be around 7-10 days after payment received.
For samples, will be around 20-25 days after payment received.
For bulk orders, will be around 25-35 days after payment received.
