Specification:
|
Model |

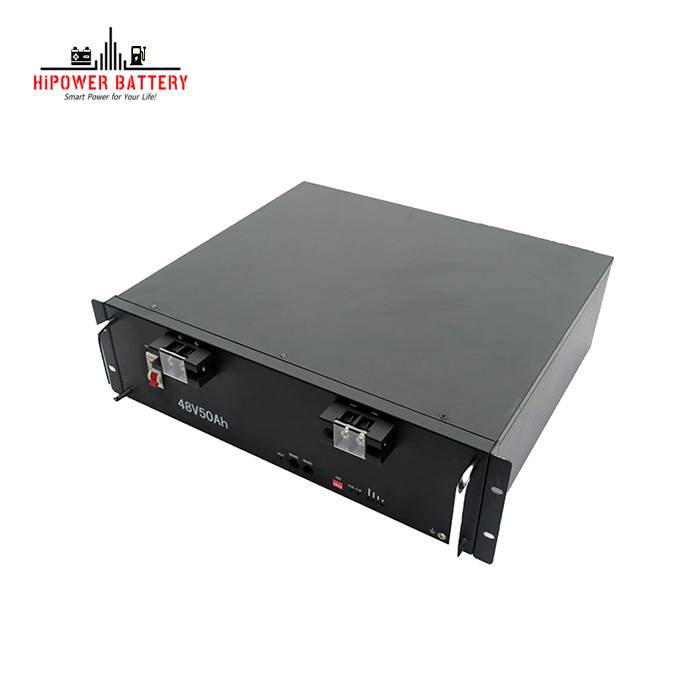

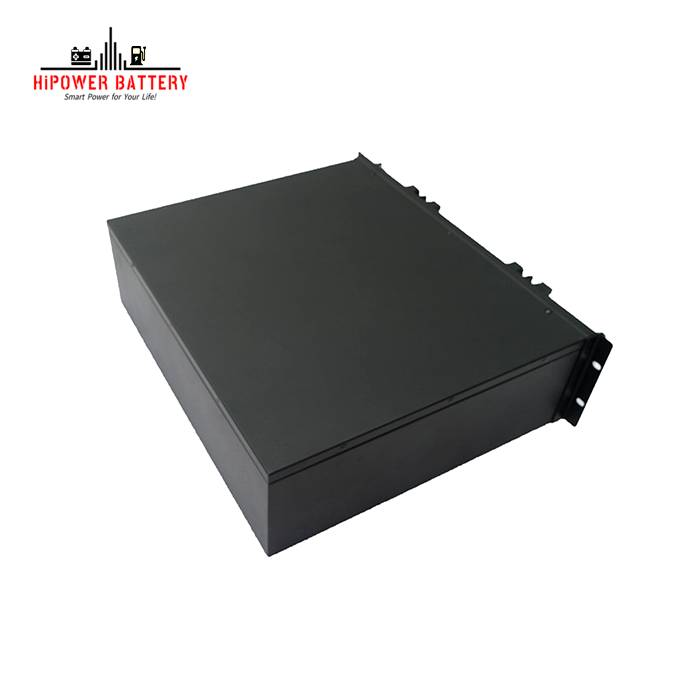

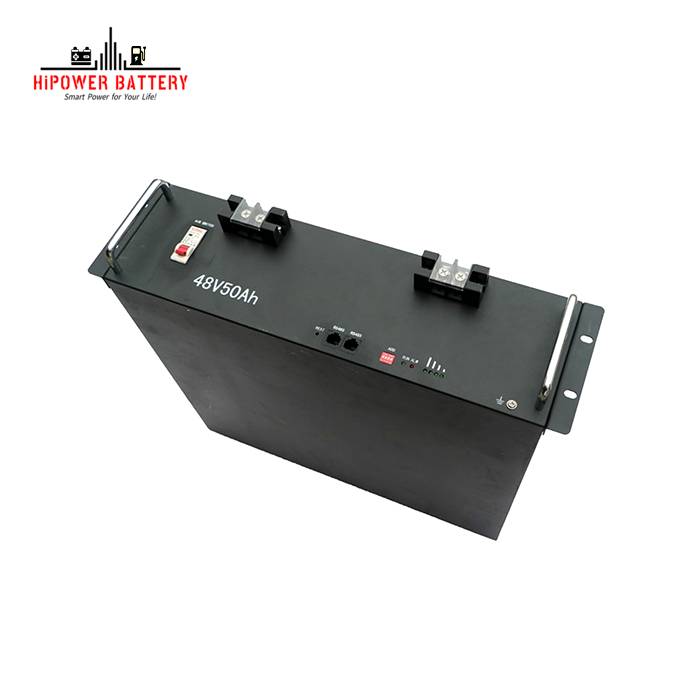

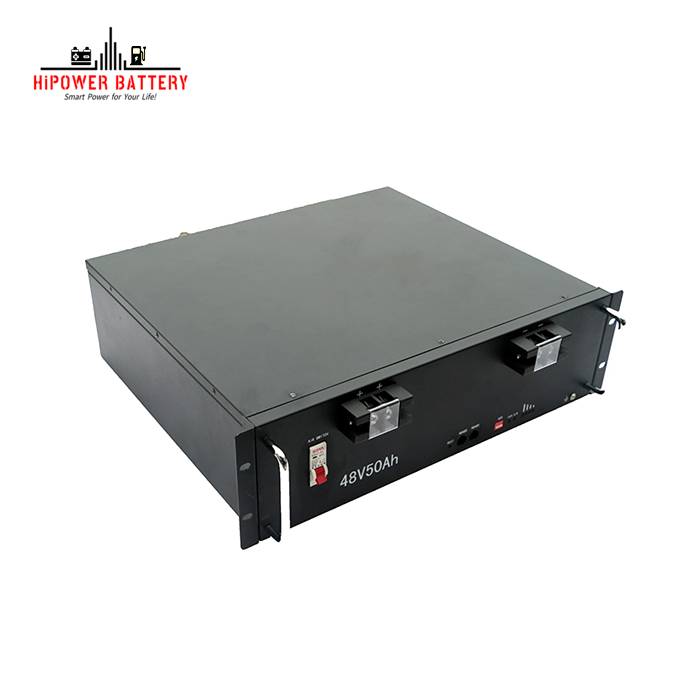

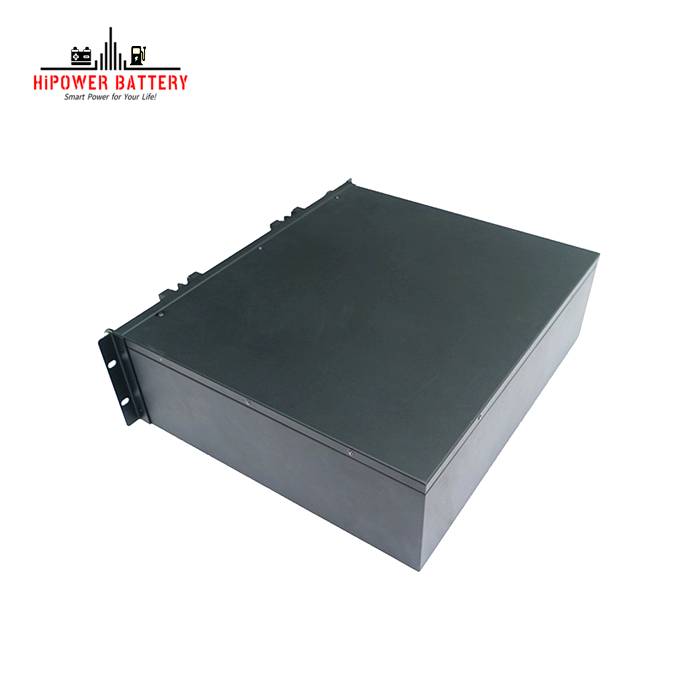

LiFePO4 Battery 48V 50Ah |
|
Nominal Voltage |
48V |
|
Nominal Capacity |
50Ah |
|
Energy |
2.40kWh |
|
Charge Voltage |
53.25-54.75Vdc |
|
Charge Current |
5A |
|
Max. Charge Current |
50A |
|
Working Voltage |
40.5-54.75Vdc |
|
Discharge Cut-off Voltage |
37.5V±0.5V |
|
Max Cont. Discharge Current |
50A |
|
Max. Power |
2400W |
|
Connection in Parallels |
16pcs max. |
|
Approx. Dimensions |
482x420x133mm |
|
Approx. Weight |
24kgs |
|
BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
|
Communication |
RS485, RS232, CAN |
|
IP Class |
IP20 |
|
Months Self Discharge |
< 3% |
|
Efficiency of Discharge |
> 96% |
|
Designed Service Life |
> 10 Years |
|
Cycle Life |
> 5000 Cycles |
|
Service Life |
>15 Years |
|
Charge Temperature |
0 ℃ to 55 ℃ (32F to 131F) @60±25% Relative Humidity |
|
Discharge Temperature |
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity |
|
Storage Temperature |
-20 ℃ to 45 ℃ (-4F to 113F) @60±25% Relative Humidity |
|
Storage Time |
5 Months @25 ℃, 3 Months @35 ℃, 1 Months @45 ℃ |
|
Lithium Battery Standard |
UL1642, IEC, UN38.3, MSDS, CE, FCC, RoHS, etc. |
Typical Applications:
1. Solar Energy, Wind Energy
2. Home Energy Storage System
3. Business Center, Building Power Supply
4. UPS/ EPS
Features of HiPOWER LiFePO4 Lithium Batteries:
1. Longer cycle life, 5 times lifetime than lead acid battery.
2. Higher safety, reliability and energy density.
3. Smaller size and lighter weight.
4. Better performance at high and low temperature.
5. Intelligent battery management system (BMS) built-in.
6. Maintenance free.
7. 100% precise quality testing, stable quality and high reliable performance.
8. Environmentally friendly, non-toxic, non-contaminating, no rare metal.
9. Low self-discharge and good discharge performance at low temperature.
10. Easy installation and Operation.
